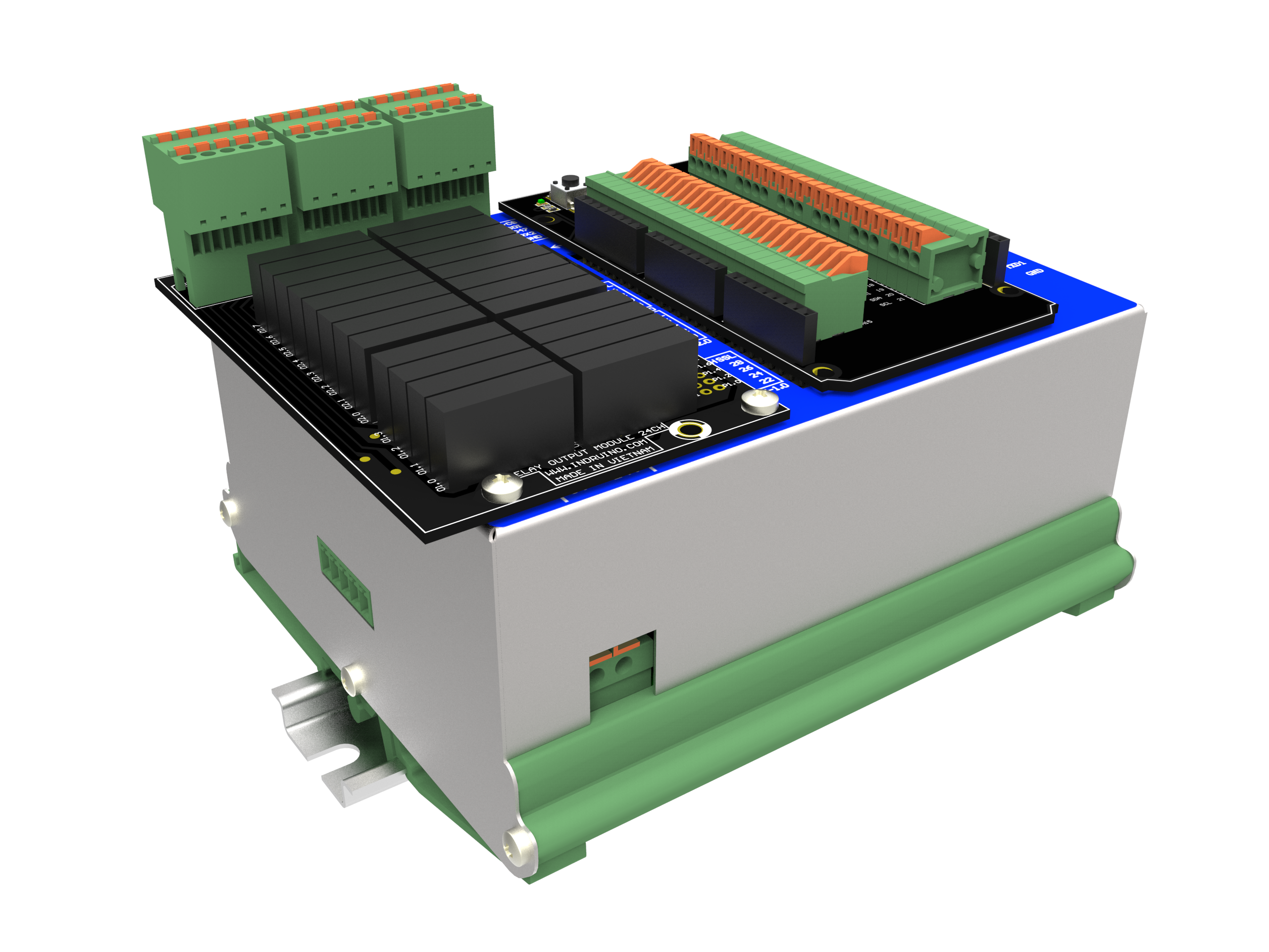

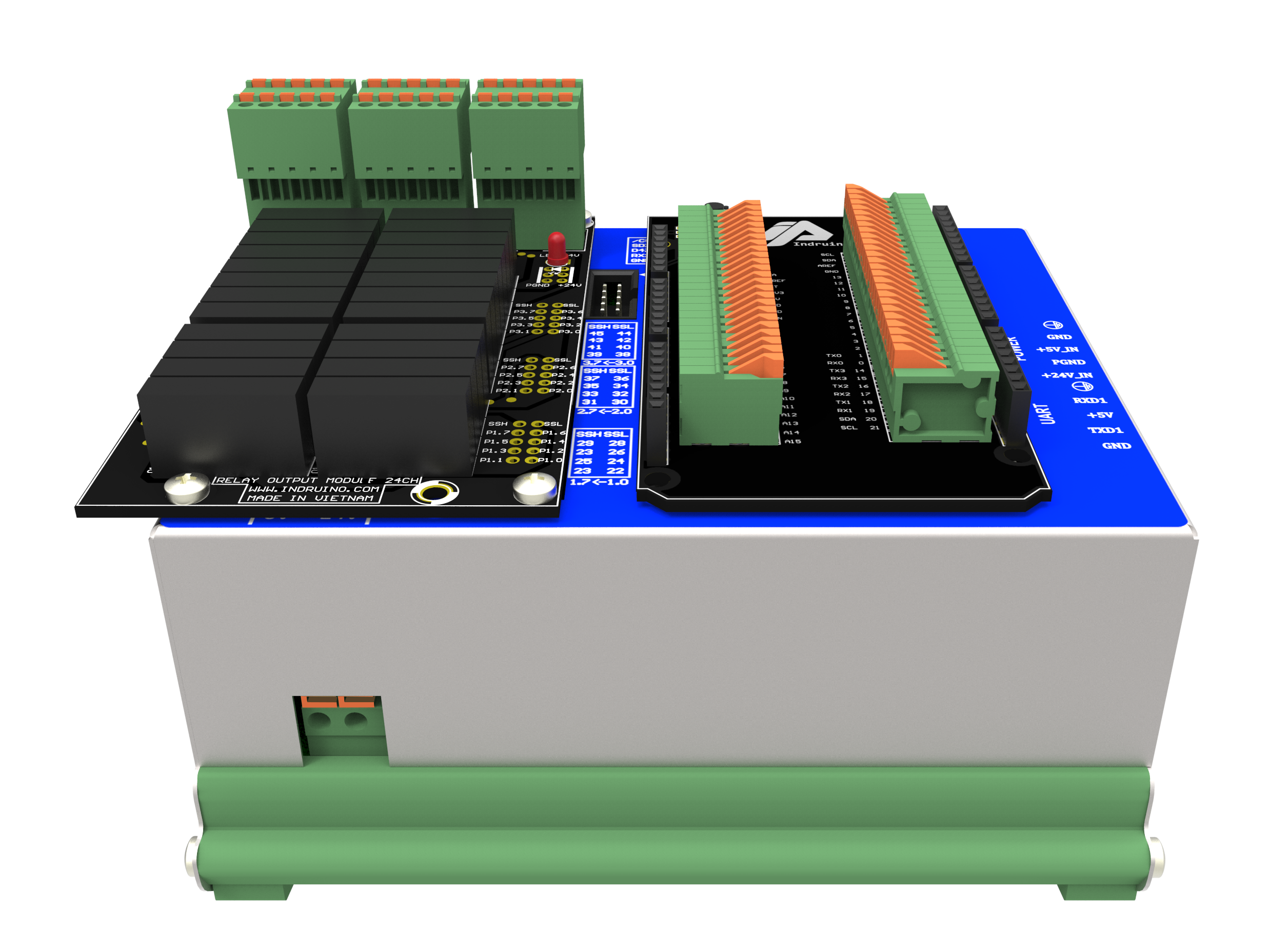

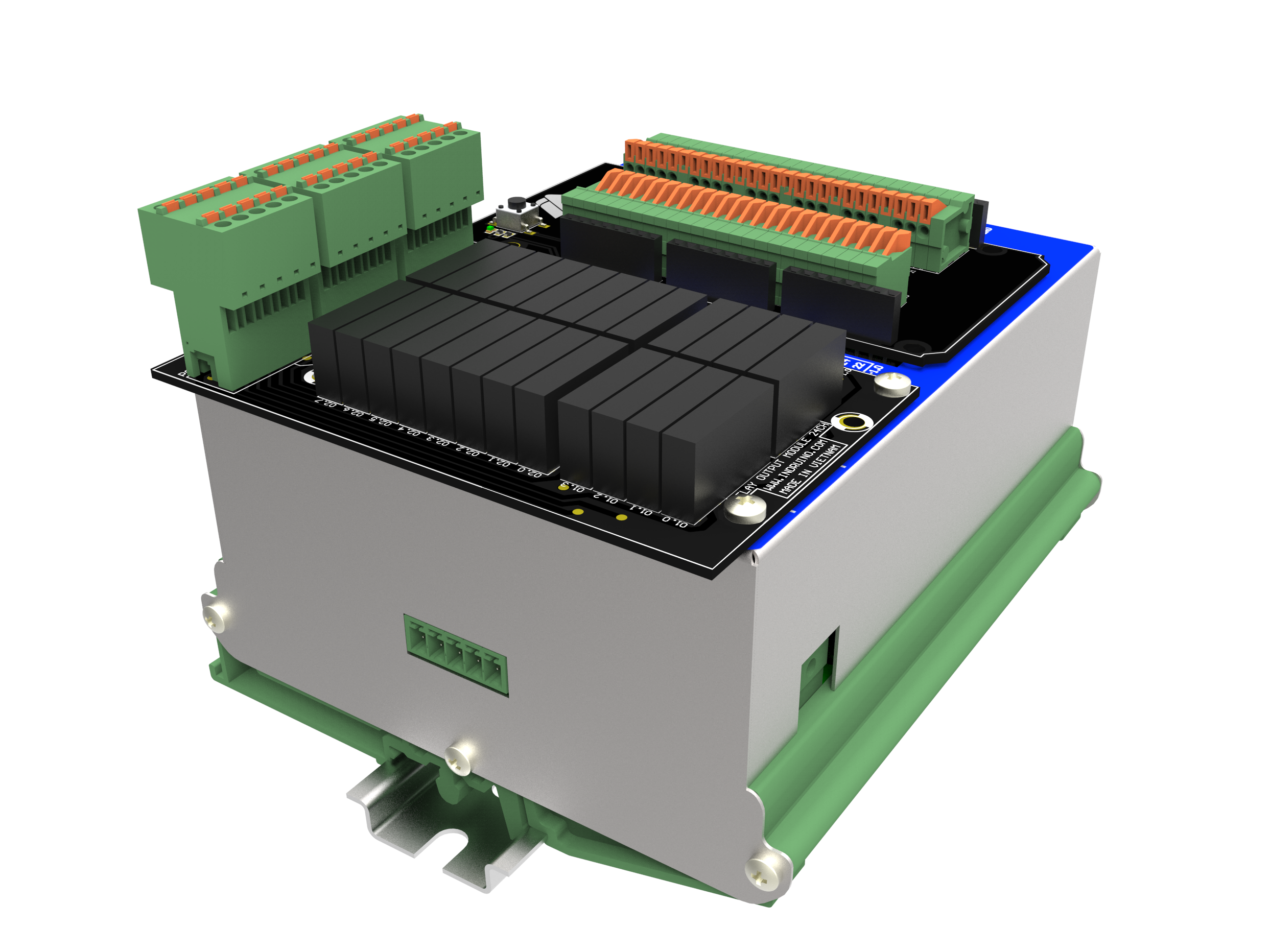

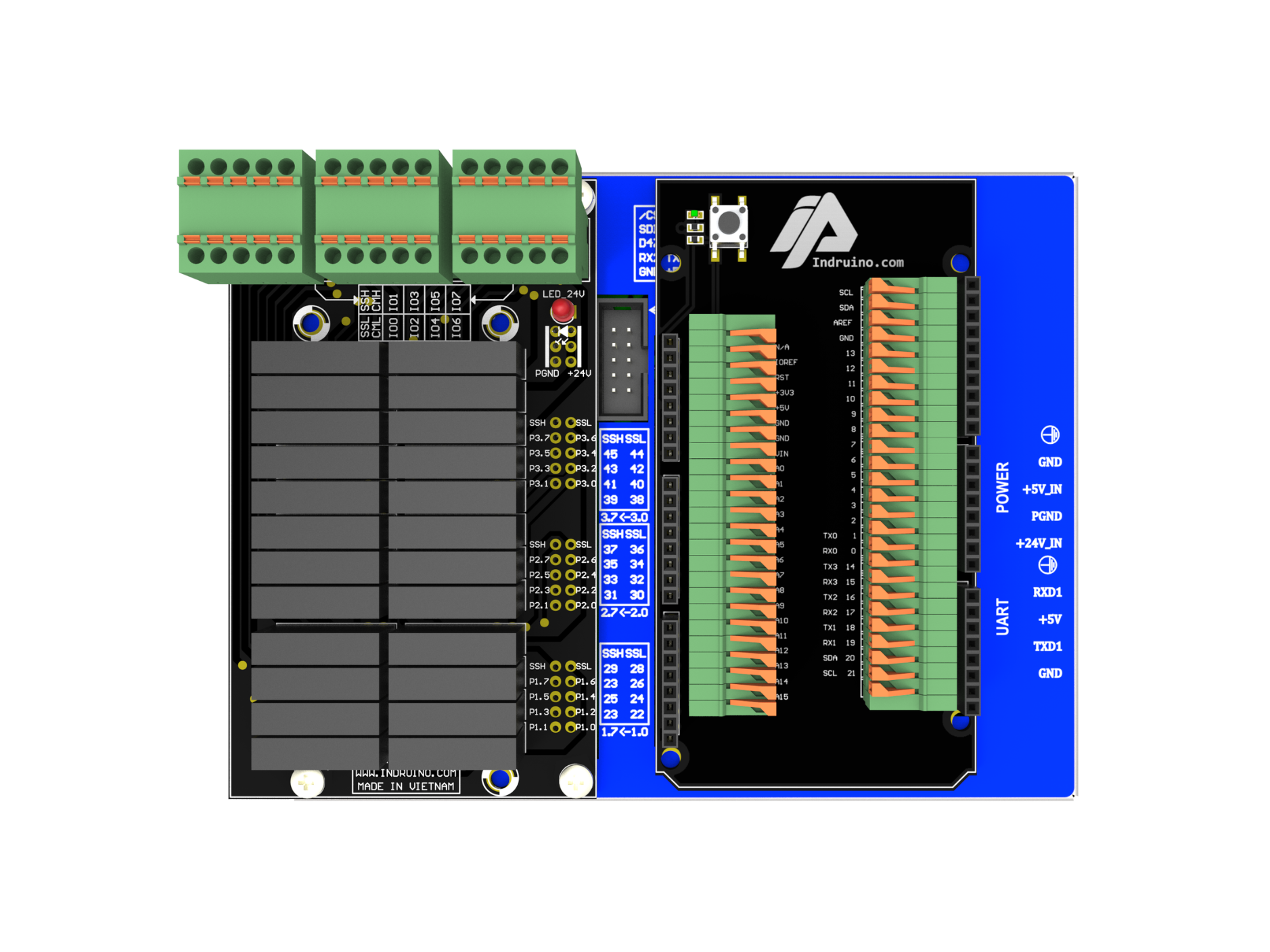

iCB-ADVANCE-03

Description

iCB-ADVANCE-03

- This is the perfect combination of:

1. Power Supply DC / DC-24V / 5V-ISO: iPower-ISO 5V/2A

2. CPU iMega2560-ISO

3. Connector shield

4. Adapter board

5.  Base board

6. Module input 8ch mini (option) or

+ Module output 8ch mini (option) or

+ Module relay (option)

- Packed with industry-standard Dinrai, ready to use in systems requiring high stability and dust resistance.

Technical Specifications :

- Power supply : 24V

- Output voltage : 5V/2A

- Assembly method : Dinrail

- Dimensions (LxWxH) : 123 x 124 x 90 mm

- Other features : Integrated inlet & outlet power port.

- Integrated UART port for extensioning I/Os.

- Supports Arduino pinout , spring terminal and IDC socket to connect with other devices.

- Include:

+ Power Supply DC / DC-24V / 5V-ISO: iPower-ISO 5V/2A

+ CPU iMega2560-ISO

+ Connector shield

+ Adapter board

+  Base board

+ Module input 8ch mini (option) or

+ Module output 8ch mini (option) or

+ Module relay (option)

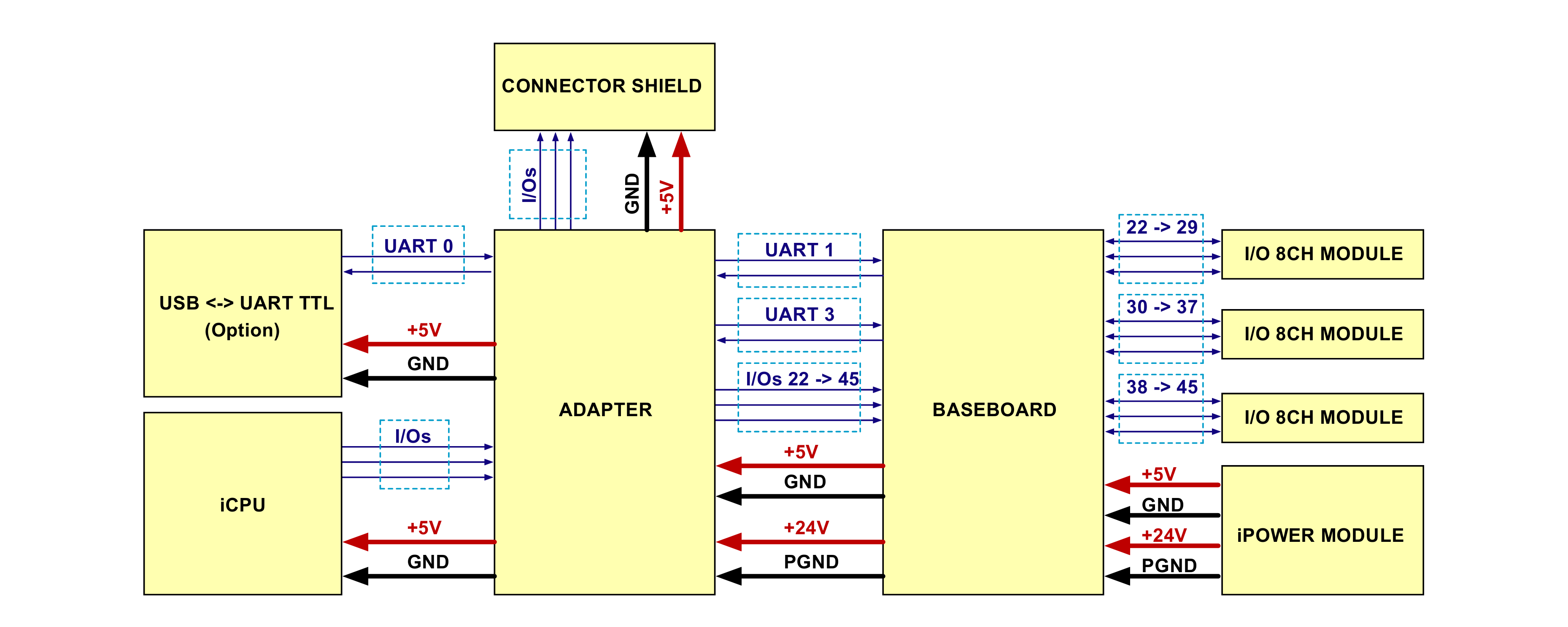

Block Diagram :

Download :  https://drive.google.com/file/d/1Npj3OSl7FYkKWxw2QYYsvnvciCArRg3N/view?usp=sharing
