iCB-BASIC-03

Description

iCB-BASIC-04

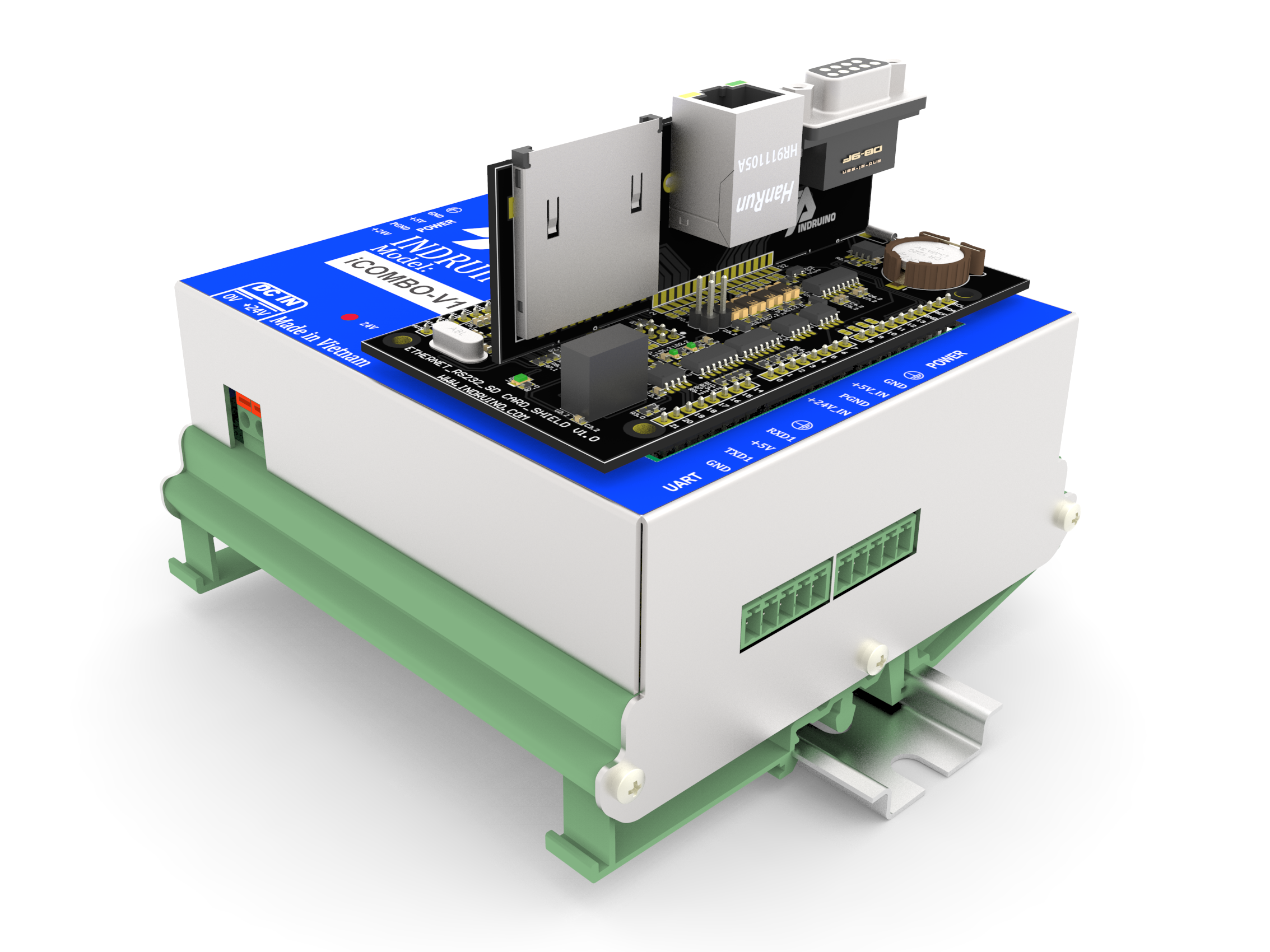

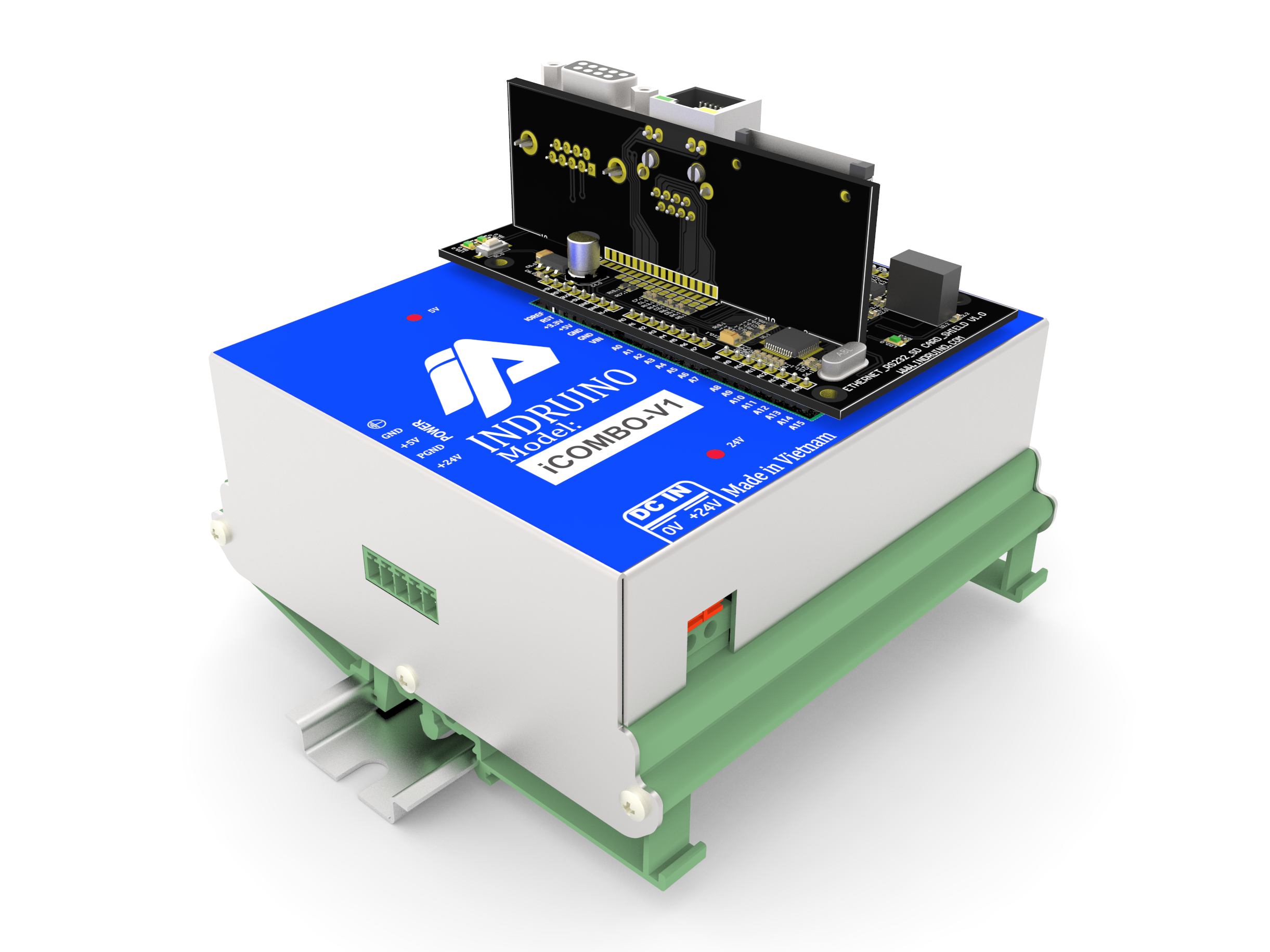

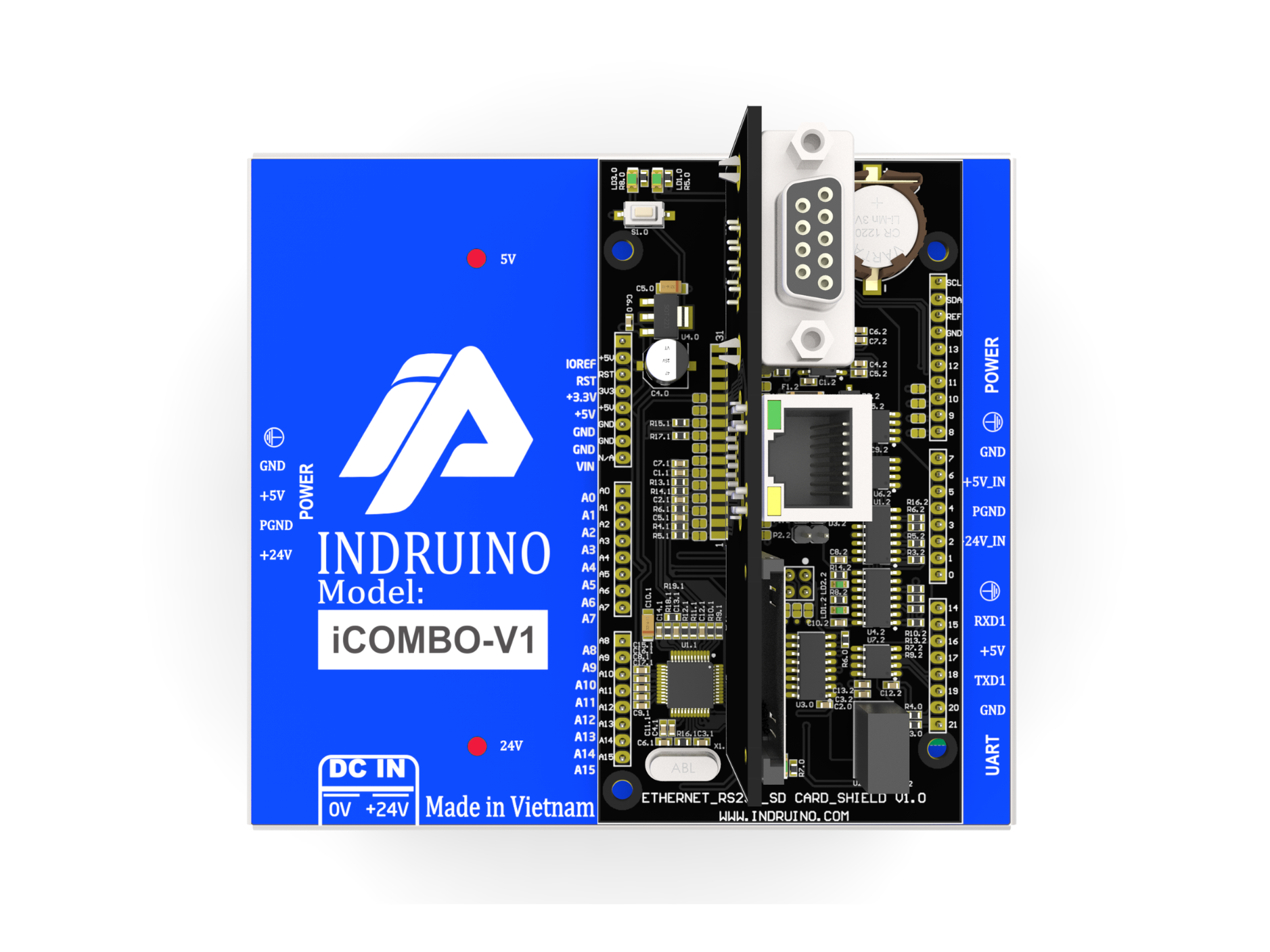

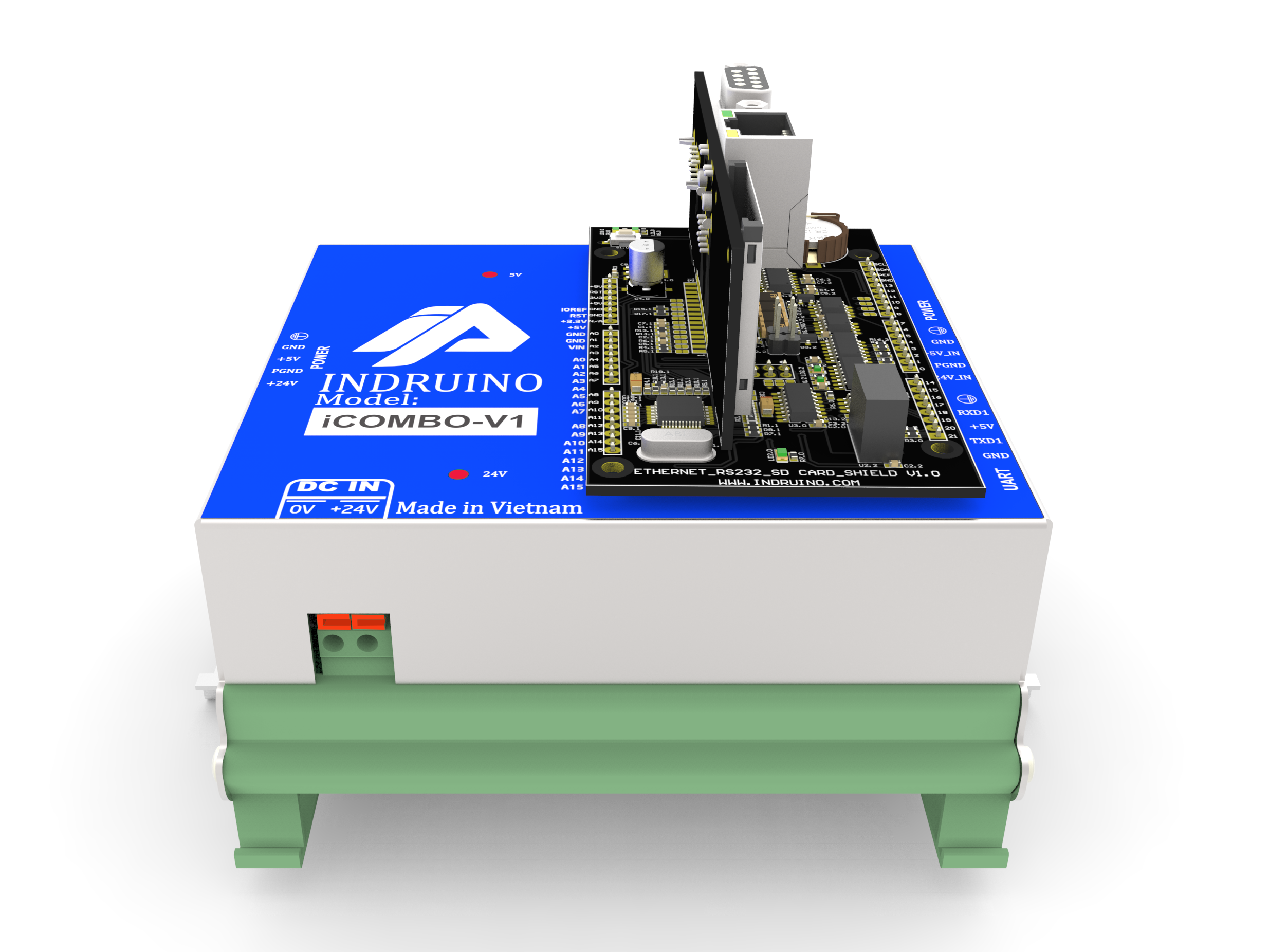

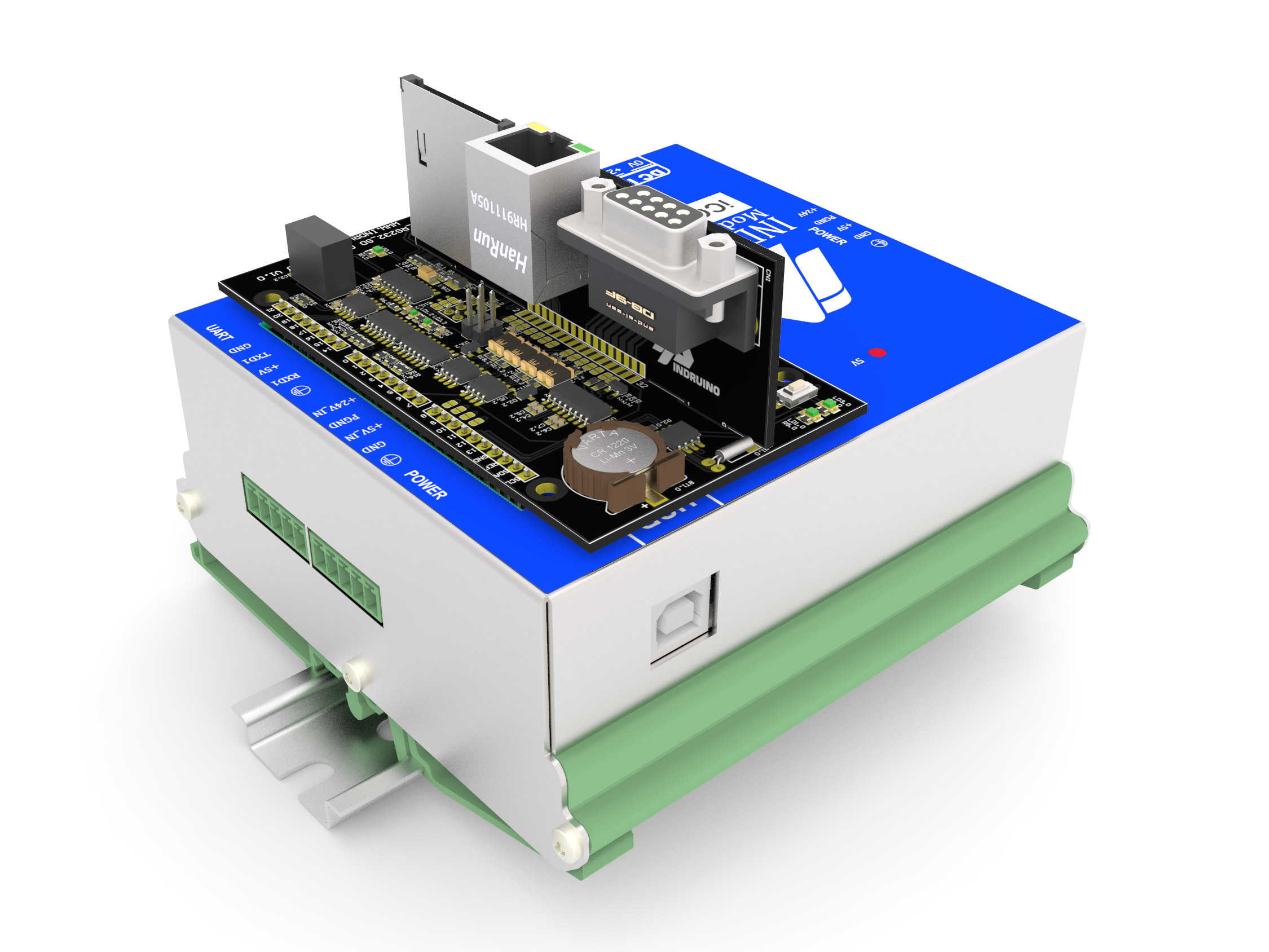

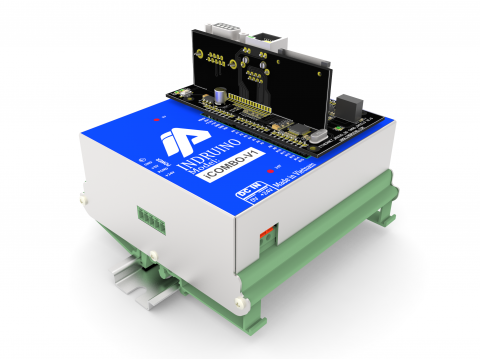

Indruino Combo Basic 03 is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Indruino standard Baseboard & Adapter, stainless steel cover box and ethernet, RS232, RTC, SD card shield. Packaged with the industry standard Dinrail stand, the box to form a complete, ready-to-use solution in systems that require high stability, dust resistance.

Technical Specifications :

- Power supply: 24V
- Output voltage: 5V/2A
- Assembly method: Dinrail

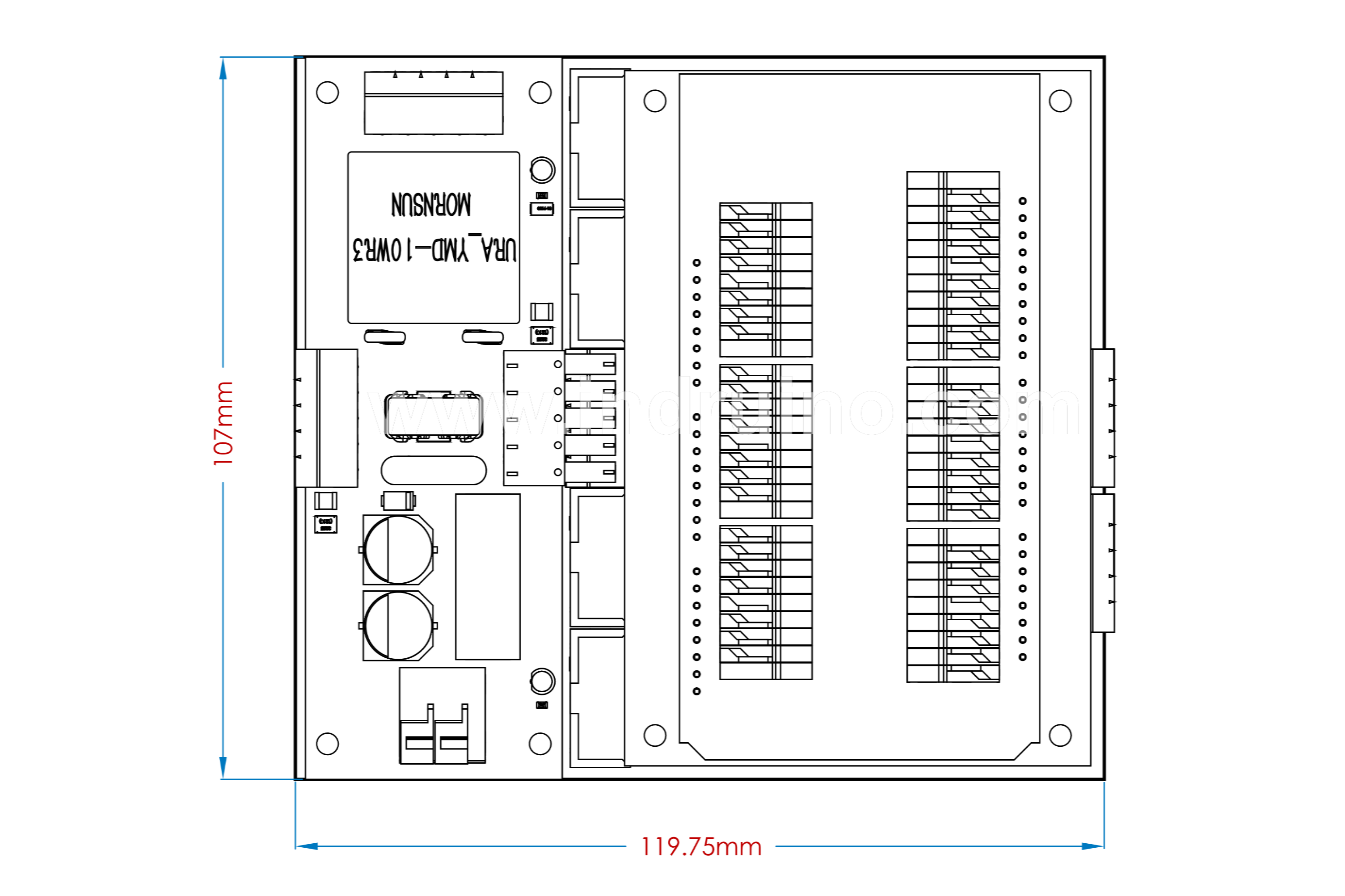

- Dimensions (LxWxH) : 123 x 124 x 120 mm
- Other features : Integrated inlet & outlet power port.
- Integrated UART port for extensioning I/Os.
- Includes:
     + iPower-ISO 5V/2A
     + CPU iMega2560-ISO
     + Isolated RS232-Ethernet-RTC-SD Card Shield
     + Adapter board
     + Base board
     + Stainless steel protection cover

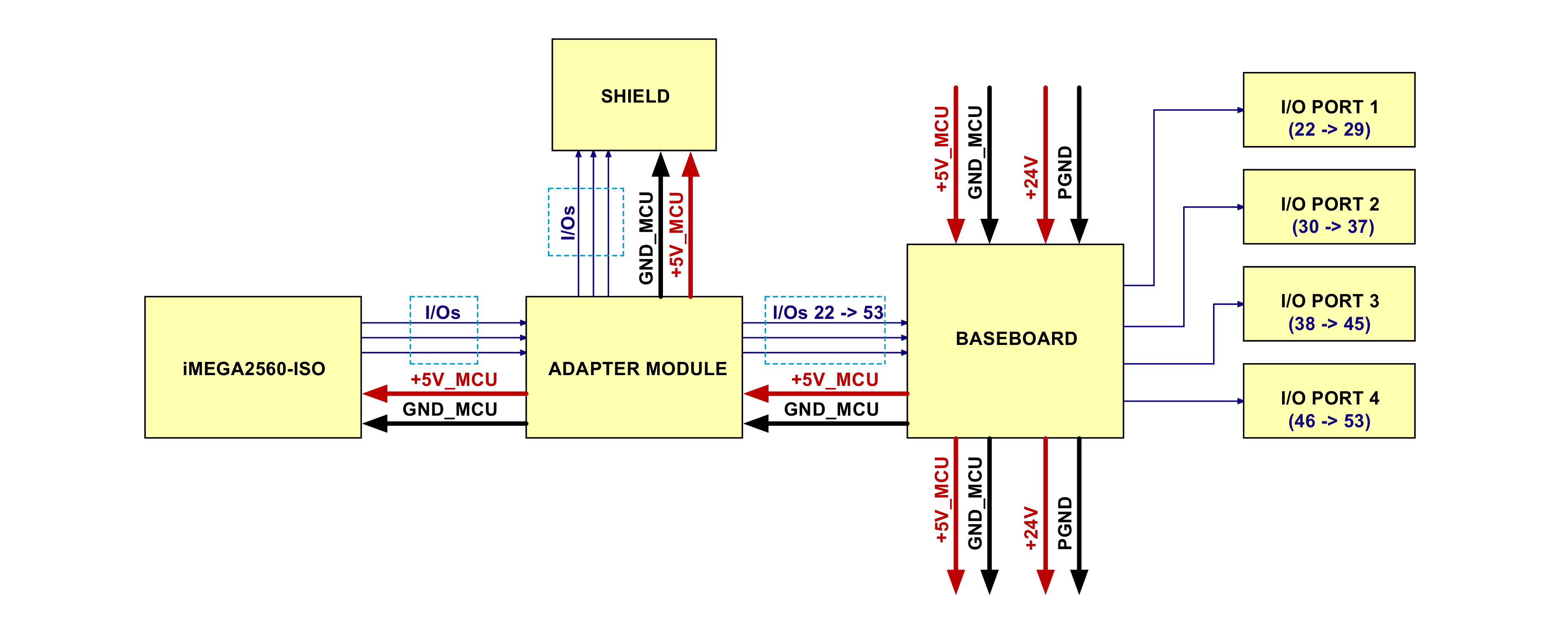

Block Diagram :

Download : https://drive.google.com/file/d/1GW5y9l8Rg4eNflS7k88nemR-_khfeQ6x/view?usp=sharing
