iCPU-BASIC

Description

iCB-BASIC

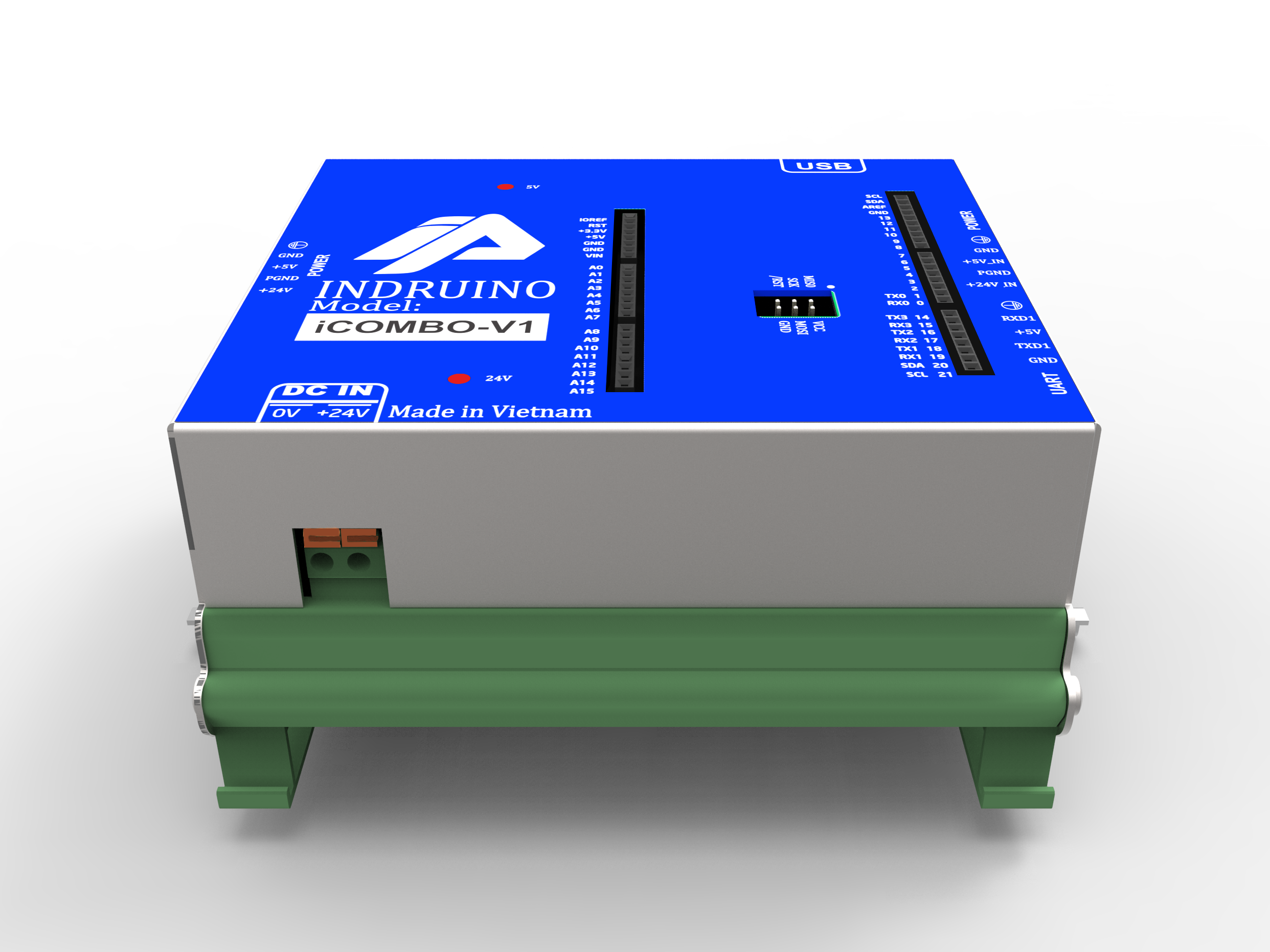

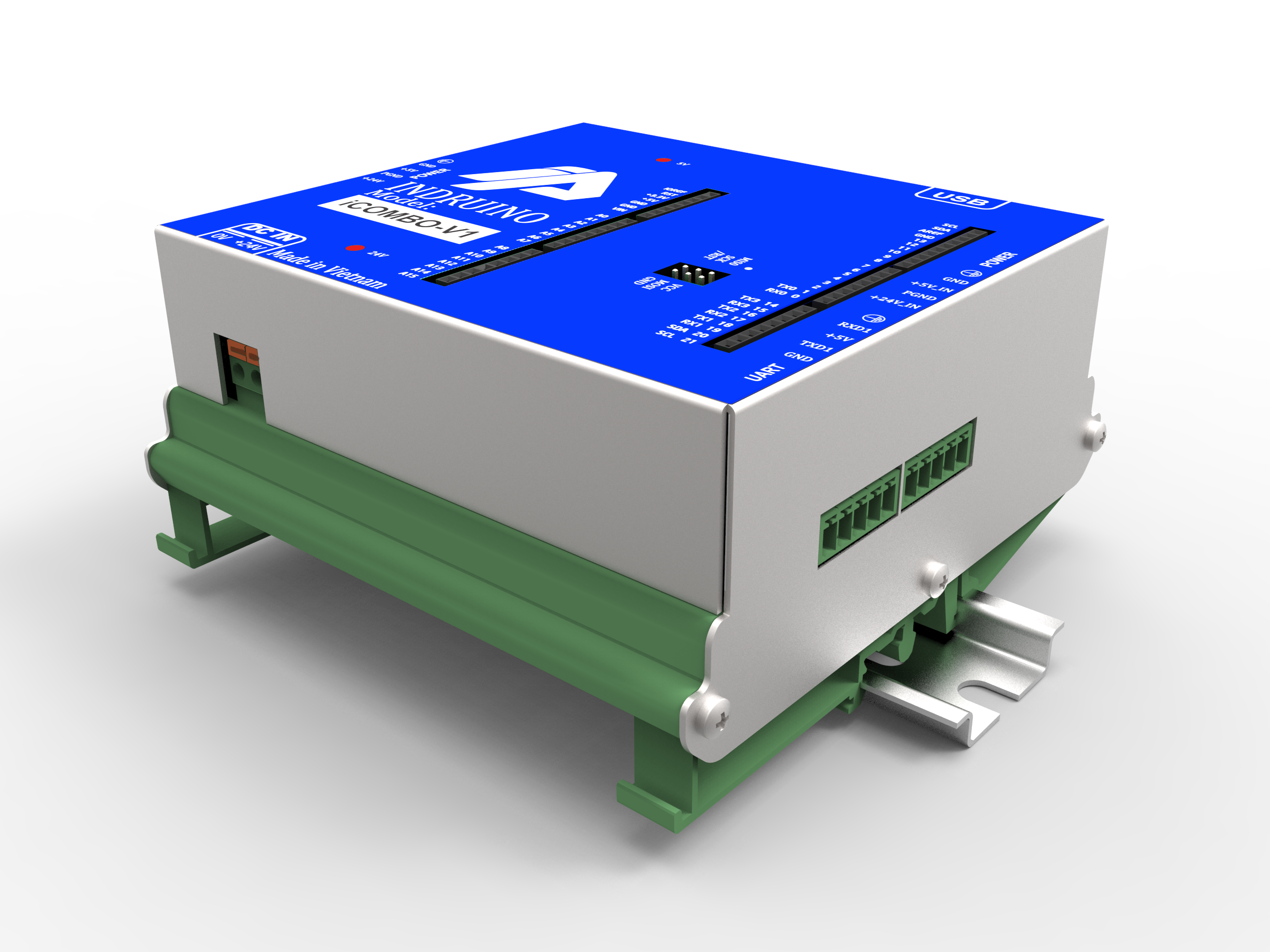

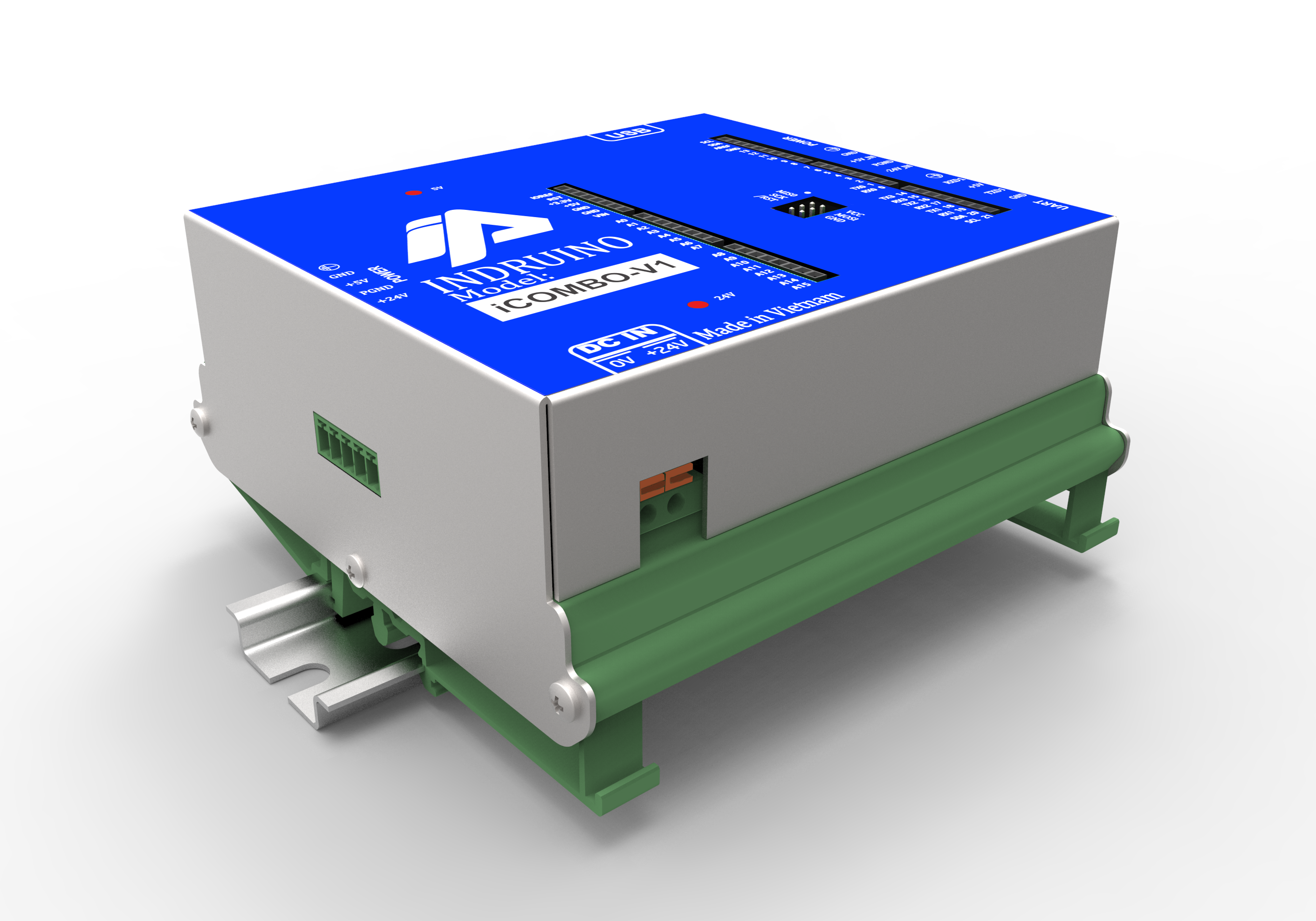

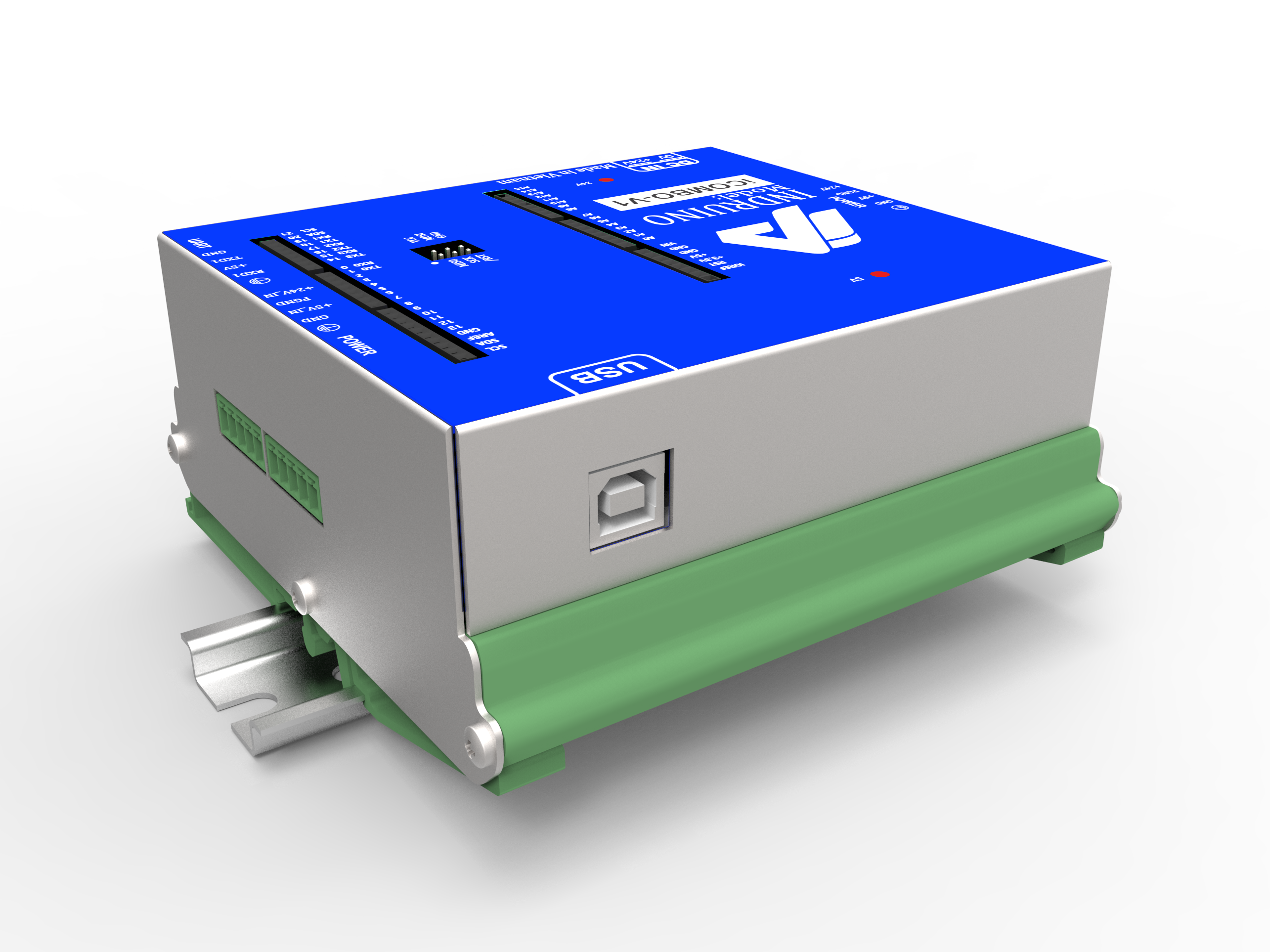

Indruino Combo Basic 01 is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Indruino standard Baseboard & Adapter, stainless steel cover box. Packaged with the industry standard Dinrail stand, the box to form a complete, ready-to-use solution in systems that require high stability, dust resistance.

Technical Specifications :

- Power supply : 24V

- Output voltage : 5V/2A

- Assembly method : Dinrail

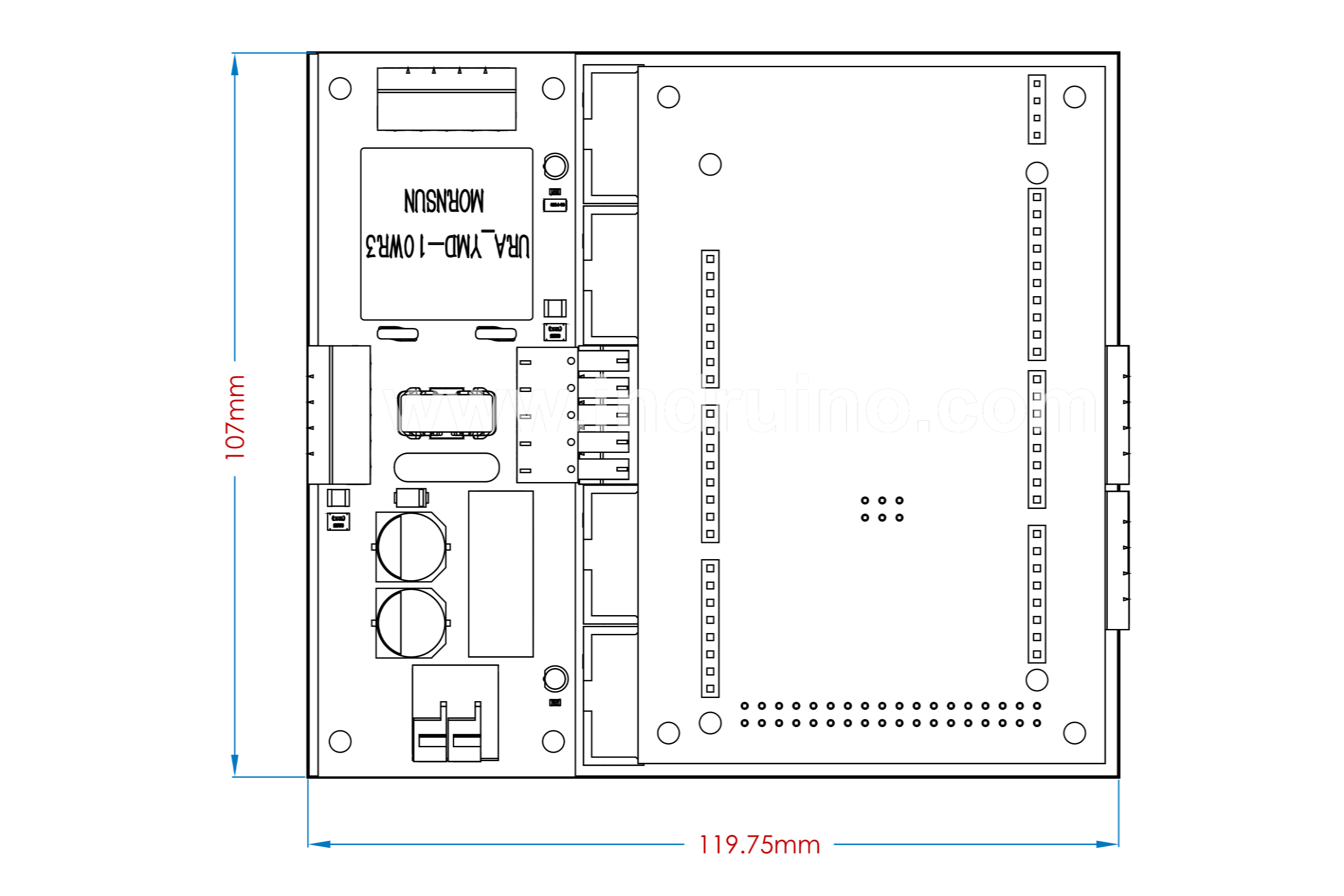

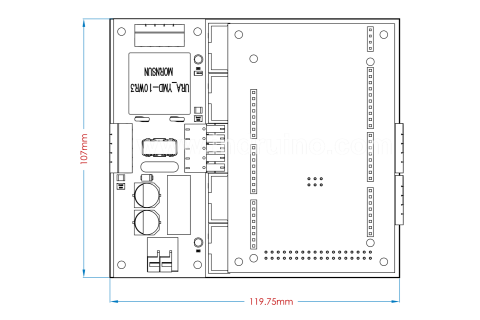

- Dimensions (LxWxH) : 123 x 124 x 80 mm

- Other features : Integrated inlet & outlet power port.

- Integrated UART port for extensioning I/Os.

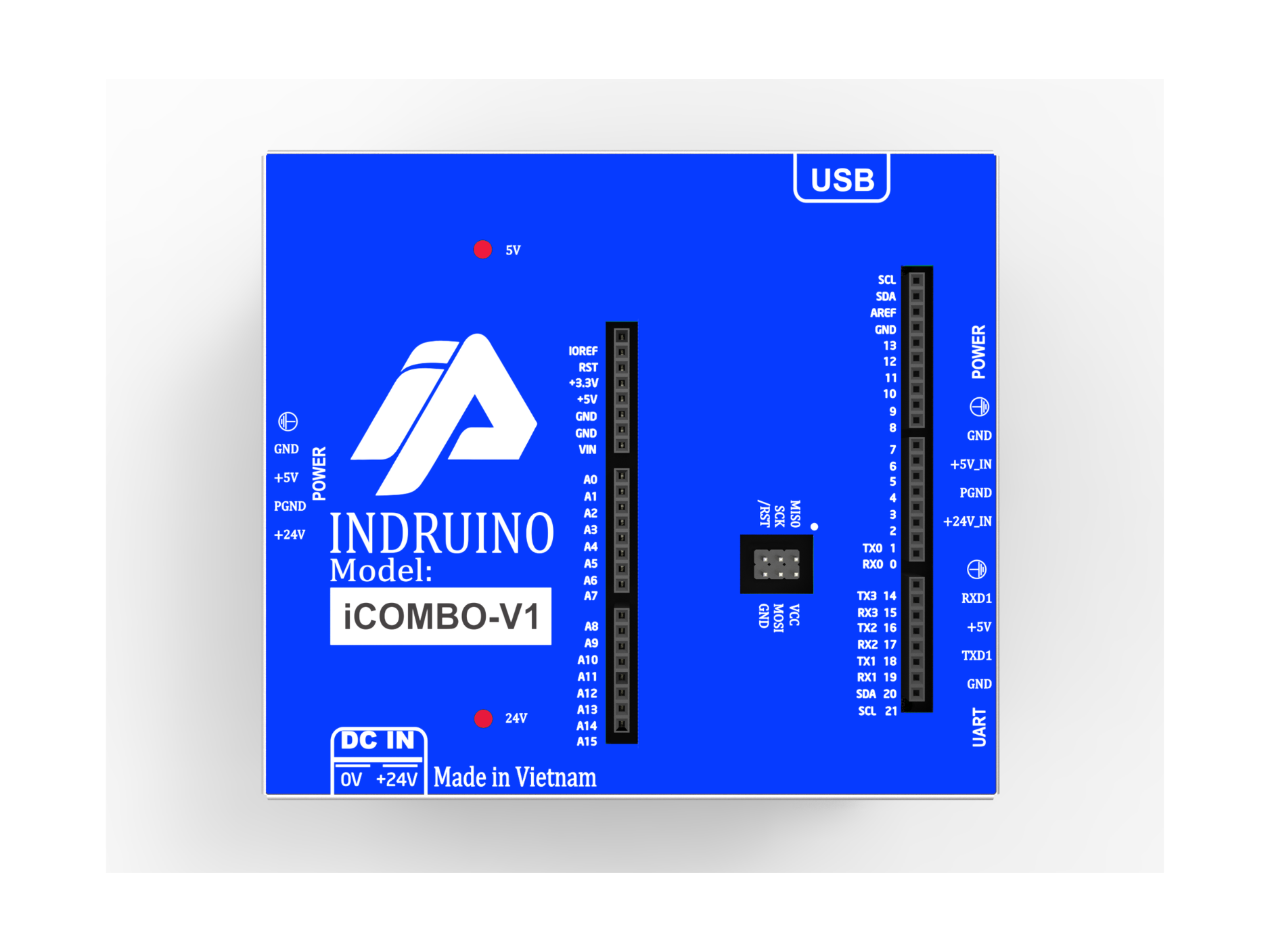

- Supports Arduino pinout to connect with other shields.

- Includes:

+ iPower-ISO 5V/2A

+ CPU iMega2560-ISO

+ Adapter board

+ Base board

+ Stainless steel protection cover

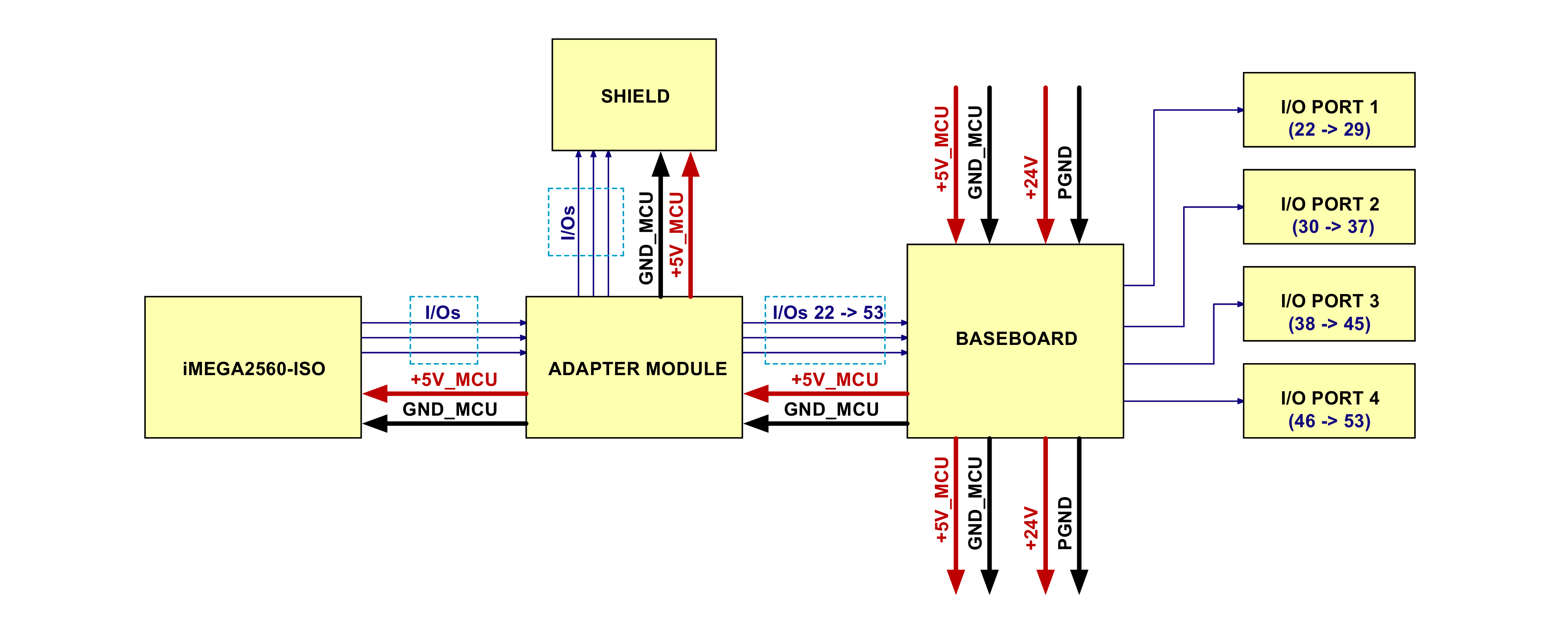

 Block Diagram :

Download : https://drive.google.com/file/d/1_dgX86dUCw7B3XkDRXKfkew7CdnxsJqq/view?usp=sharing

Video demo : https://youtu.be/bjDVA749mrg
