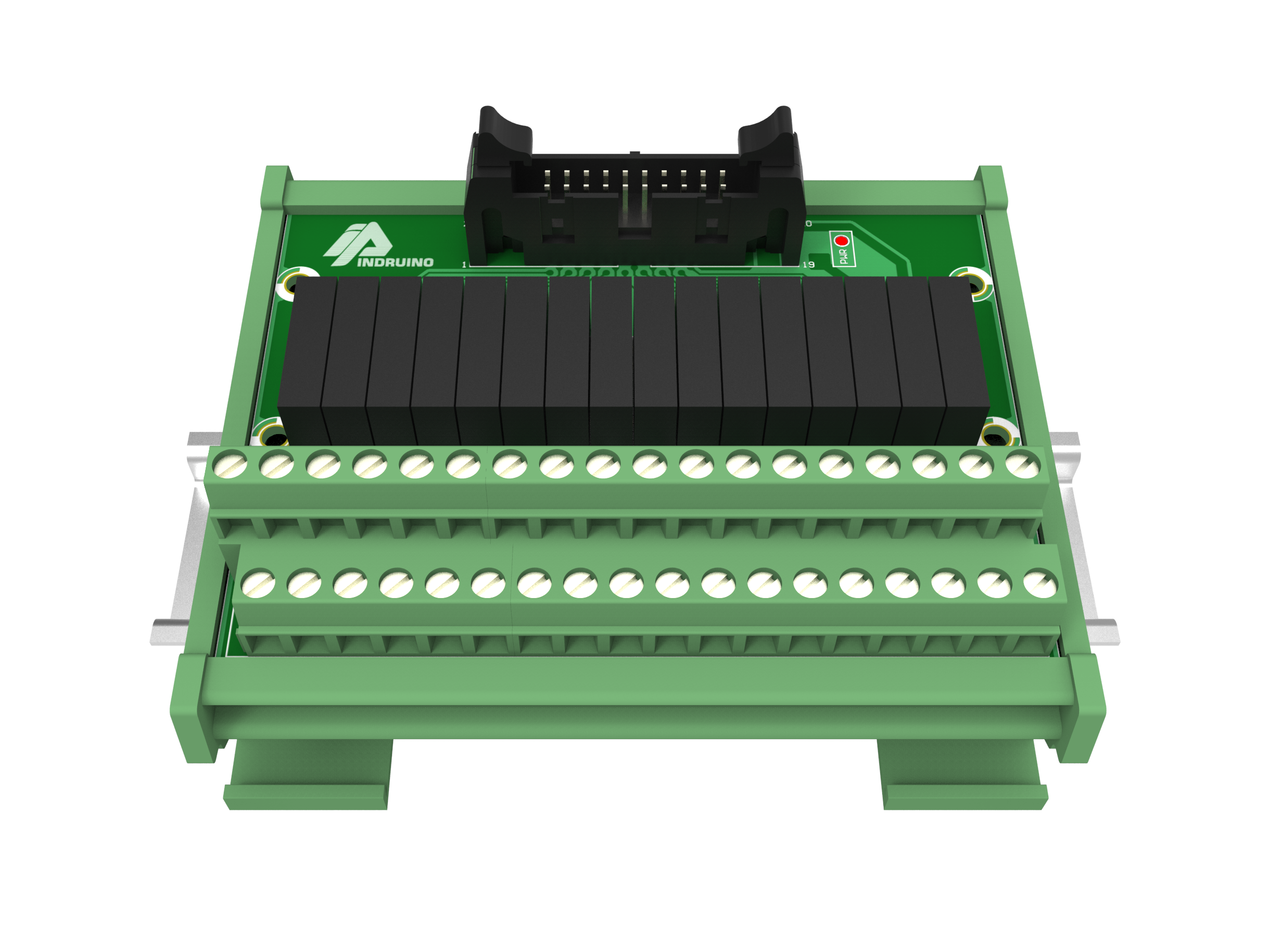

OUPUTS RELAY 16CH MODULE_02

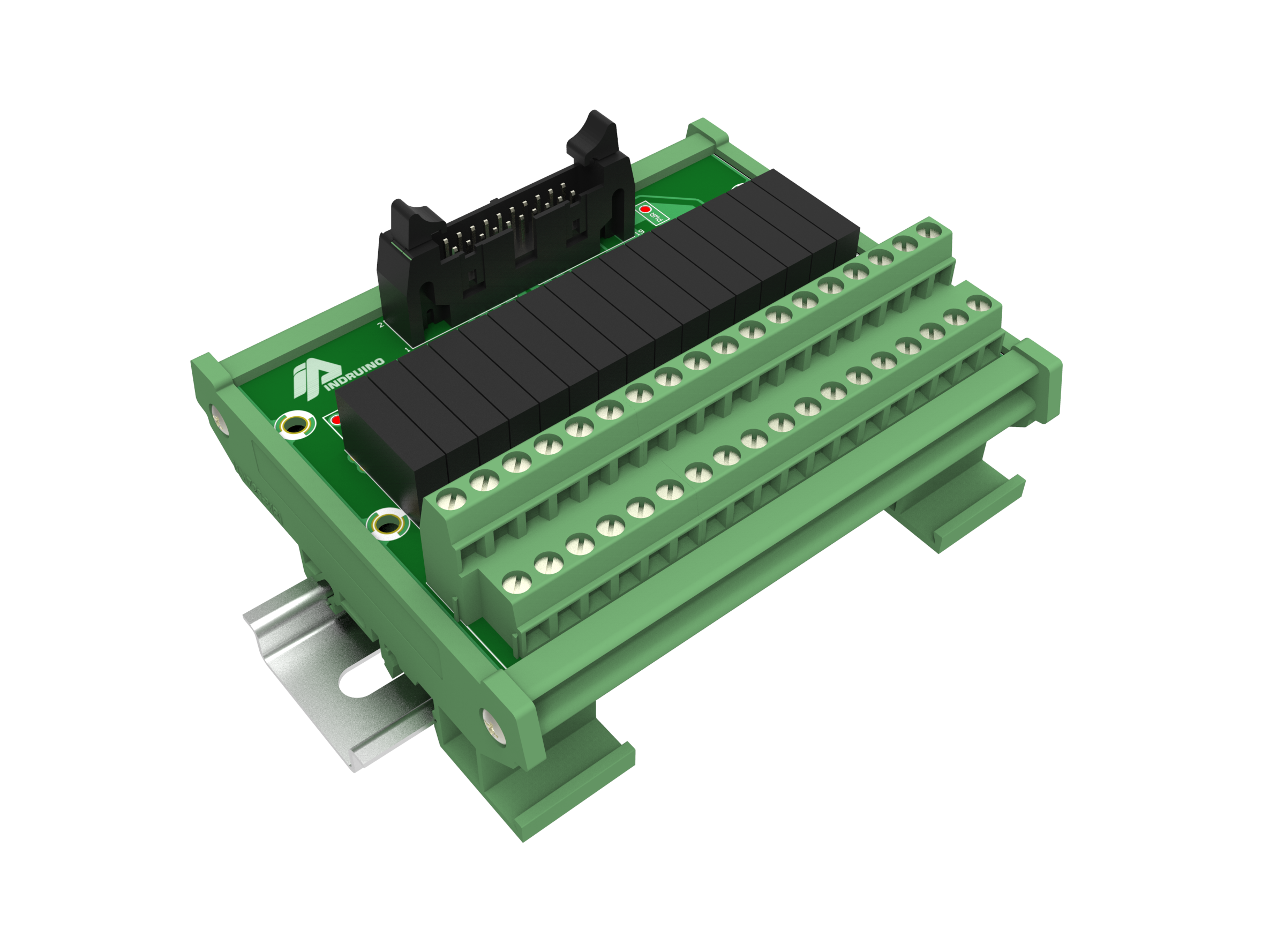

OUPUTS RELAY 16CH MODULE_03

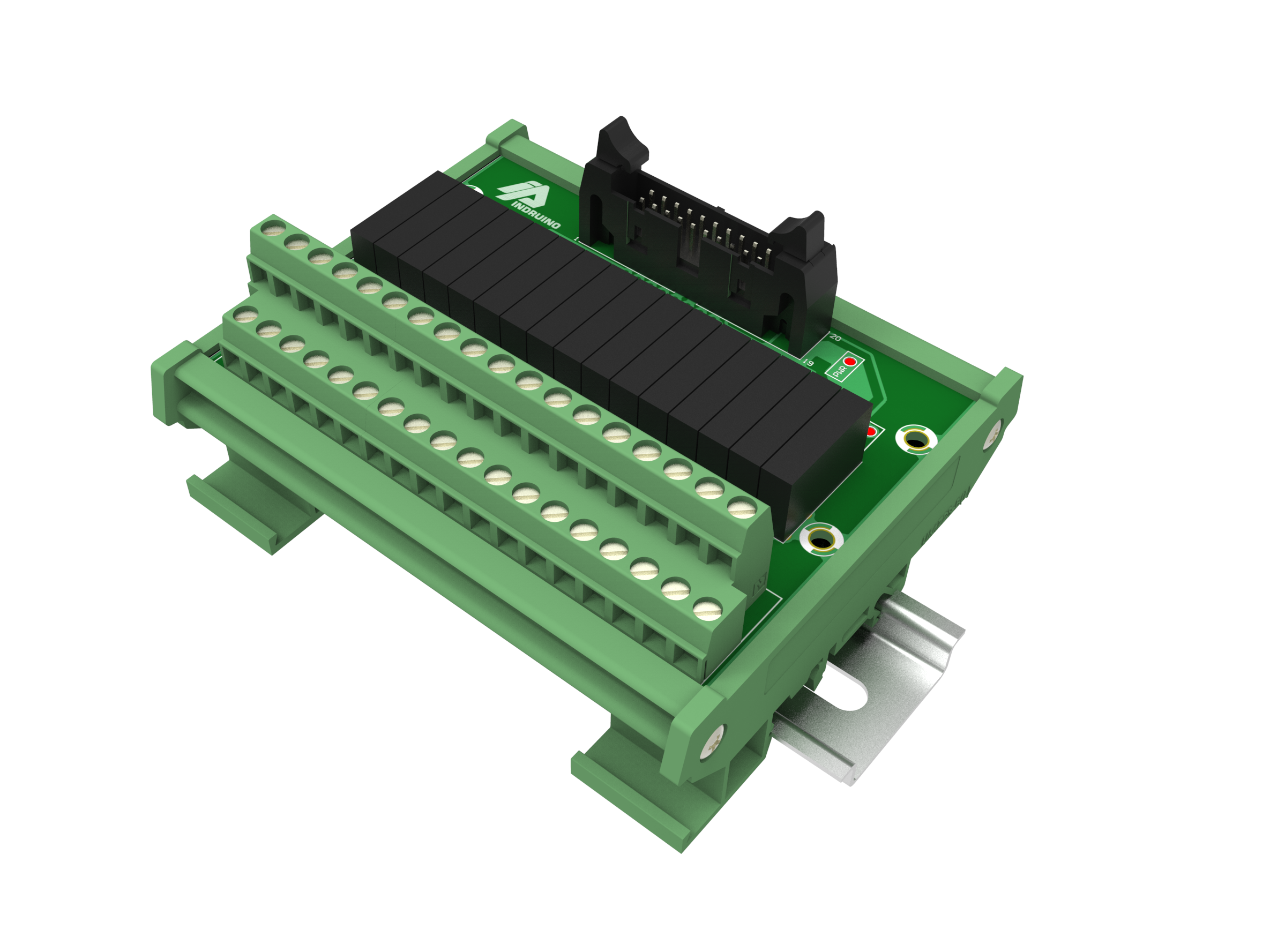

OUPUTS RELAY 16CH MODULE_04

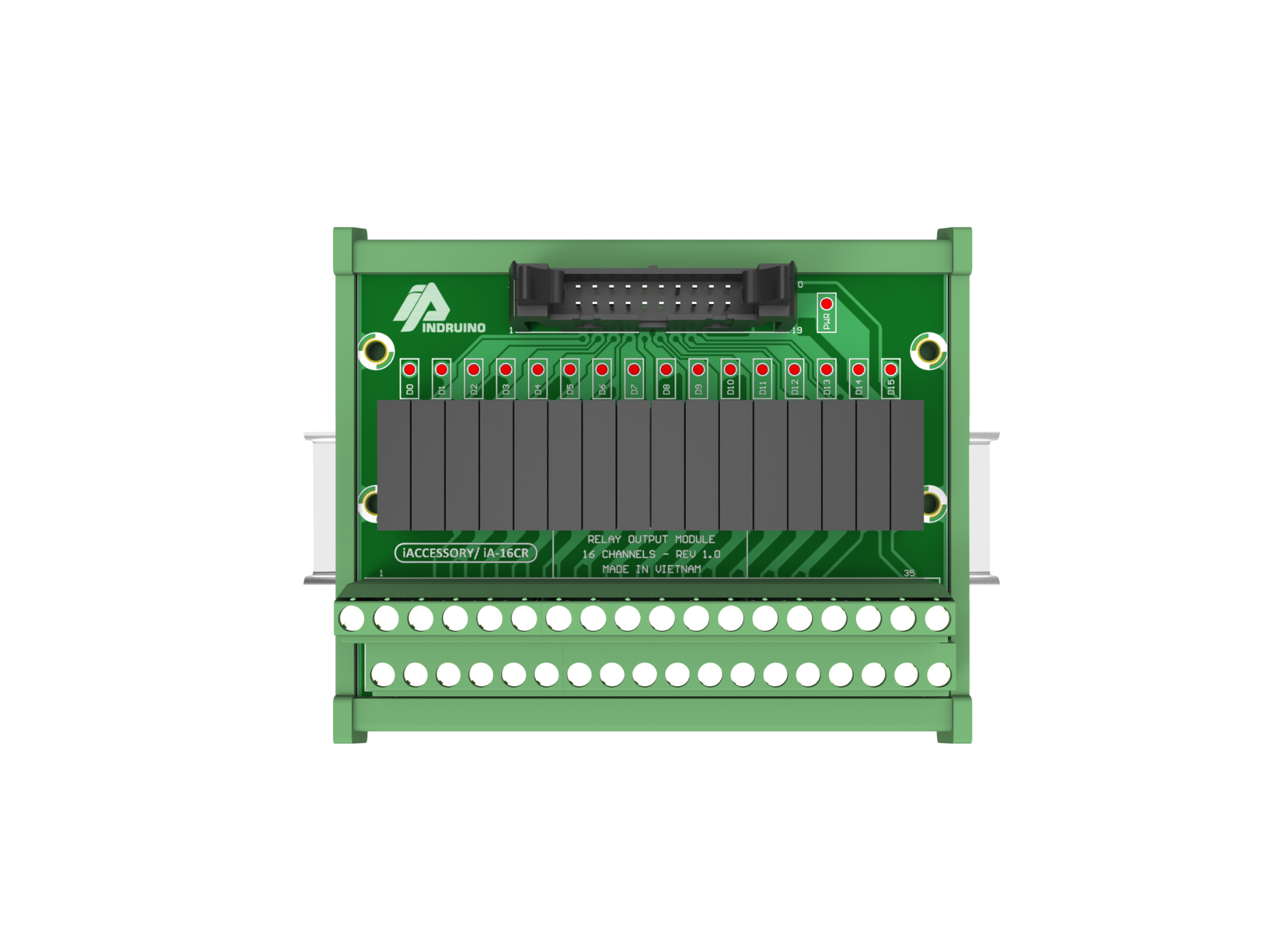

OUPUTS RELAY 16-CHANNELS MODULE

Description

16-Channel 3A Relay Output Terminal Block

- This is the 16 channels relay output control module, maximum current up to 3A per channel. Individual led indicators for each channel, using the TTL signal level to control the output.

- Using the screw connector, high current rate, easy to assemly, high reliable.

- Small size, suitable for those applications which requires small room of cabinet.

TECHNICAL SPECIFICATIONS

‾ Power supply : 24V

‾ Num of channels : 24

‾ Input voltage: 24V

‾ Switching voltage : 220VAC max

‾ Contact current rating : 3A max

‾ Isolation voltage : 2500Vrms

‾ Assembly method : Dinrail

‾ Dimensions (LxWxH) : 96.5 x 72 x 35 mm

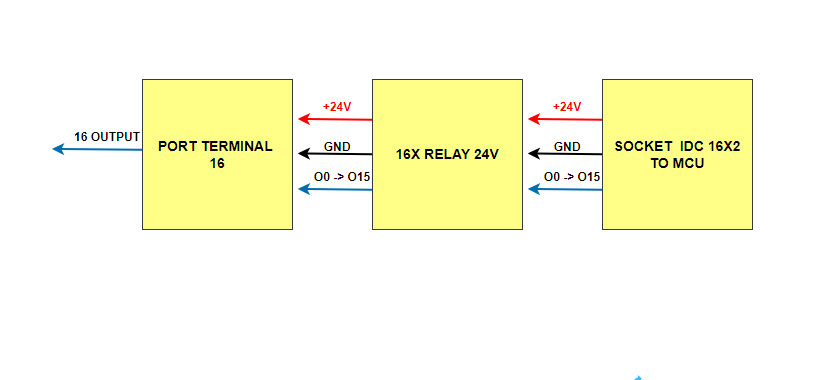

Block Diagram:

 Download: https://drive.google.com/file/d/1GpsDUTyr23RafCB0DH2mqH-4-Yp6gkzN/view?usp=sharing
