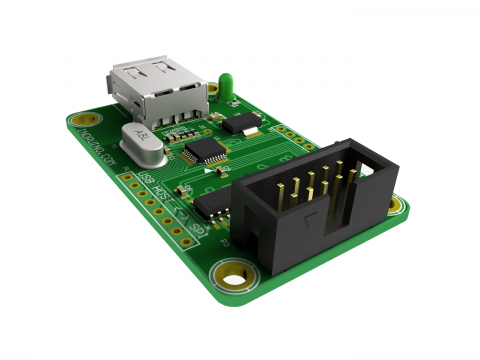

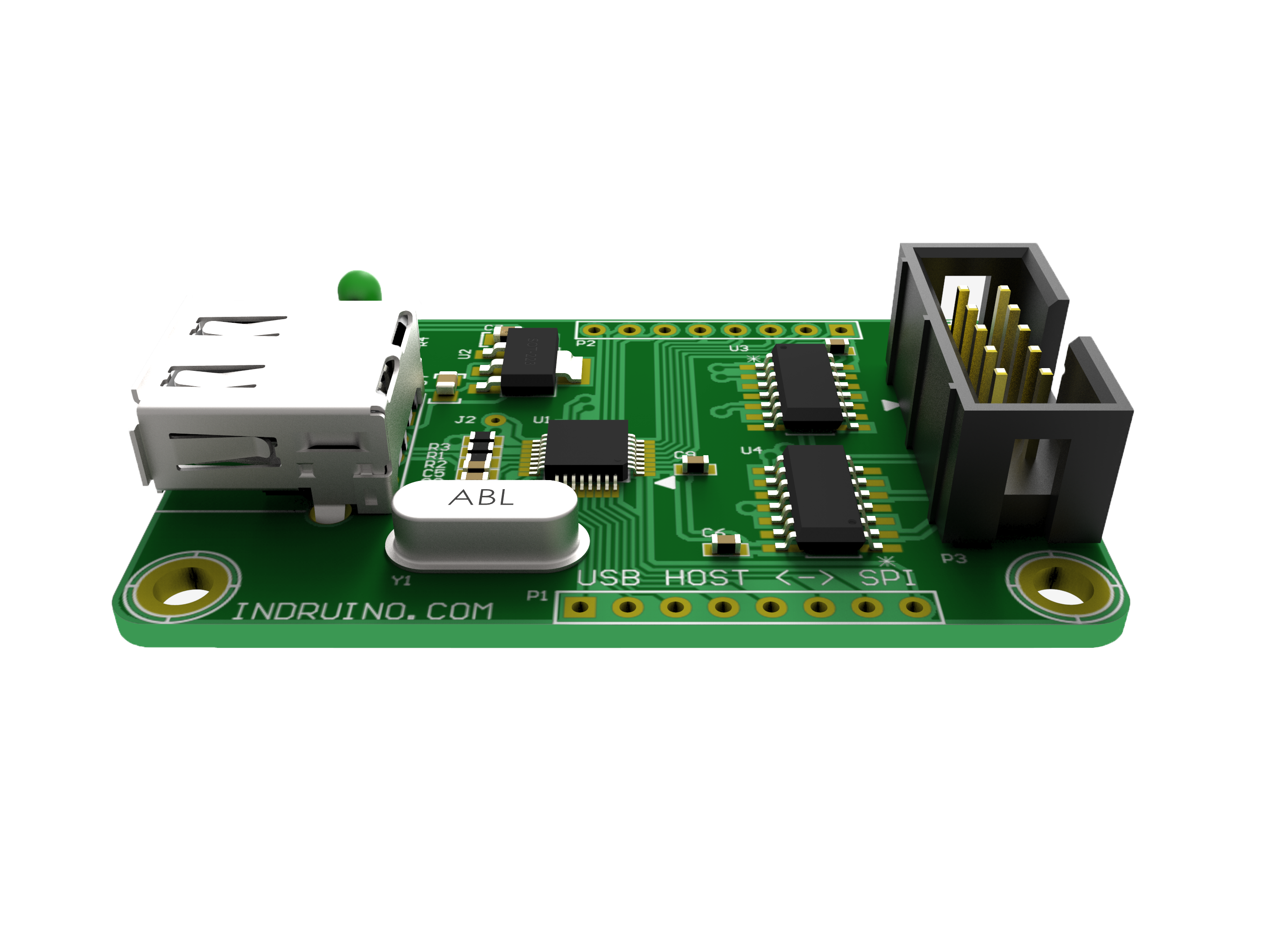

USB HOST TO SPI CONVERTER MODULE

USB HOST TO SPI CONVERTER MODULE

- This USB Host module allows you to connect a USB device to your MCU board.

- It is based on the MAX3421E , which is a USB peripheral/host controller containing the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0.

- This is based on revision 2.0 of USB Host Shield. It communicates with the target board microcontroller through the SPI interface (CSK, MISO, MOSI) via IDC 5x2 socket.

Technical Specifications :

- Microprocessor-Independent USB Solution

- Software Compatible with the MAX3420E USB Peripheral Controller with SPI Interface

- Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)

- Integrated USB Transceiver

- Firmware/Hardware Control of an Internal D+ Pullup Resistor (Peripheral Mode) and D+/D- Pulldown Resistors (Host Mode)

- Programmable 3- or 4-Wire, 26MHz SPI Interface

- Level Translators and VL Input Allow Independent System Interface Voltage

- Internal Comparator Detects VBUS for Self-Powered Peripheral Applications

- ESD Protection on D+, D-, and VBCOMP

- Interrupt Output Pin (Level- or Programmable-Edge) Allows Polled or Interrupt-Driven SPI Interface

- Eight General-Purpose Inputs and Eight General-Purpose Outputs

- Interrupt Signal for General-Purpose Input Pins, Programmable Edge Polarity

- Intelligent USB SIE

- Automatically Handles USB Flow Control and Double Buffering

- Handles Low-Level USB Signaling Details

- Contains Timers for USB Time-Sensitive Operations so SPI Master Does Not Need to Time Events

- Size: 54.6x33.5mm

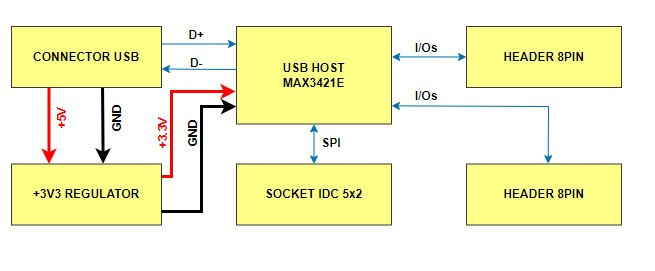

Block Diagram :

Download: https://drive.google.com/file/d/11pkBtBf5oSkkuOVyq5nYnMO2USad6GC4/view?usp=sharing
