H-BRIDGE-IR2184
Description

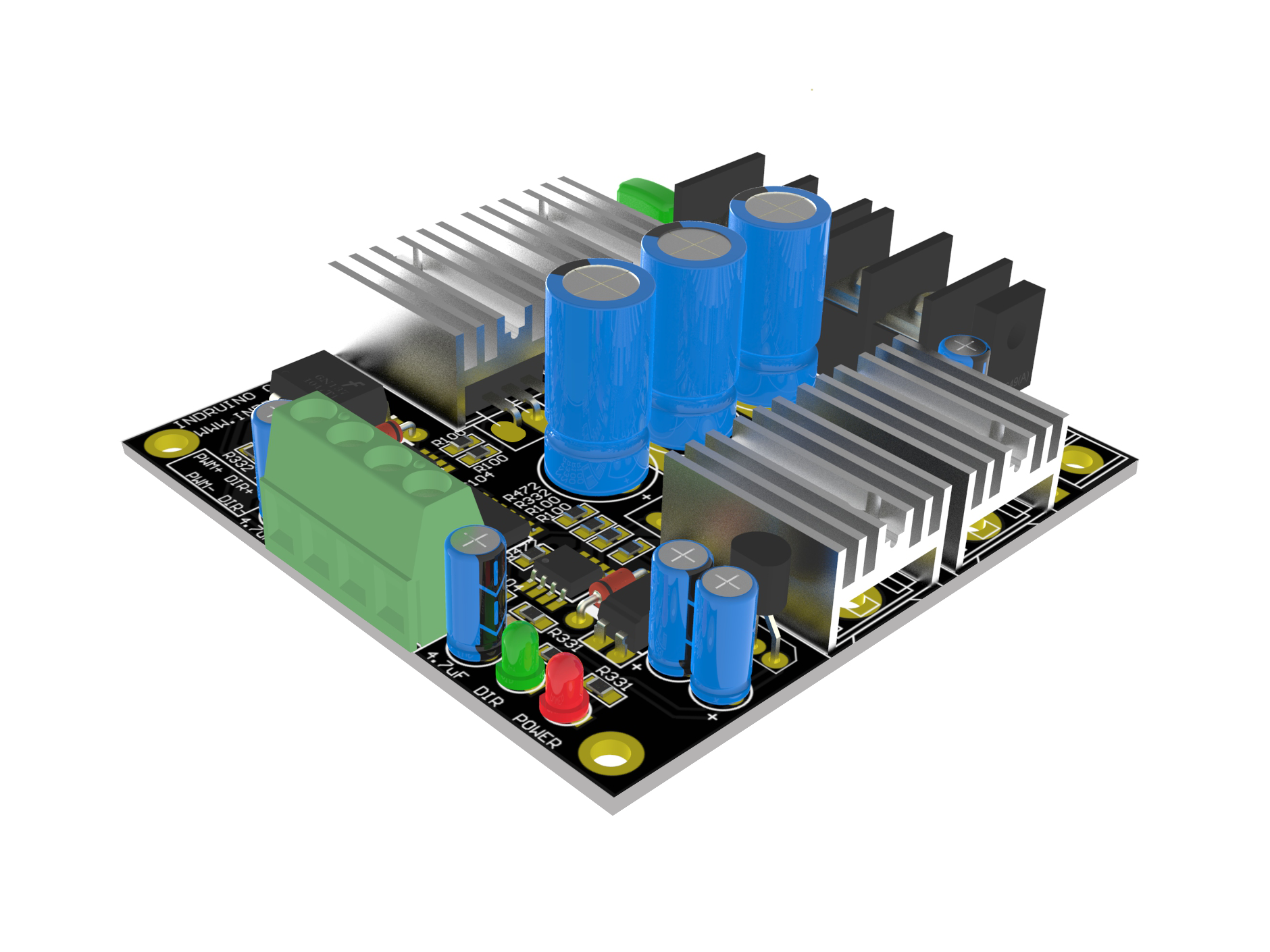

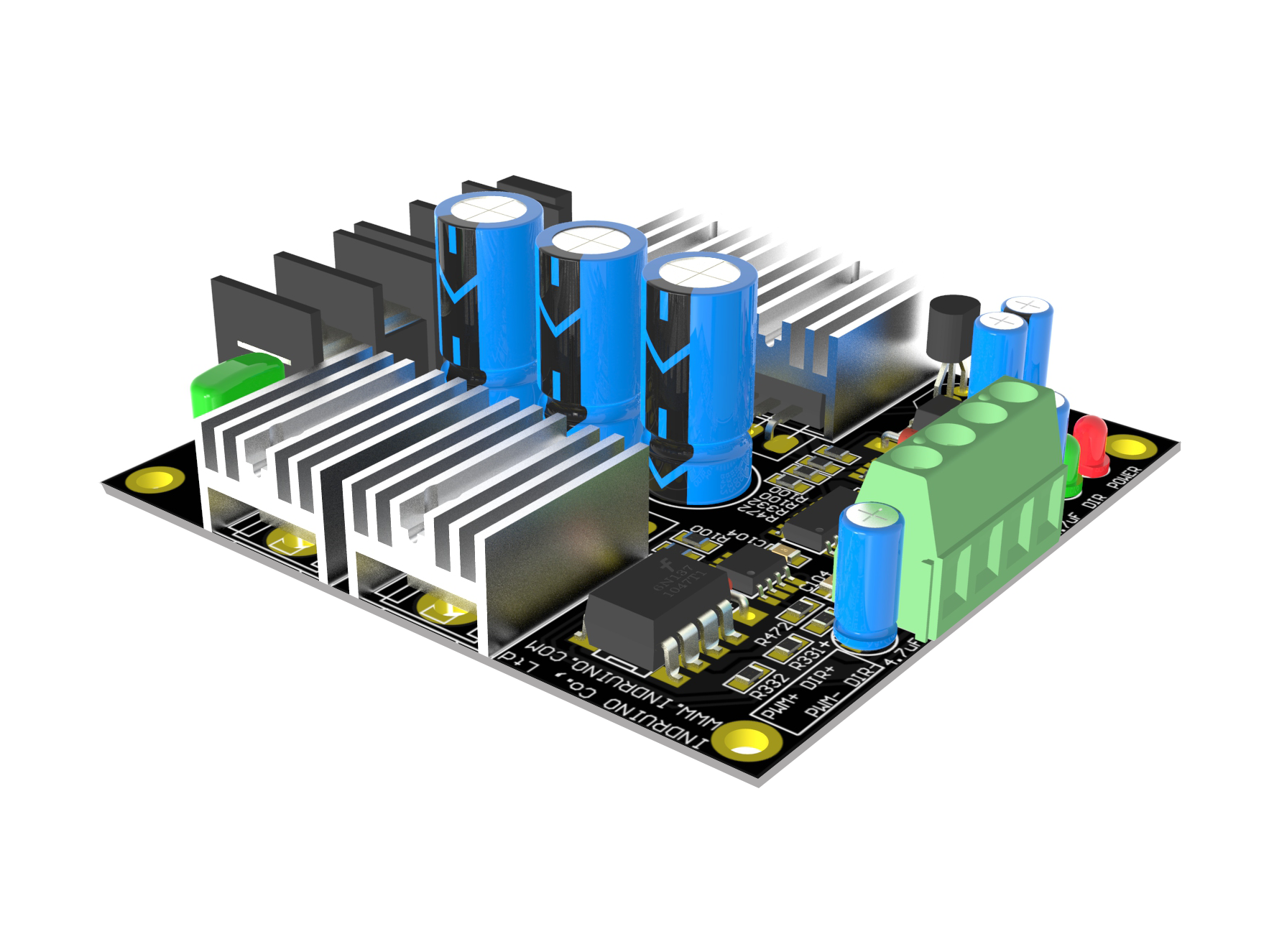

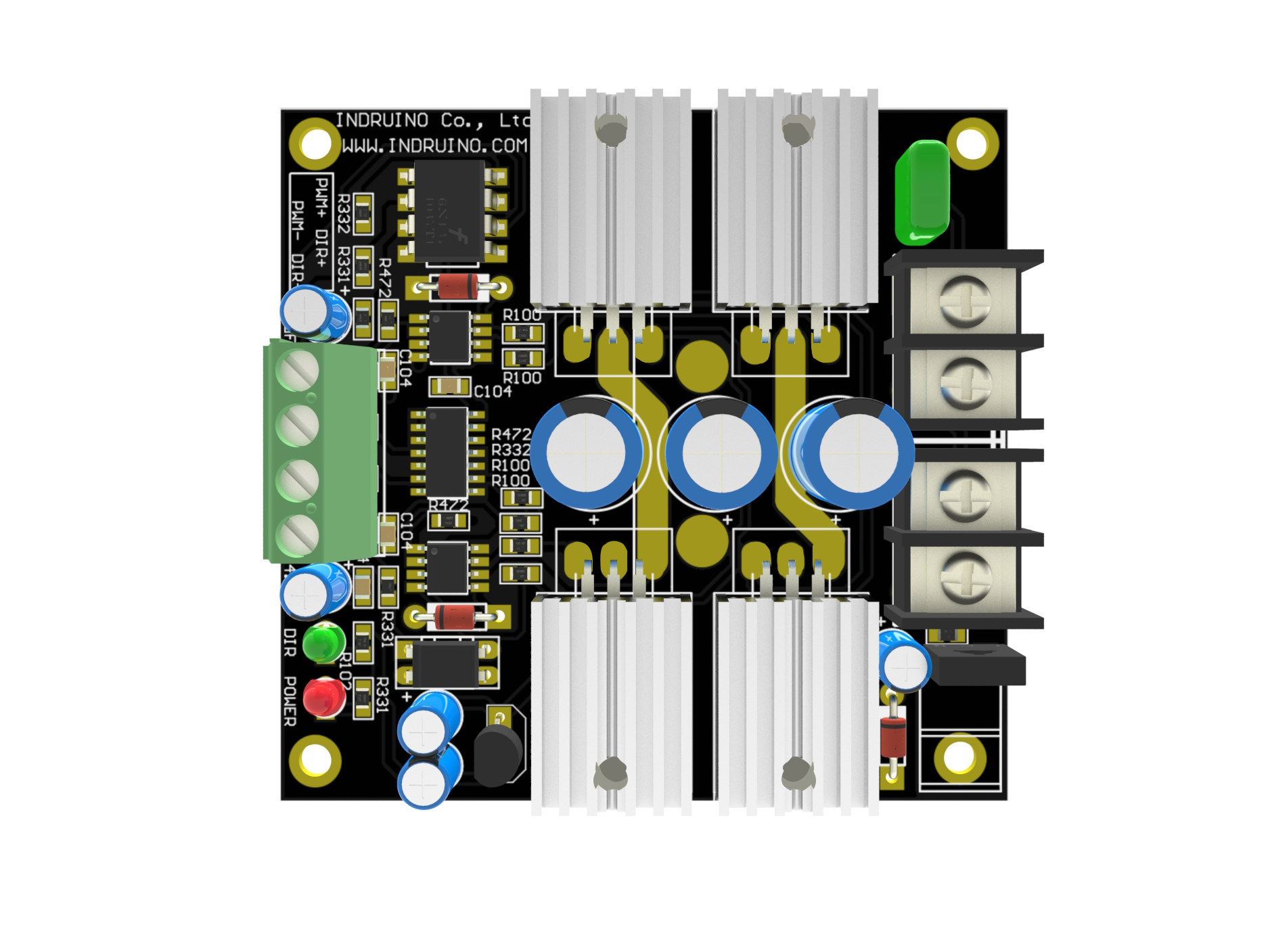

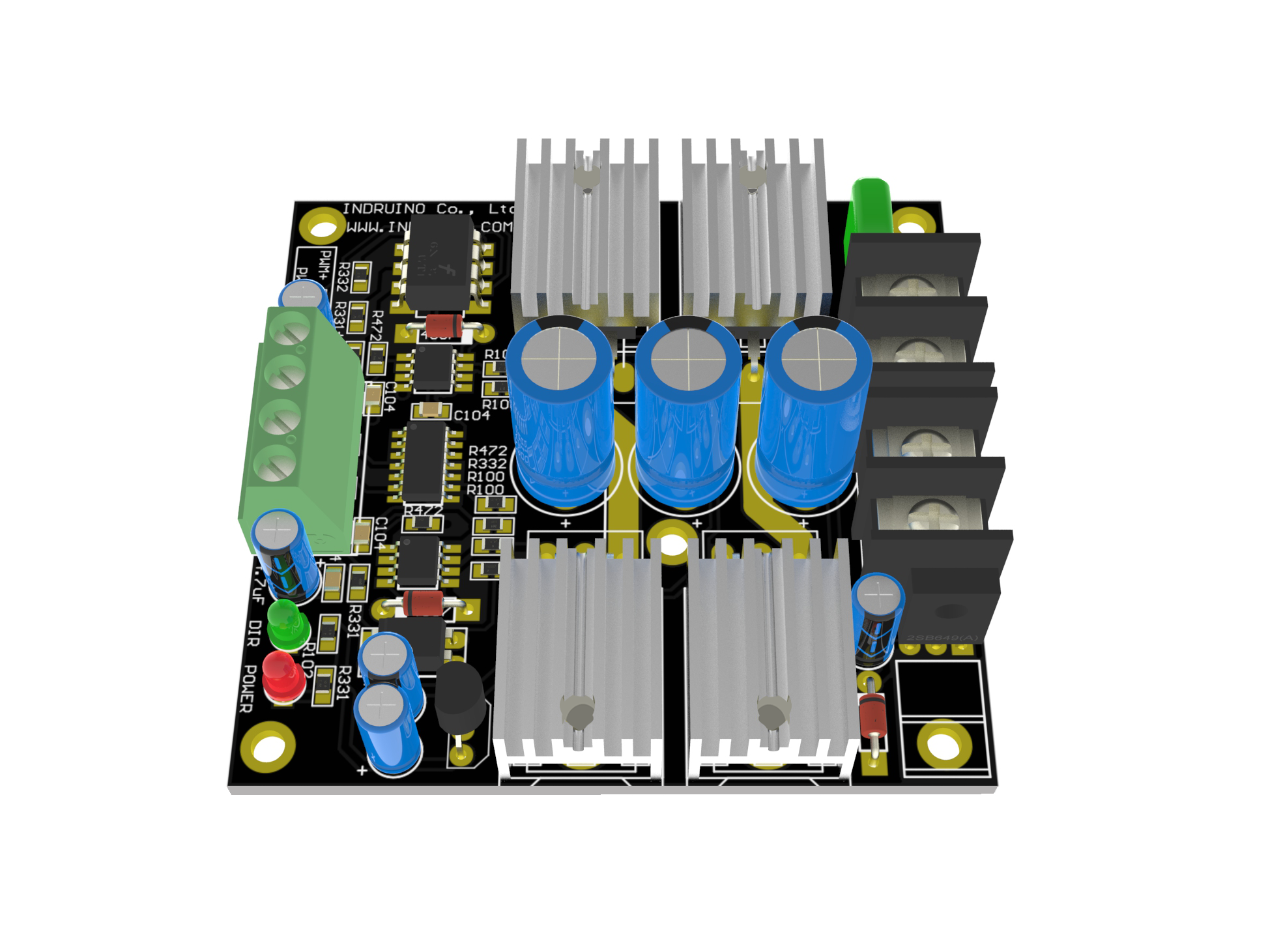

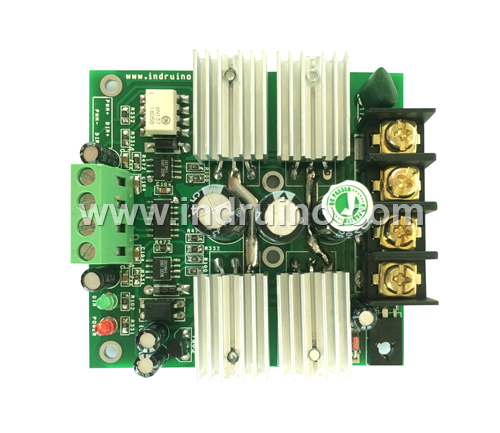

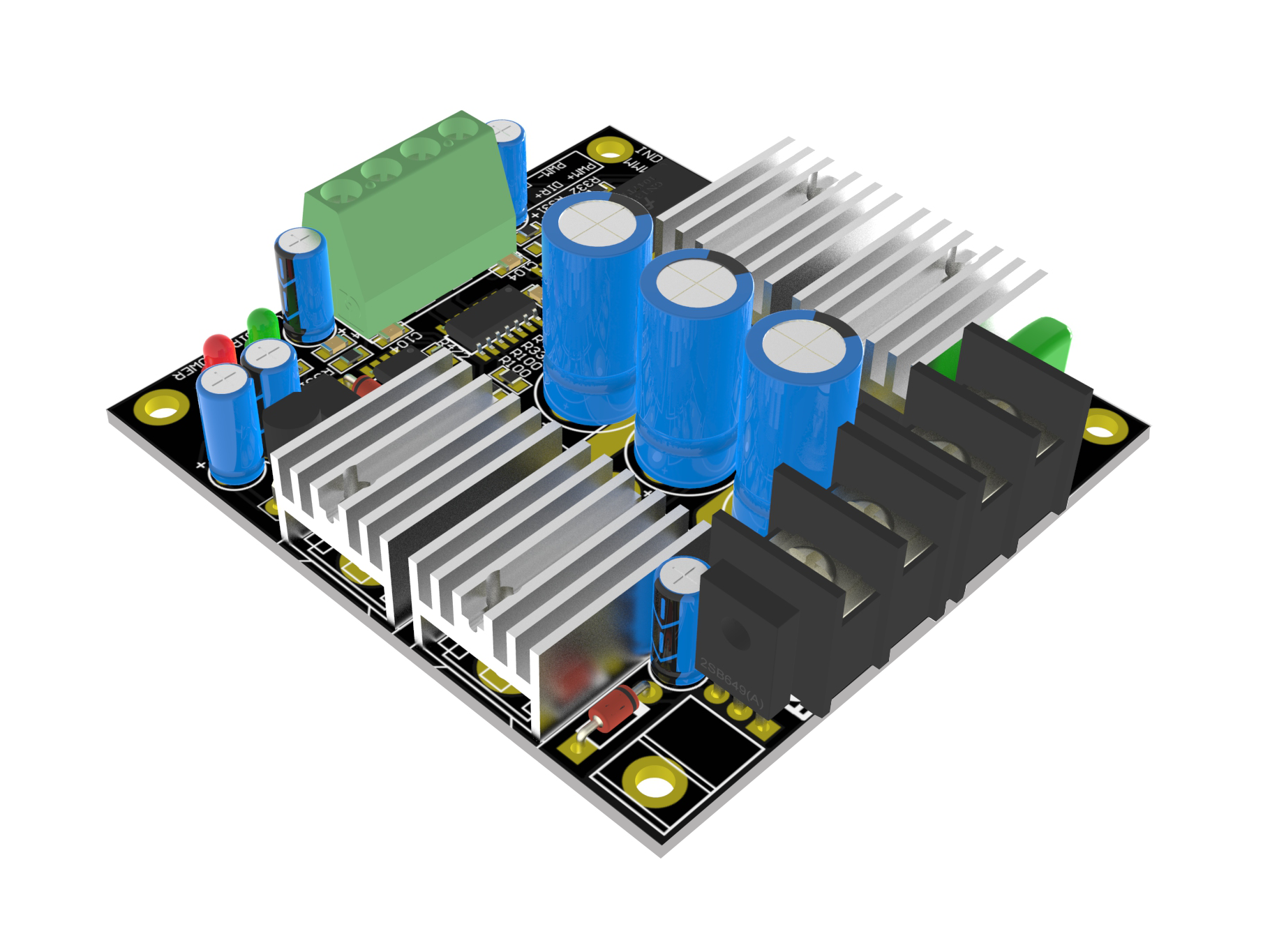

H-BRIDGE-IR2184
This module designed to control speed and direction of DC motor. Using high capacity MOSFET, 30A max. Best option for robot, electric car, ect…
Technical Specifications :
- Power supply: 12 - 36VDC
- Peak current: 30A
- Rated current: 10A
- Control method: PWM
- Control signal level: 0-5V
- Gate driver: IR2184
- Other features: Heatsink; Status LEDs; Mounting holes
- Dimensions (LxWxH) : 72 x 68.5 x 20 mm
Video demo : https://youtu.be/Pw8czNTqmiU
