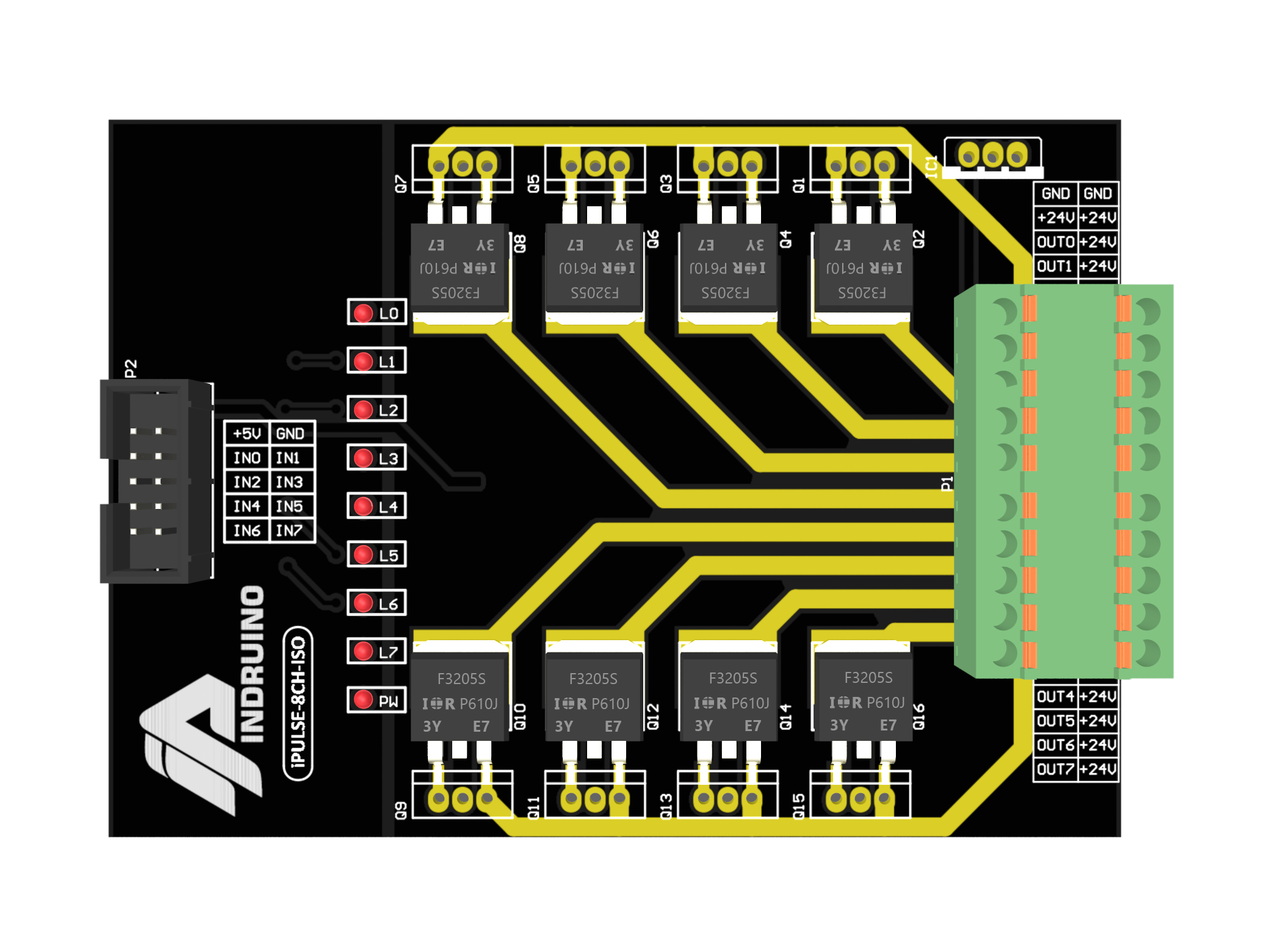

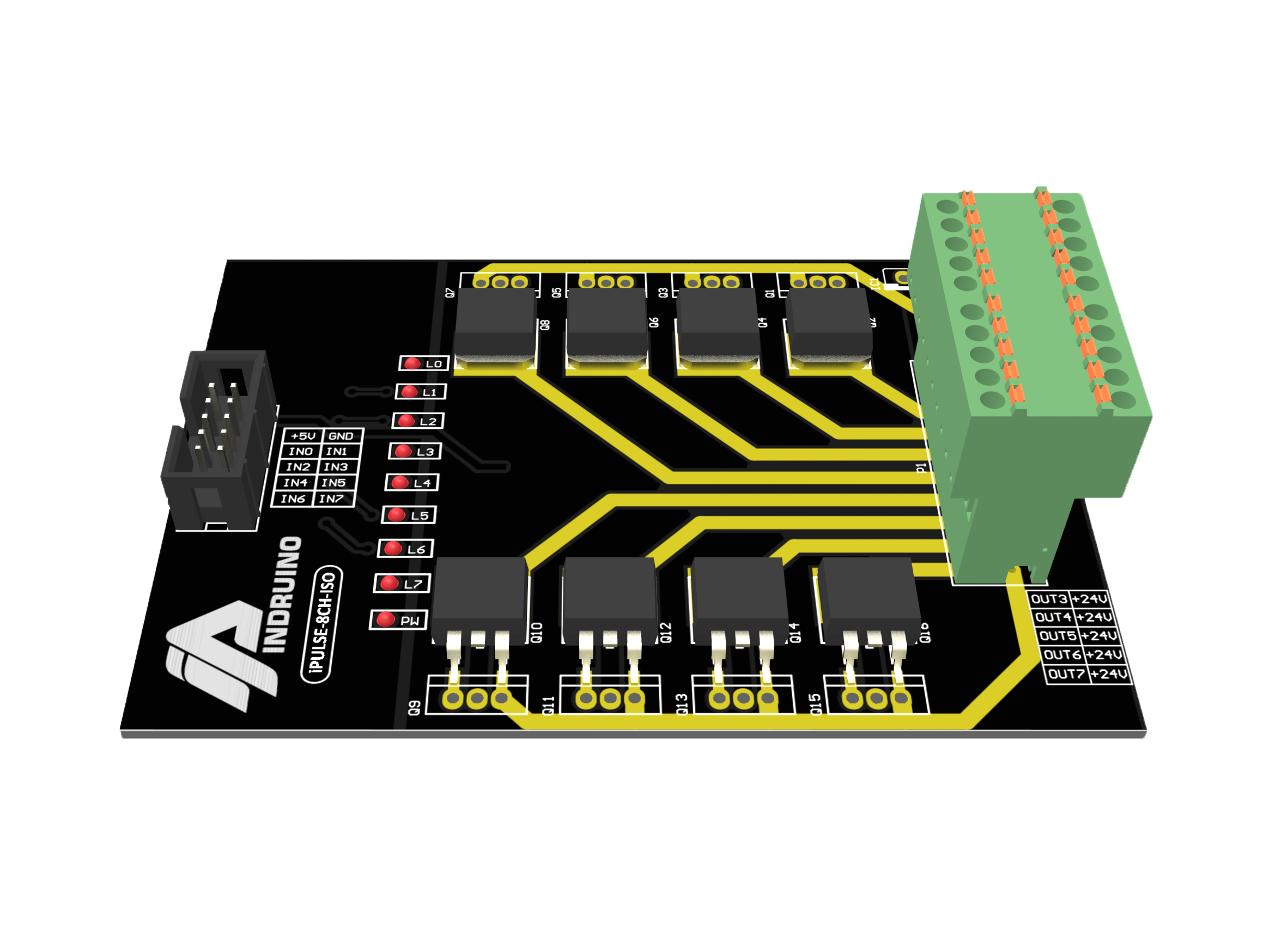

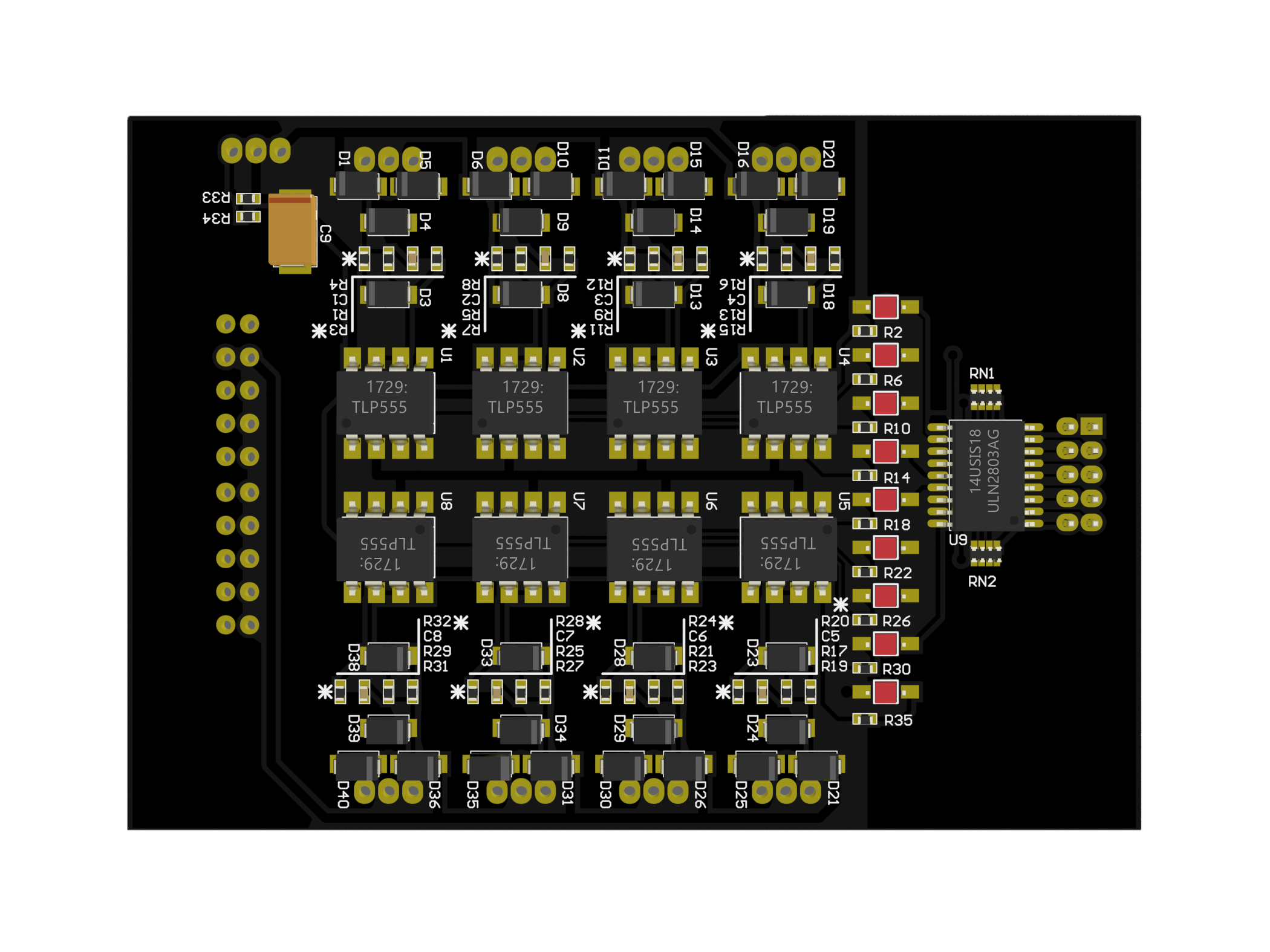

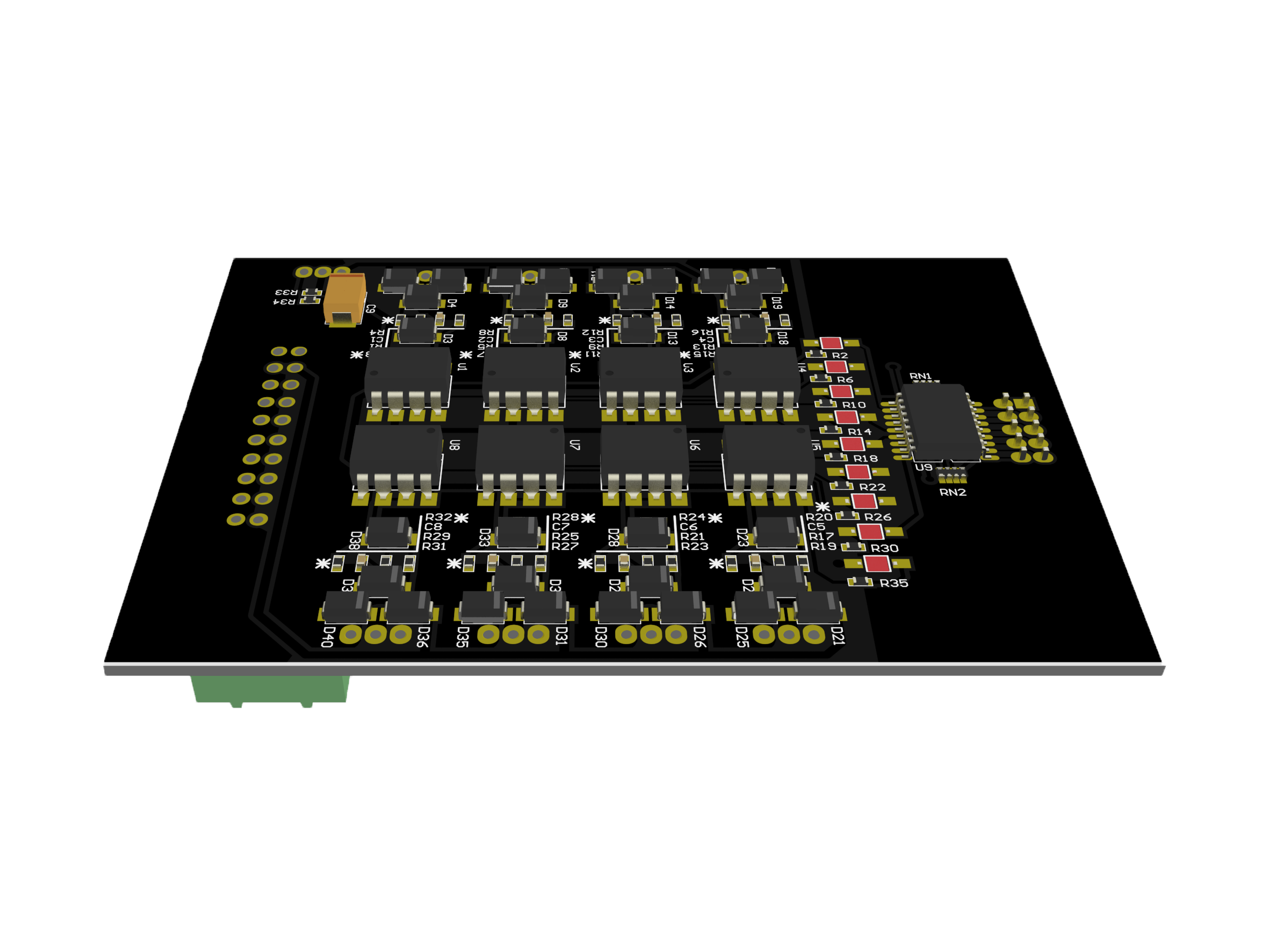

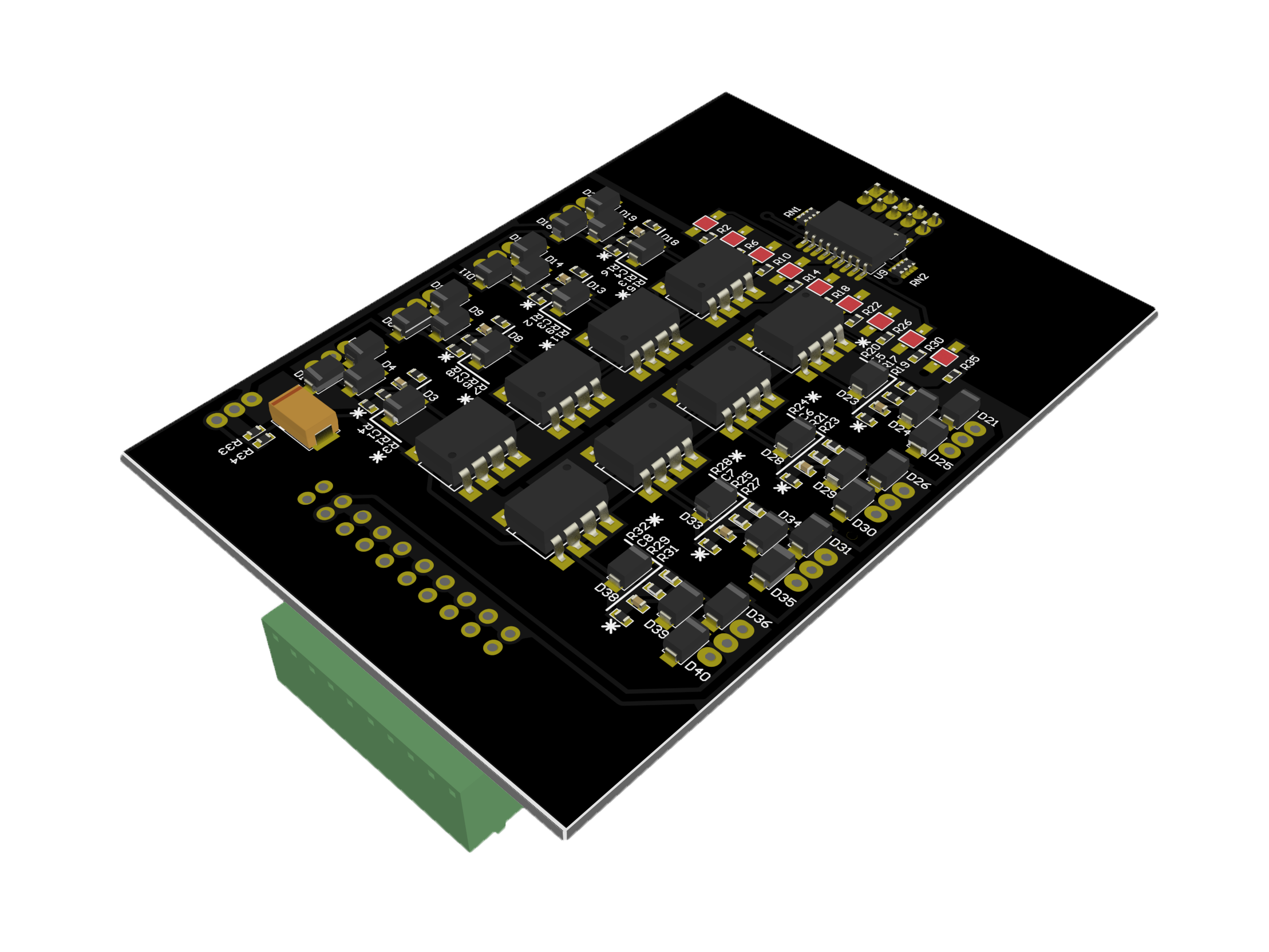

iPULSE-8CH-ISOLATION

Description

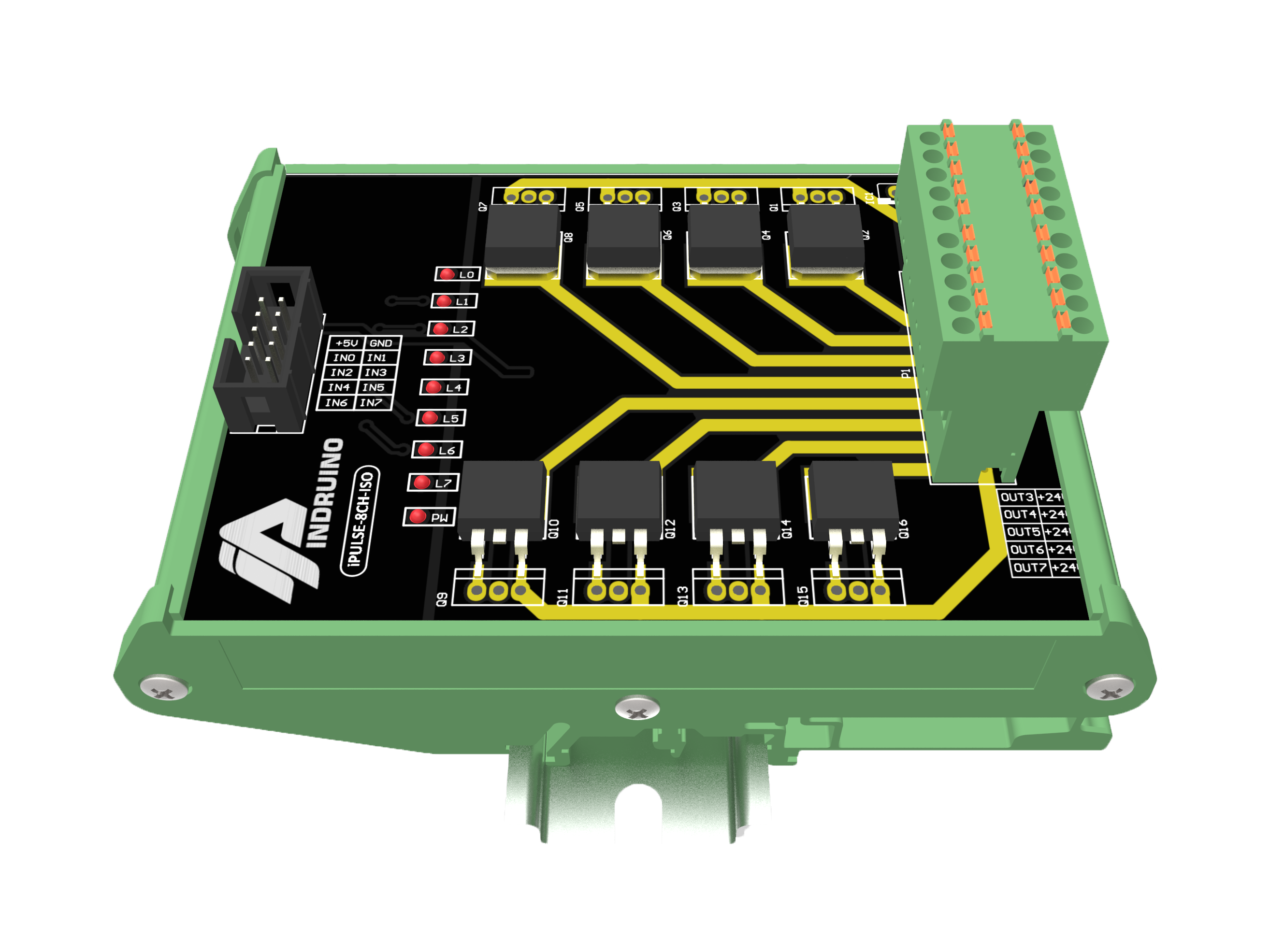

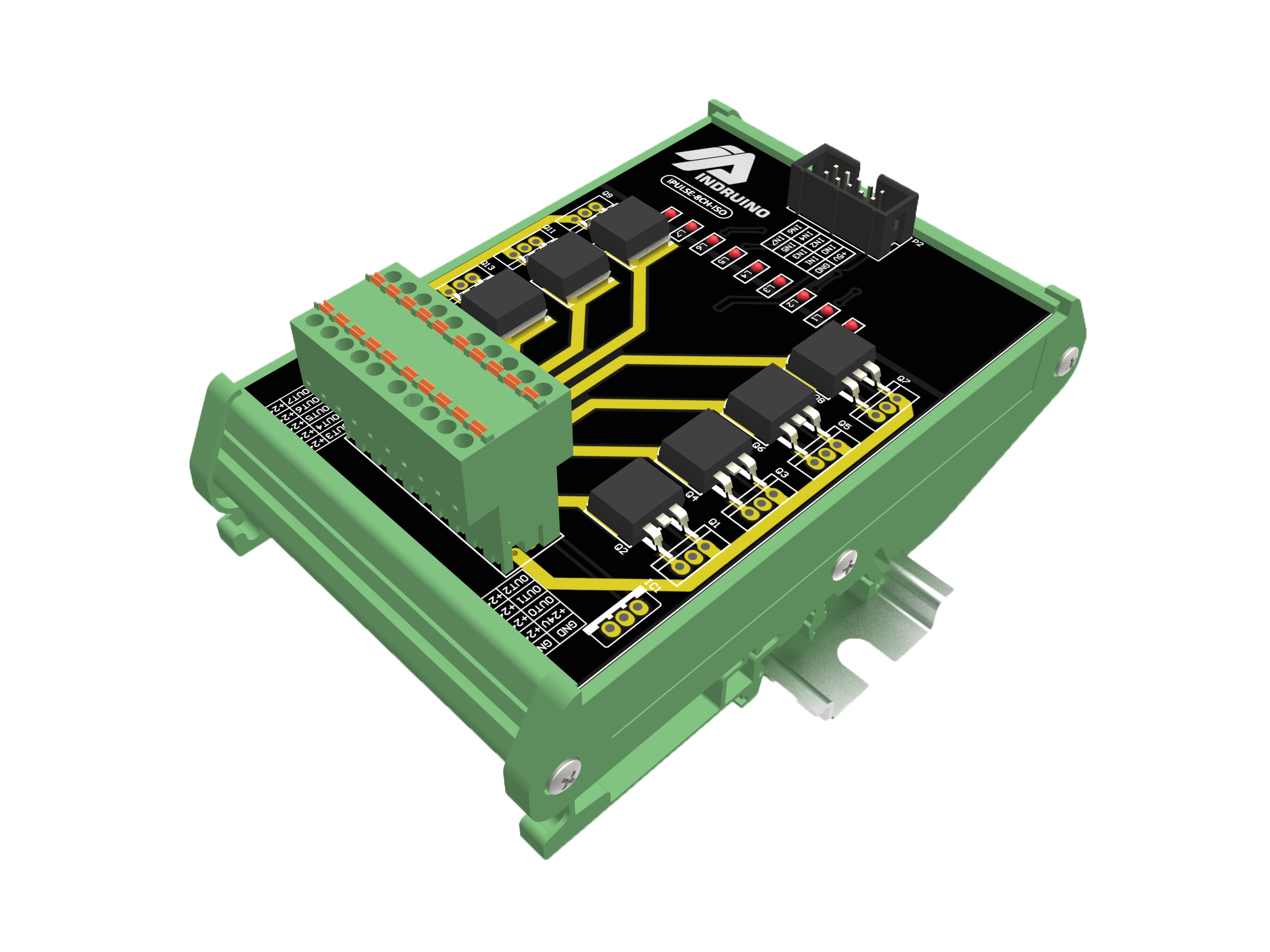

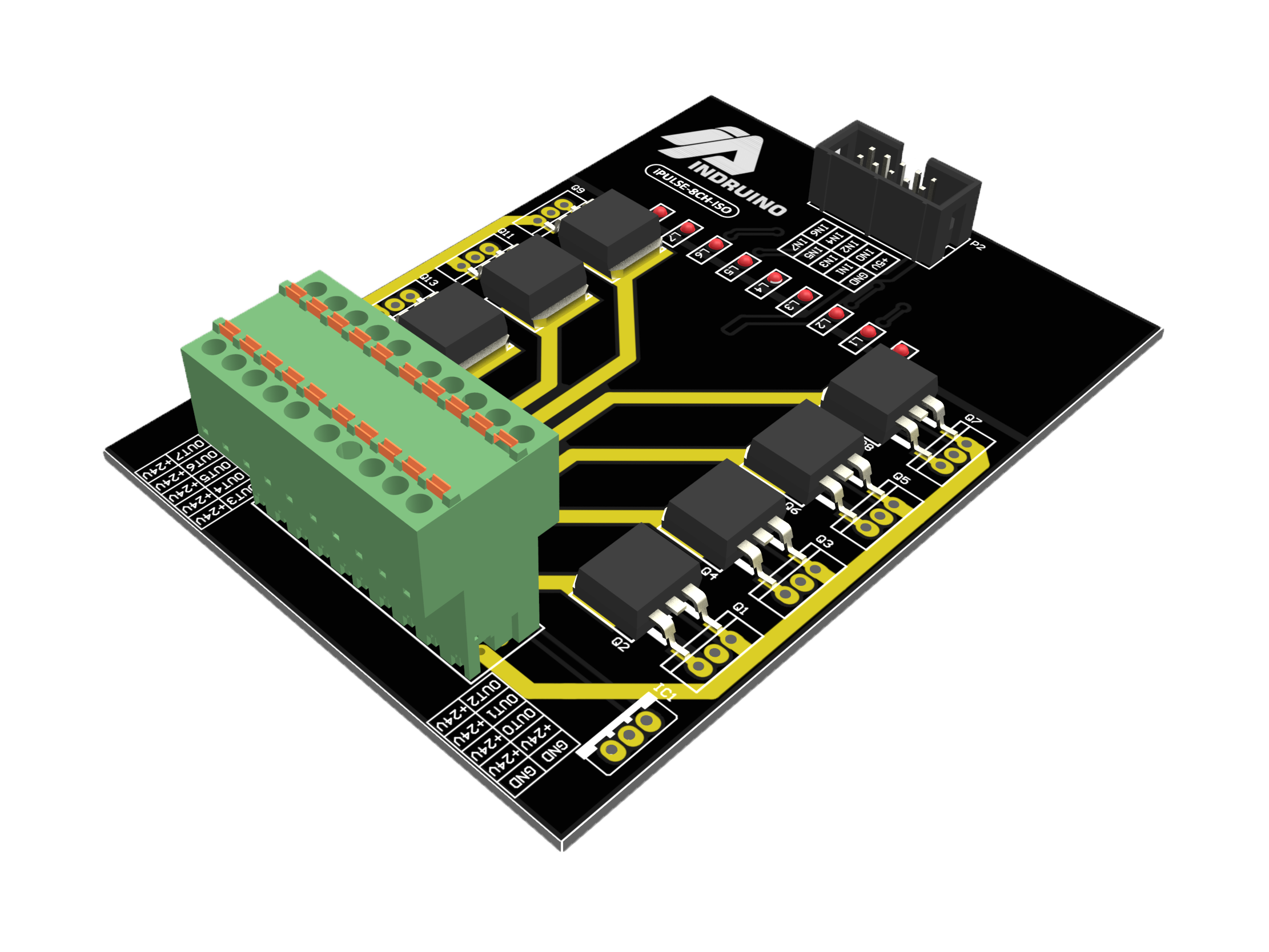

iPULSE-8CH-ISOLATION

- This module helps the microcontroller control safely with load equipment like DC motors, analog valv, ect…

- Industrial standard design using opto for isolation, frequency up to 100 KHz.

- Using spring contact connector and IDC 5x2 connector so that easy to assembly, replace or maintain.

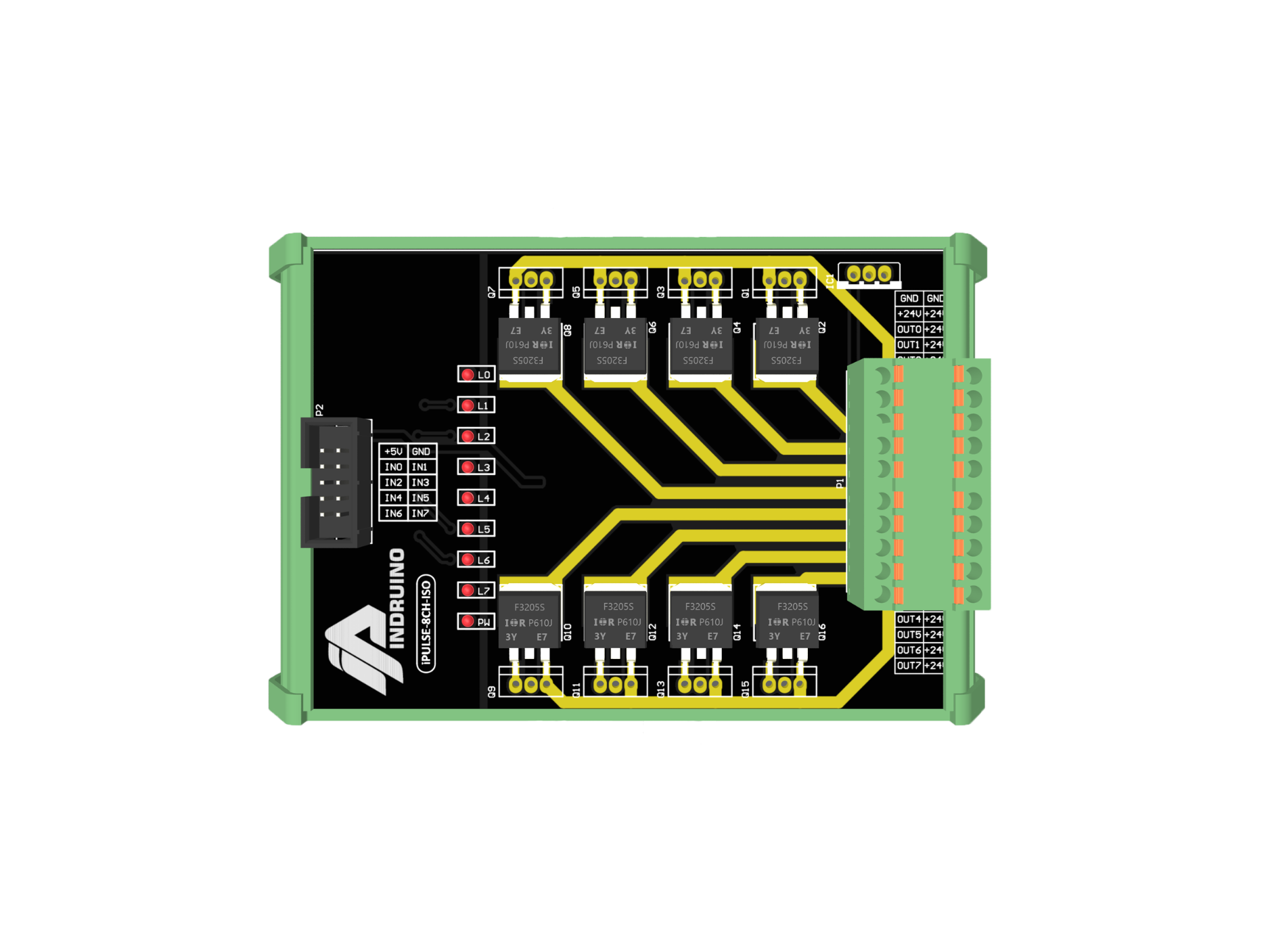

- Small size, compatible with dinrail standard.

Technican Specifications :

- Power supply : 24V & 5V

- Num of channels : 8

- Output current Max : 70A

- Output voltage : 0 ÷ 24V

- Isolation voltage : 2500Vrms

- Assembly method : Dinrail

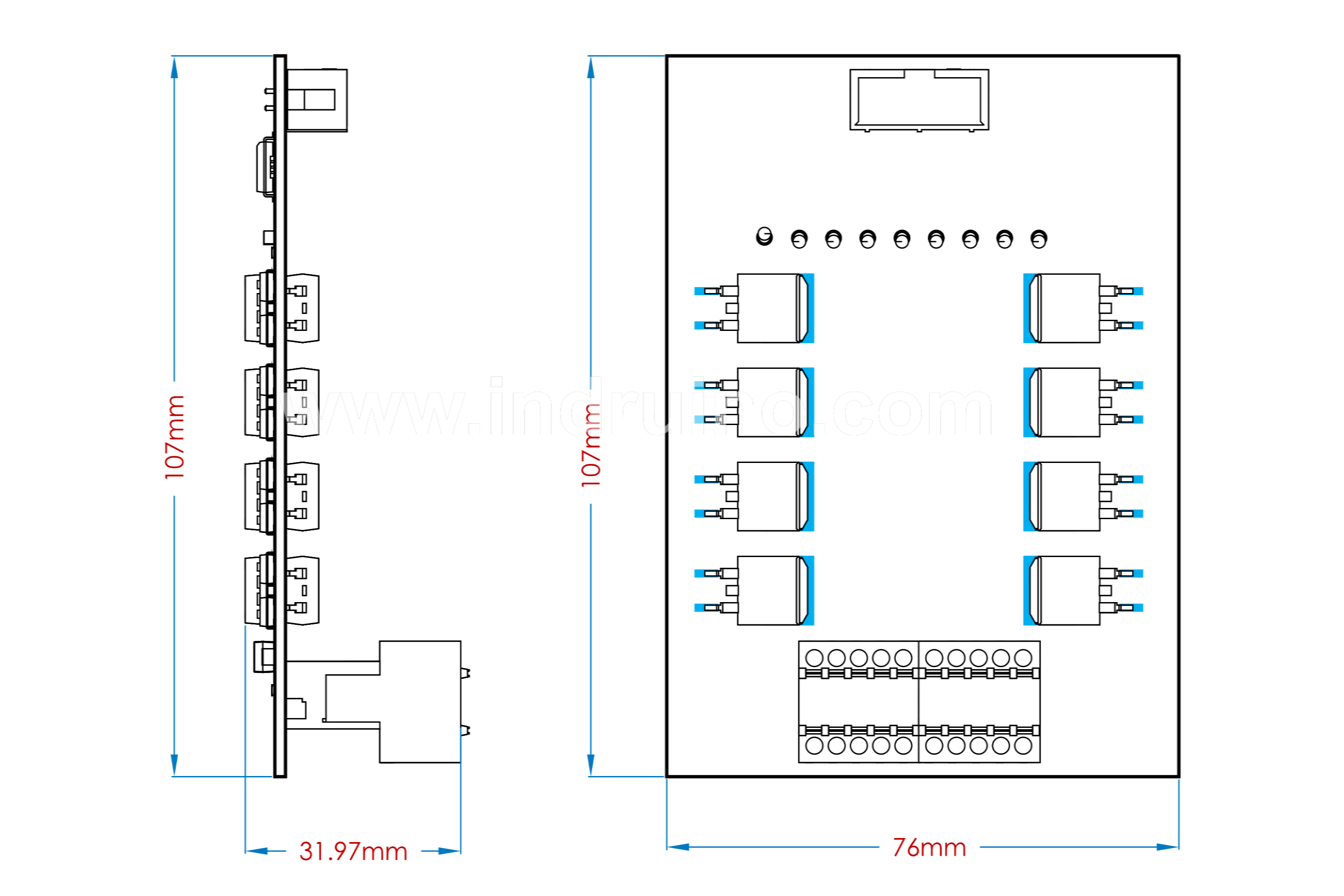

- Dimensions (LxWxH) : 107 x 76 x 32 mm

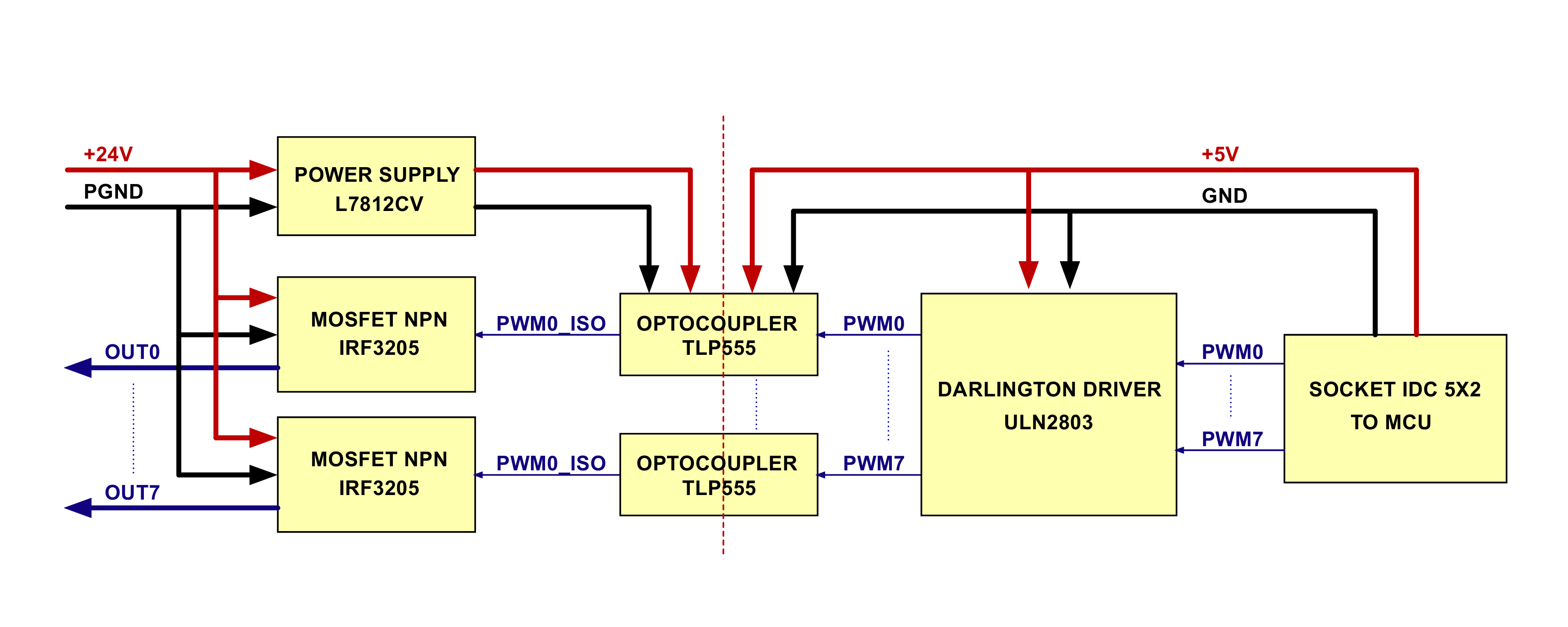

 Block Diagram :

 Download : https://drive.google.com/file/d/1UF22q7g_k2GnIev-PdY7axxjc1OTosXB/view?usp=sharing
