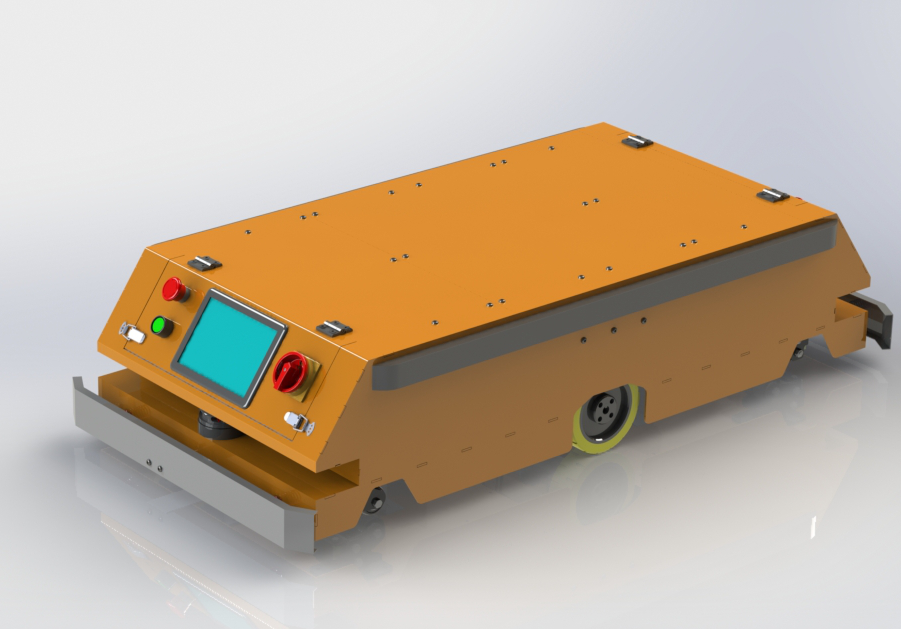

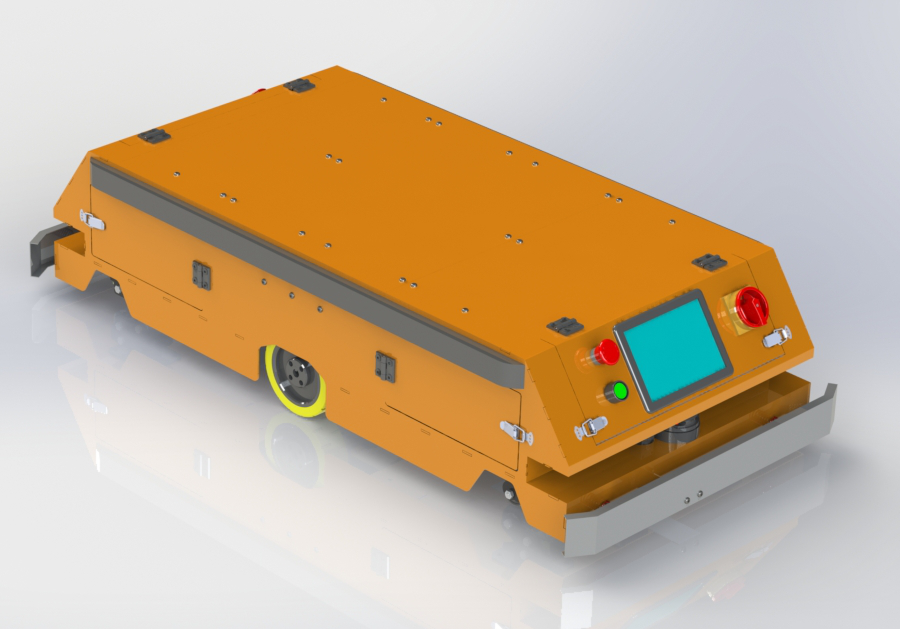

iAGV - 300

Self-propelled robot

FEATURES:

- Load capacity: 500–1000 kg

- Automatically stop at the specified point to receive goods.

- Automatically return to the drop-off point when the shelves are full.

- Flexibility to change shelf size.

- Safety: detects and stops when there is an obstacle.

TECHNICAL SPECIFICATIONS:

- Robot payload: 500kg

- Towing capacity: 1000kg

- Running time: More than 8 hours

- Internal charger: Input 100-220V/ Output 58V

- Maximum speed: 5km/h

- Turning radius: 650mm

- Lidar: Detect with range up to 40m

- Positioning accuracy: +- 50mm

- I/Os

• Input: 12 - Channel optical isolator input
• Output: 12 - Channel relay output, maximum current up to 3A per channel

- Dimensions: (LxWxH): 1300 x 570 x 300

- Below is the application video of iAGV-300:
