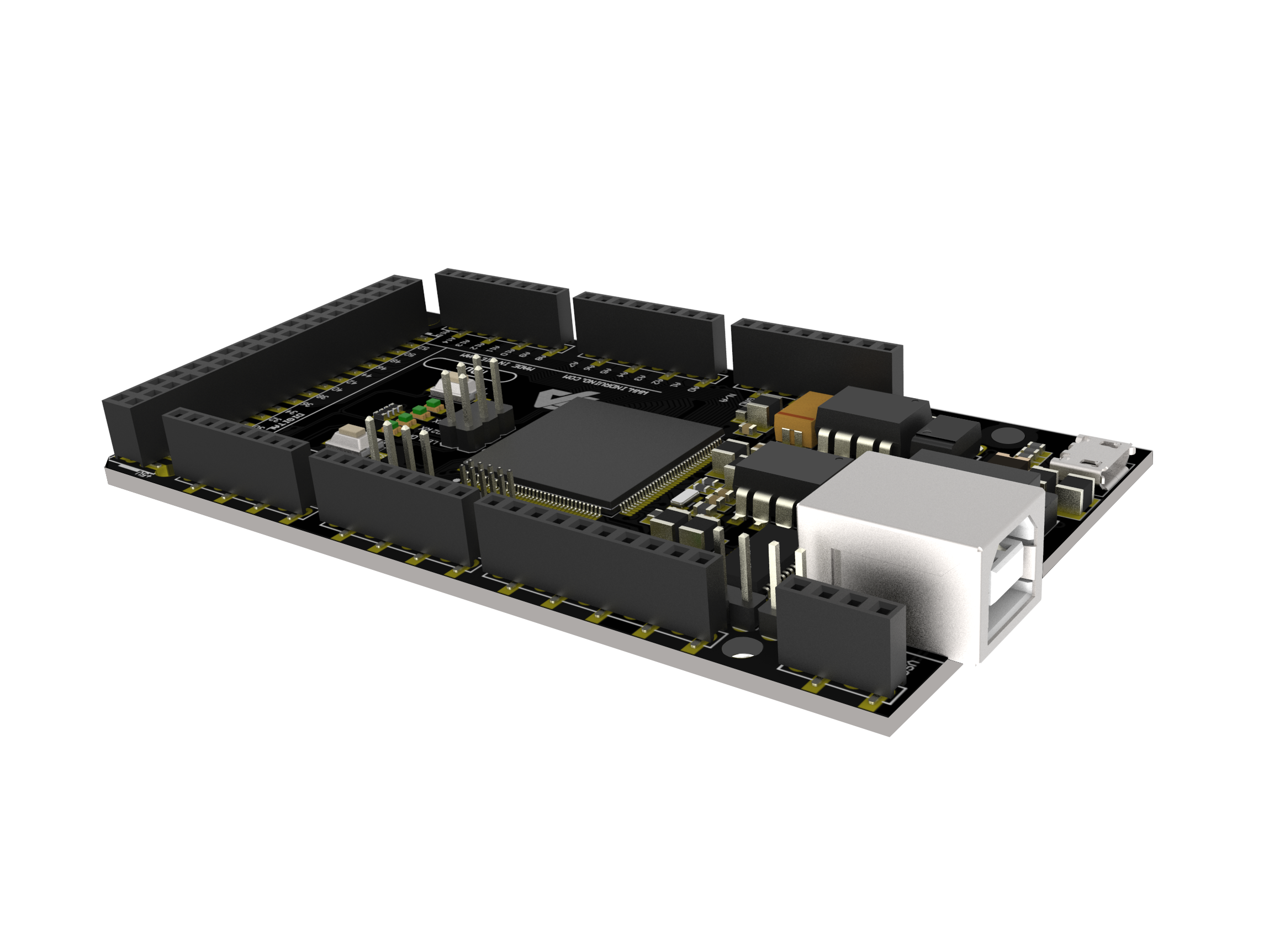

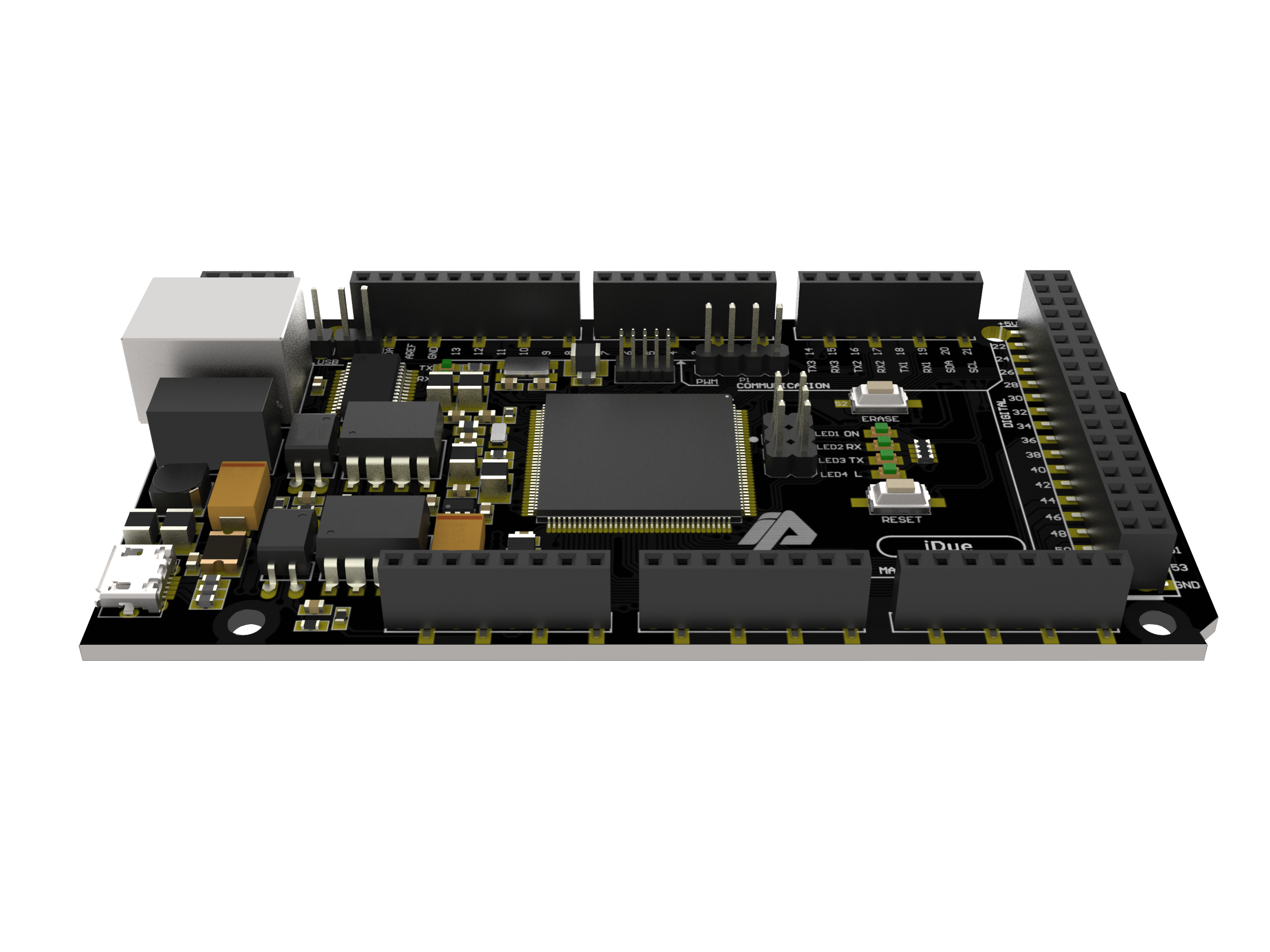

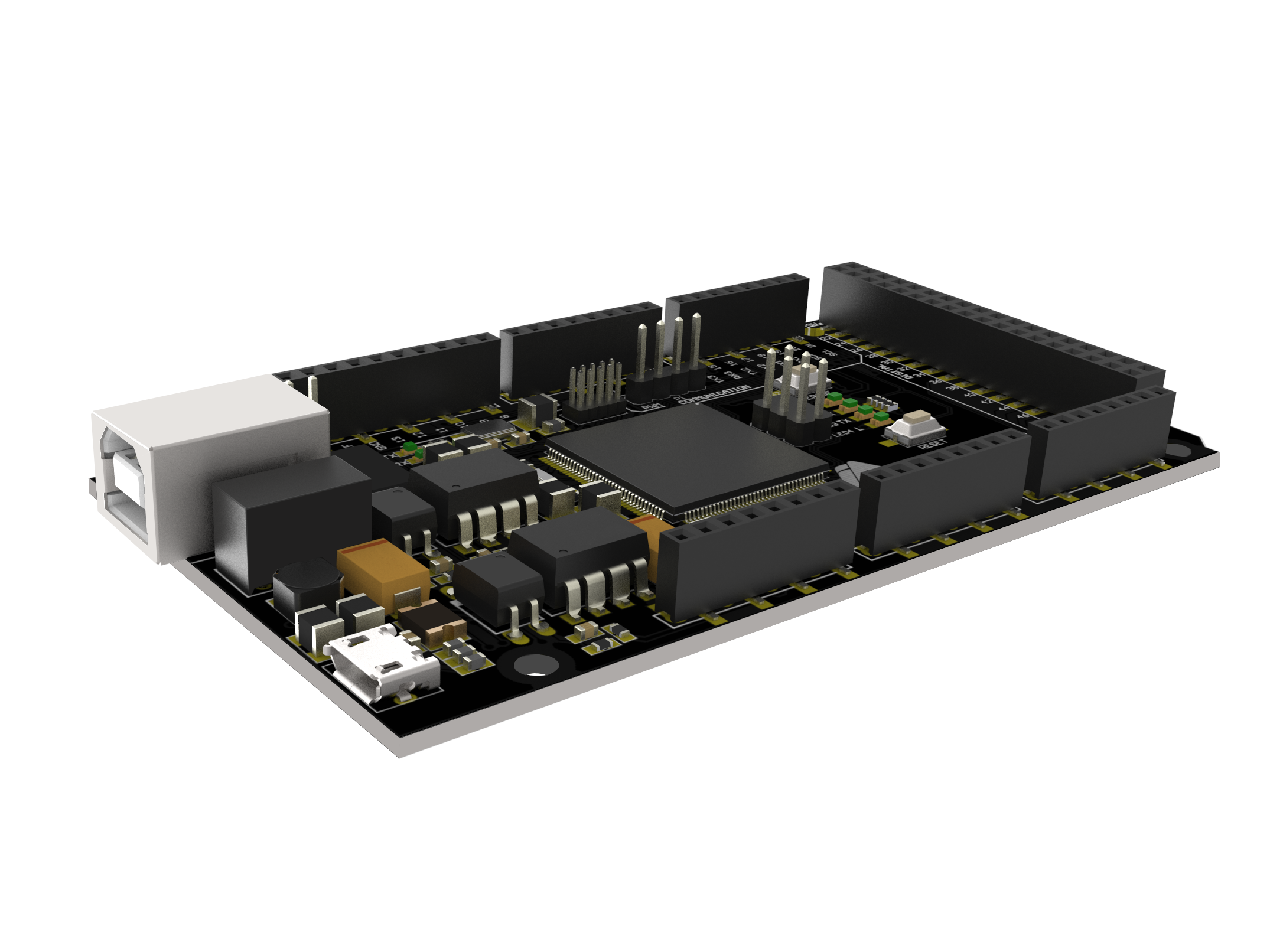

iDUE-USB ISOLATION

iDUE ISO

This product is redesigned based on the original Arduino Due. The product is designed to use in the industrial environment, stabilazation and reliable.

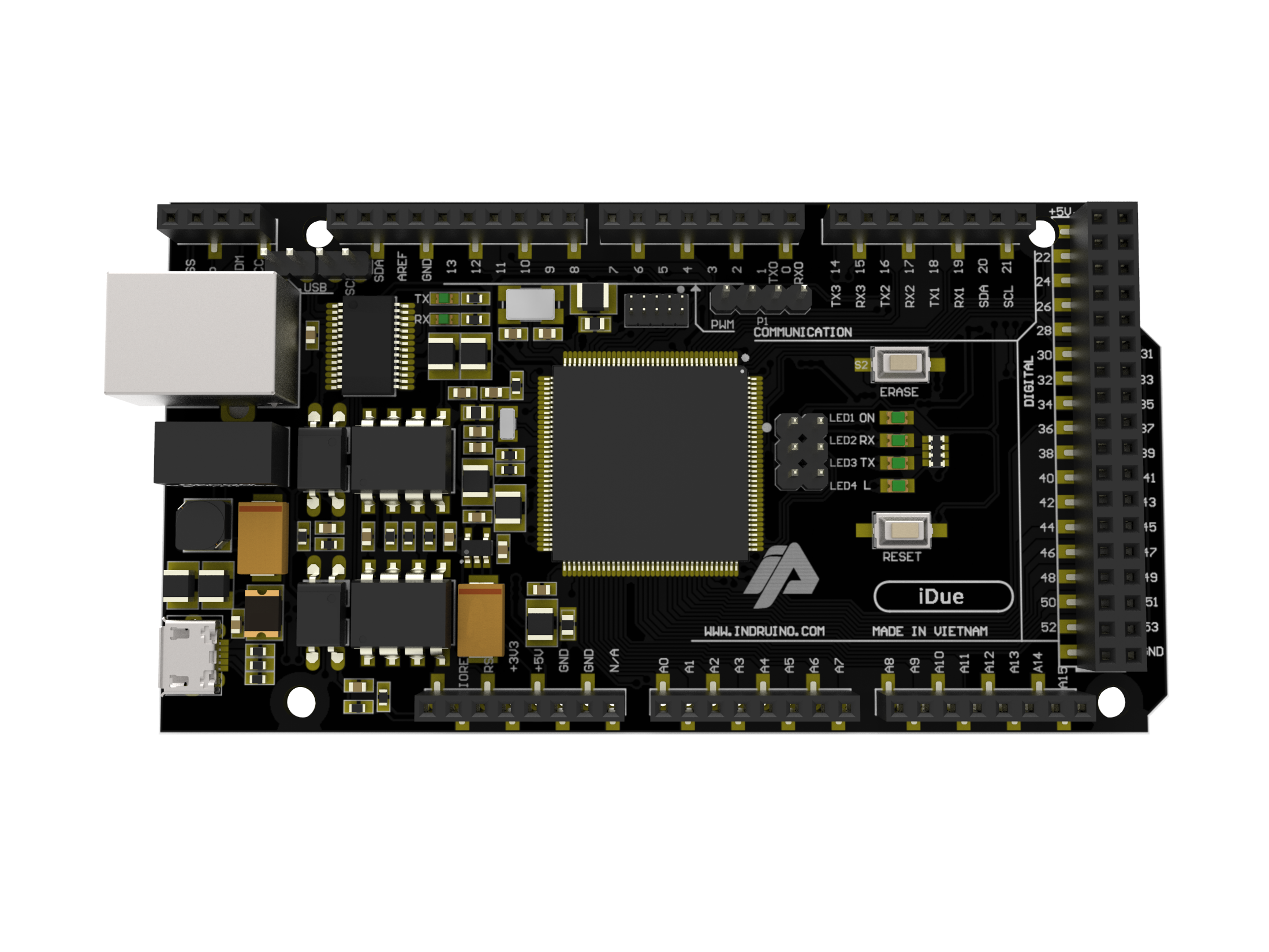

Key features :

- High speed USB 2.0 optocouplers, using FT232 chip from FTDI, the most famous USB interface chip in the world.

- Using the isolated DC/DC, fully isolated with the computer, helps create the stable connection, avoid devices & equipments damage in the high nosie environment.

- Using the high quality smd pin headers, good electric contact, may be connect from both directions.

- Power led & status leds.

- The dimensions are same with Arduino Due board.

Technical Specifications :

 - Microcontroller : AT91SAM3X8E

 - Power supply : 5V

 - Interface : USB 2.0, FT232 UART

 - Digital I/O pins : 54 (12 PWM Digital I/O pins)

 - Analog input pins : 12

 - Analog output pins : 2 (DAC)

 - Total DC current for all I/O pins : 130 mA

 - DC current for 3.3V pin : 800 mA

 - Flash memory : 512 KB

 - SRAM : 96 KB

 - Clock speed : 84 MHz

 - Led built-in : 13

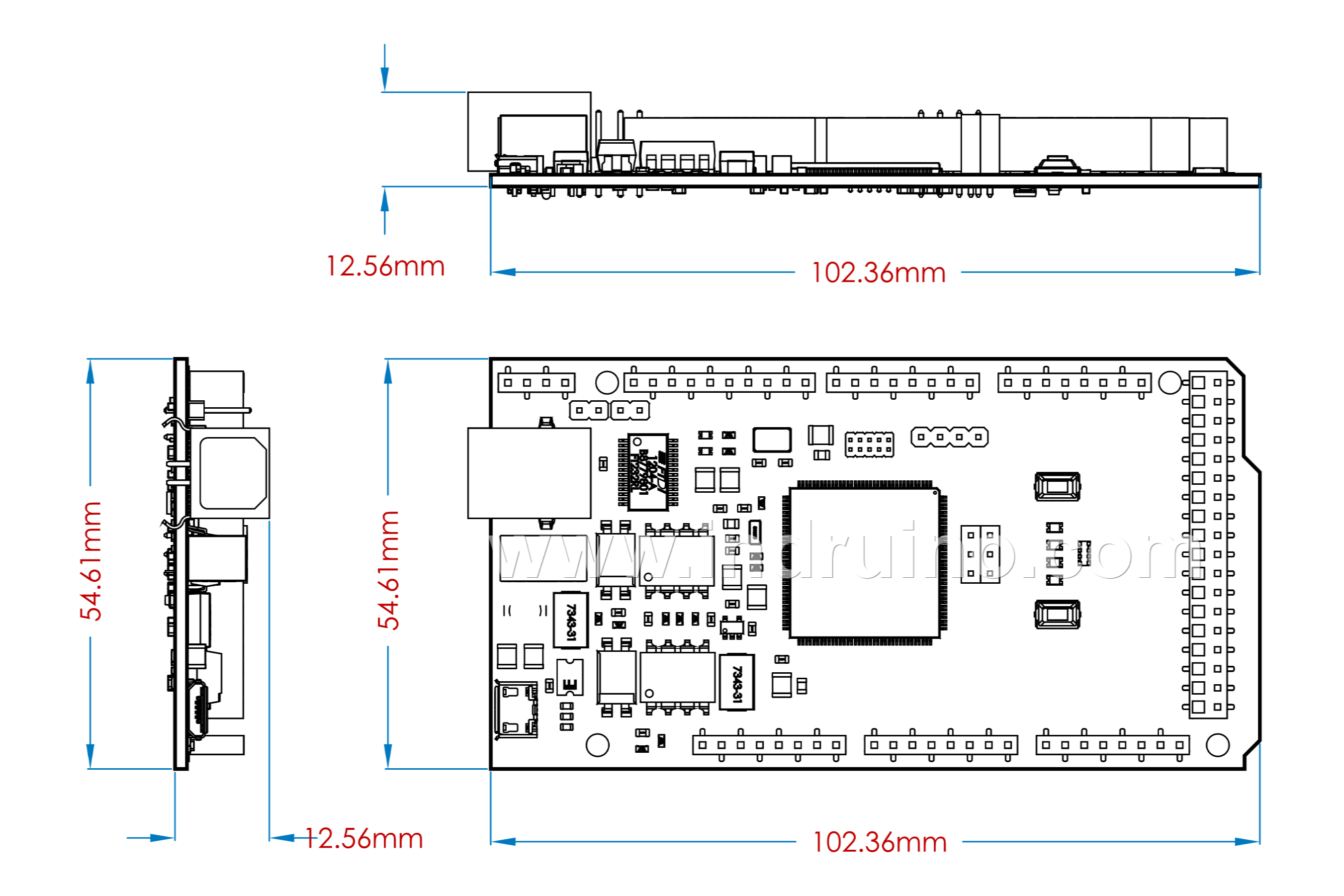

 - Dimensions (L x W x H) : 101.52 x 53.3 mm

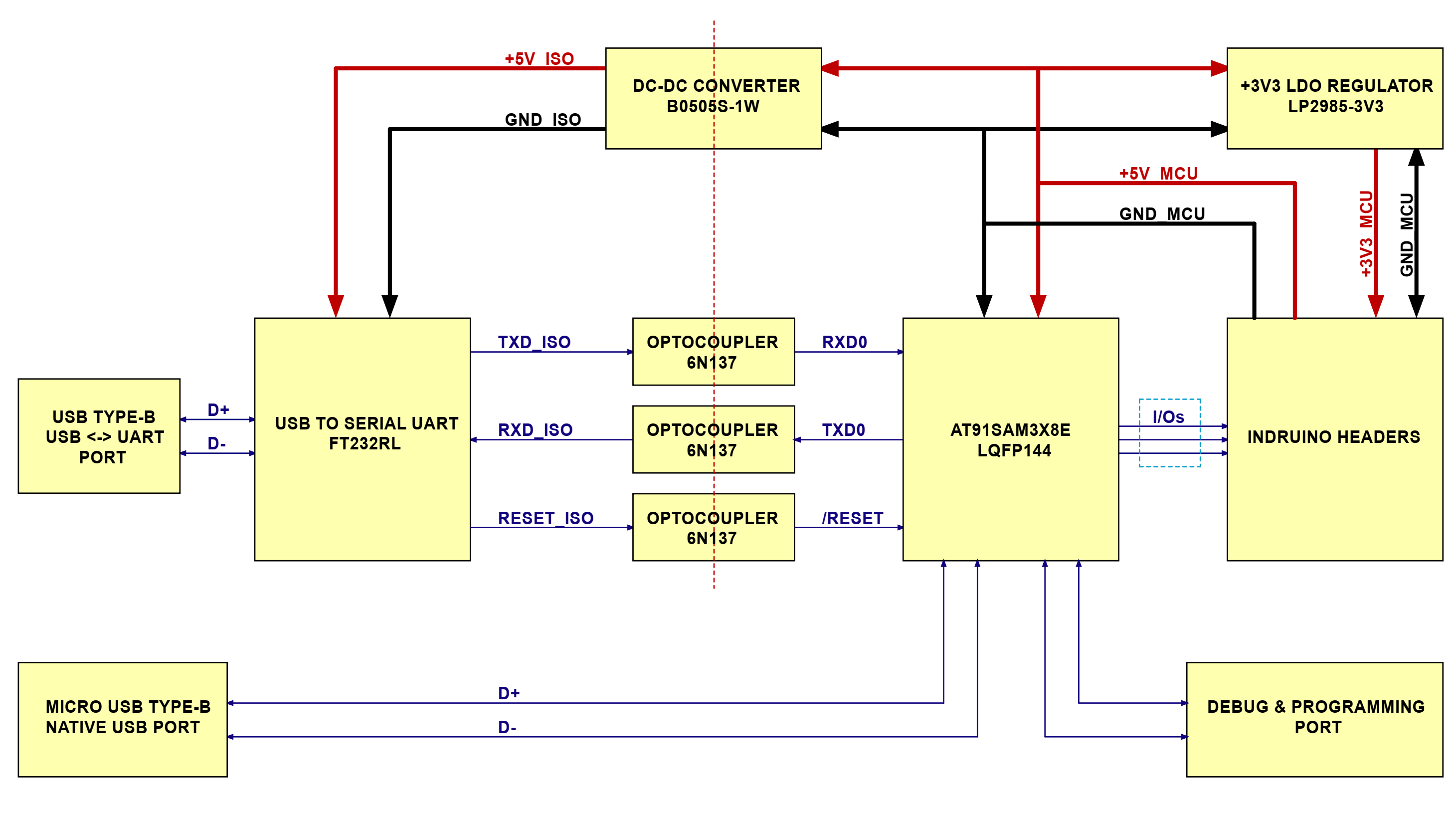

Block Diagram :


Download : https://drive.google.com/file/d/1SG4ZyL3Rat9wpkI43Js62q2ZamWO1HJj/view?usp=sharing
