iMEGA2560 USB ISOLATION

Description

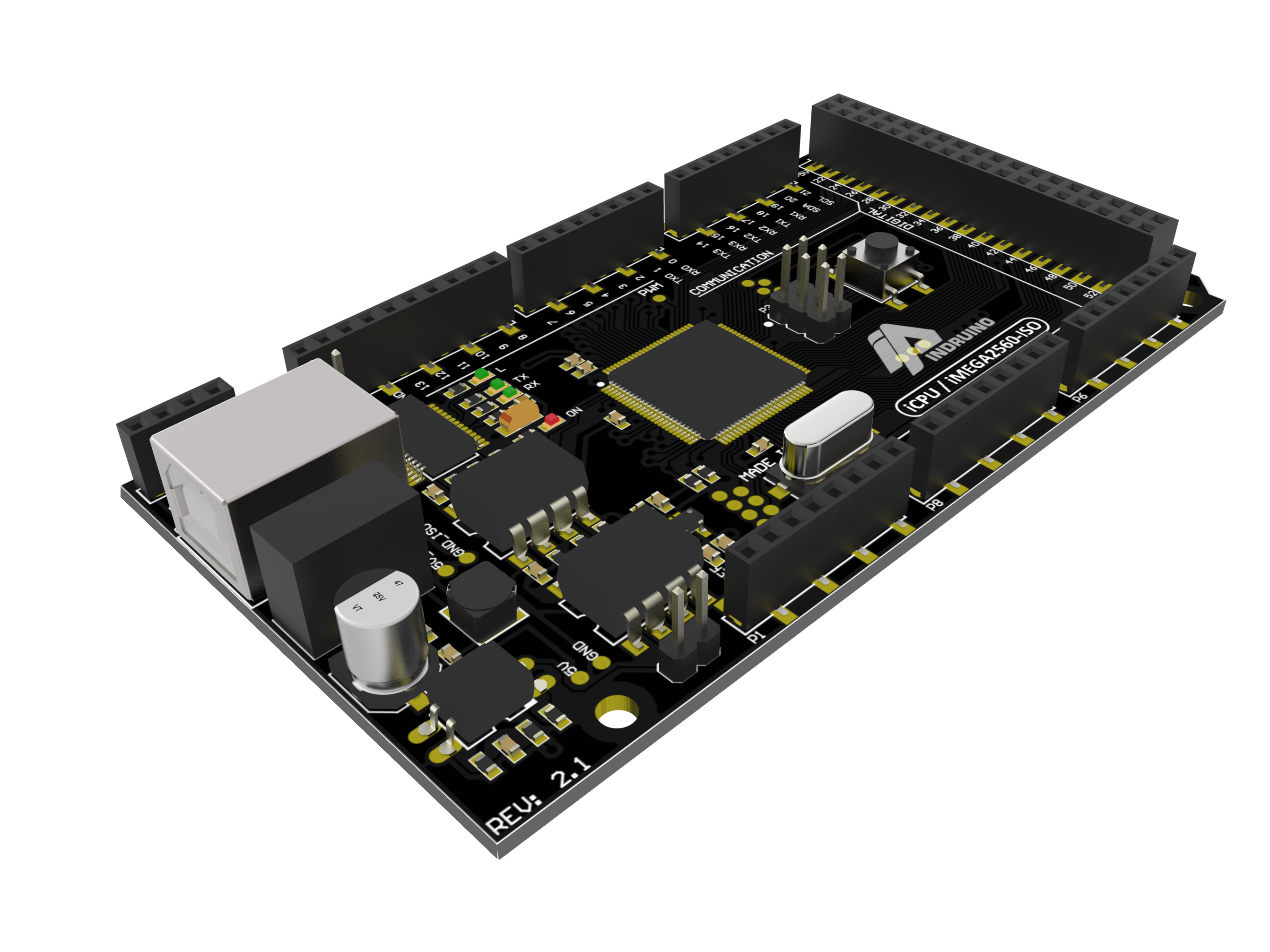

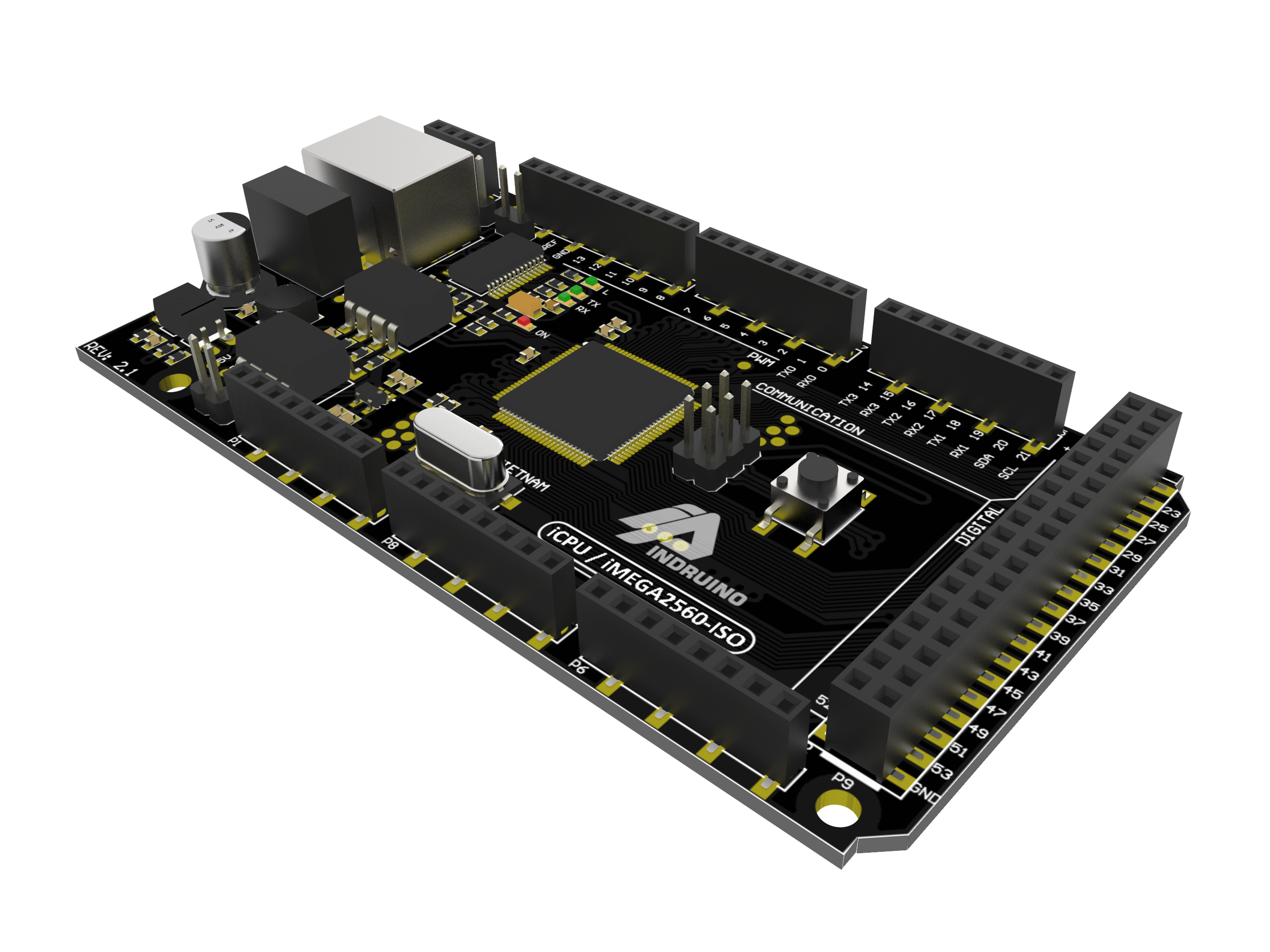

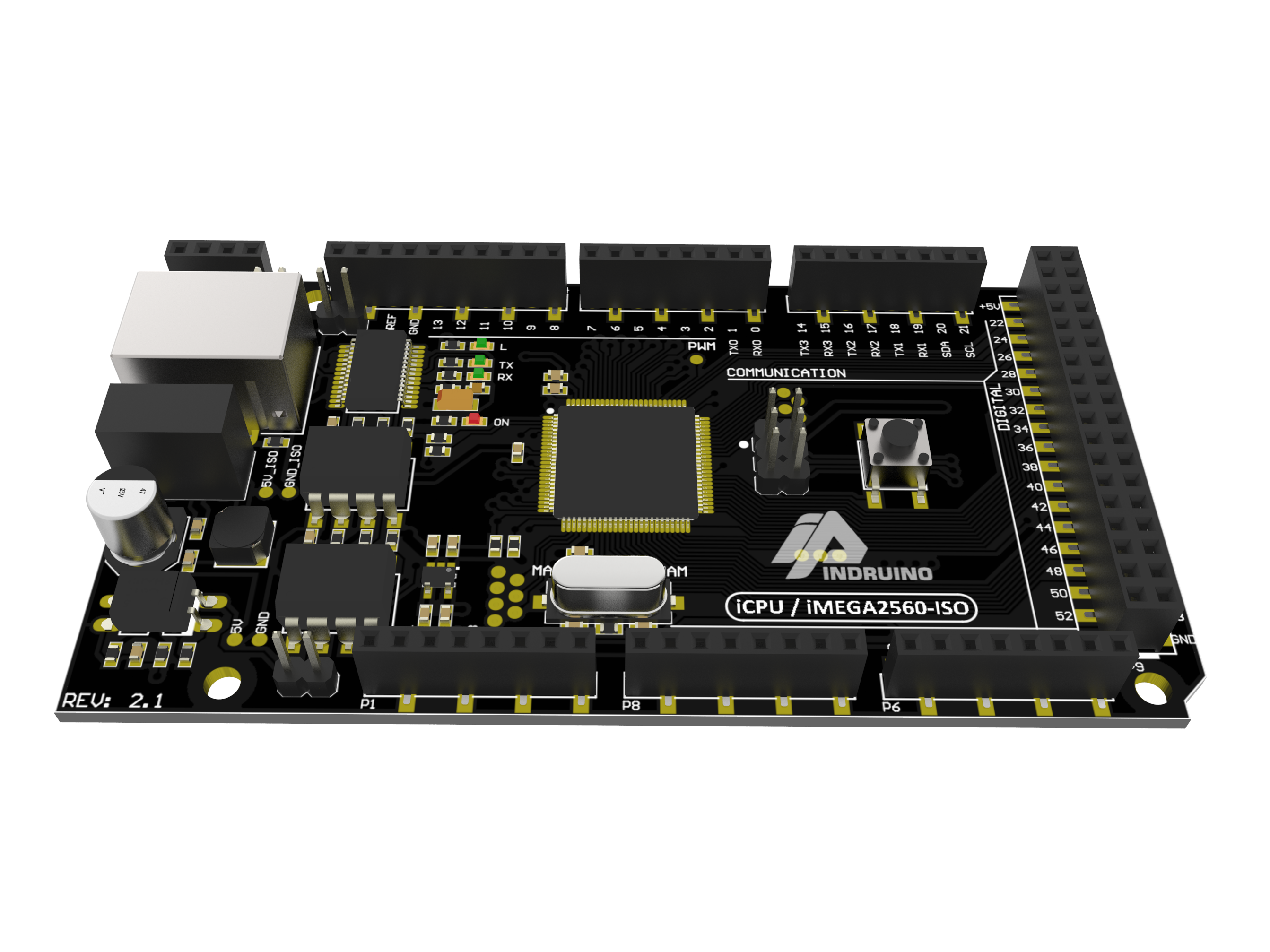

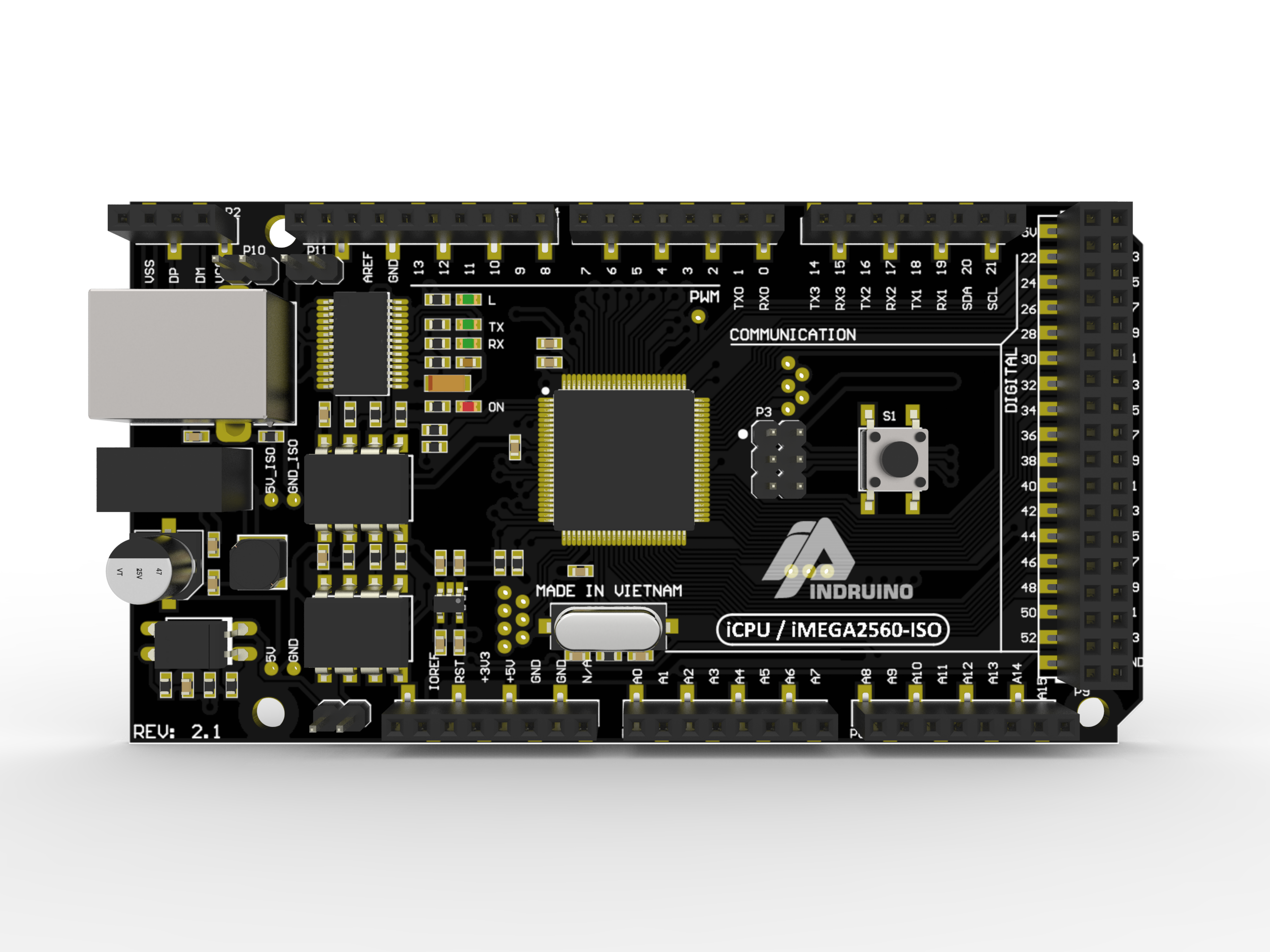

iMEGA2560 USB ISOLATION

This product is redesigned based on the original Arduino Mega2560. The product is designed to use in the industrial environment, stabilazation and reliable.

Key features :

- High speed USB 2.0 optocouplers, using FT232 chip from FTDI, the most famous USB interface chip in the world.

- Using the isolated DC/DC, fully isolated with the computer, helps create the stable connection, avoid devices & equipments damage in the high nosie environment.

- Using the high quality smd pin headers, good electric contact, may be connect from both directions.

- Power led & status leds.

- The dimensions are same with Arduino Mega2560 board.

Technical Specifications :

          - Microcontroller : ATmega2560

 - Power supply : 5V

 - Interface : USB 2.0, FT232 UART

 - Digital I/O pins : 54 (15 PWM Digital I/O pins)

 - Analog input pins : 16

 - DC current for 3.3V pin : 50 mA

 - DC current per I/O pin : 20 mA

 - Flash memory : 256 KB

 - SRAM : 8 KB

 - EEPROM : 4 KB

 - Clock speed : 16 MHz

 - Led built-in : 13

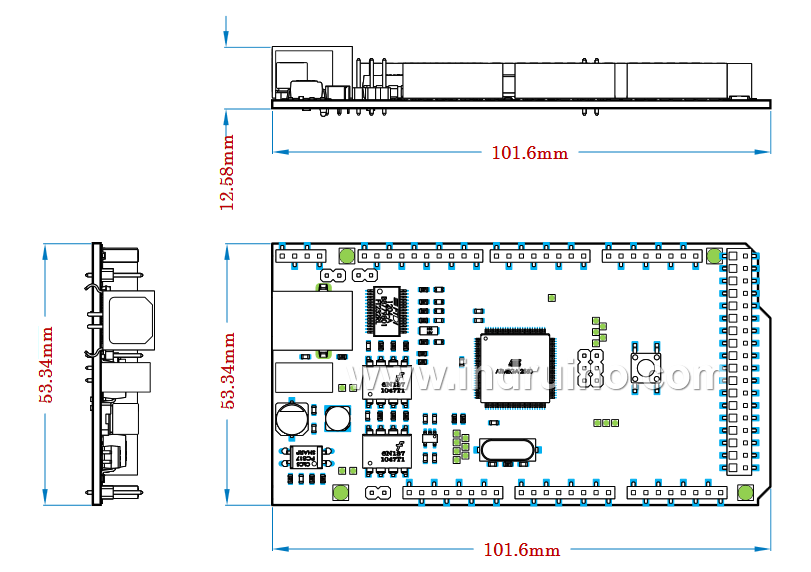

 - Dimensions (L x W x H) : 101.52 x 53.3 mm

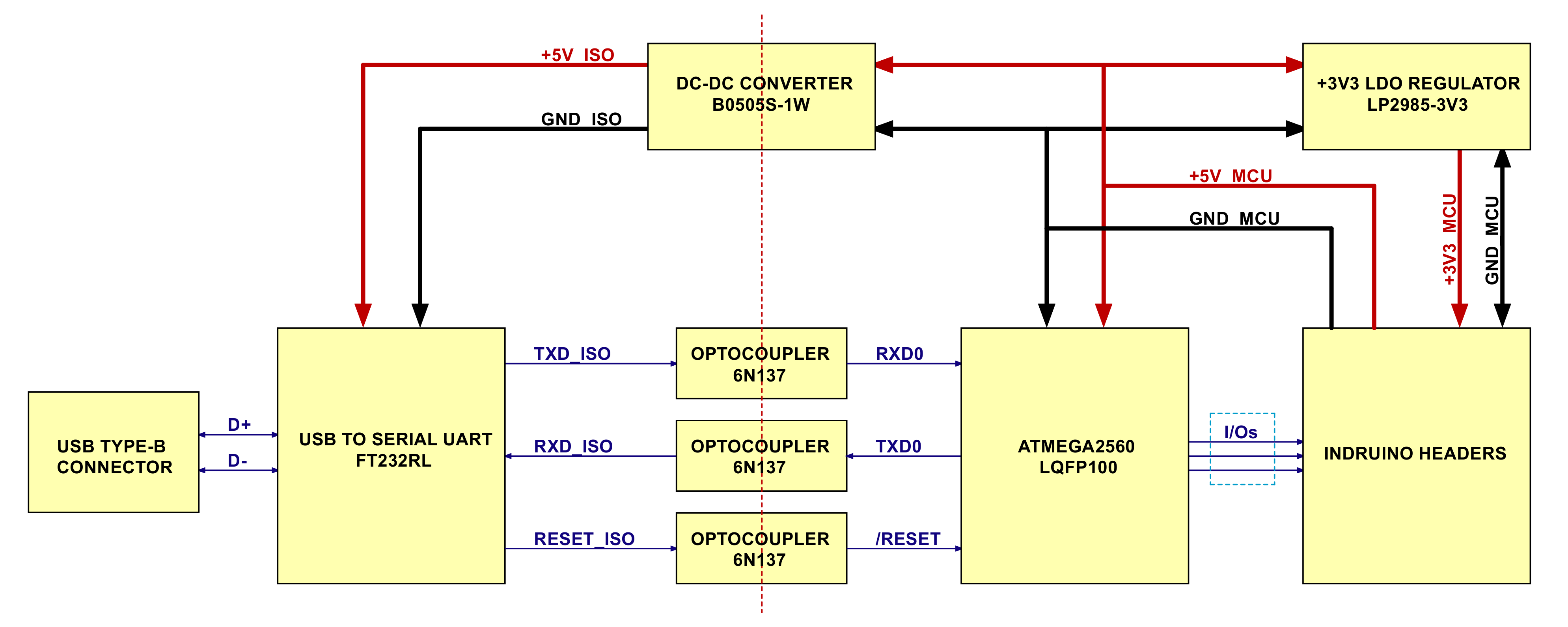

Block Diagram :



Download : https://drive.google.com/file/d/17Vd8mH4EOD6iafdzIjIWSkWFW65CJ42I/view?usp=sharing
