ENTHERNET TO UEXT/SD/RTC

ENTHERNET TO UEXT/SD/RTC_V1

This product is used in those applications such as ethernet, IoT. This product is industrial designed, ability to run stable and reliable.

Key features :

- TCP/IP to UART TTL converting using W5100 ethernet chip and ARM Cortex M3 STM32F103.

- Supports SD card, FRAM and RTC chip.

- Config parameters via webserver.

- Power supply & status led indicators.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply : 5V

- Protocol : Ethernet

- Interface : UART

- Duplex : Full

- Baudrate : Config by user

- Dimensions (L x W) : 85 x 53.34 mm

- Weight : 20 g

- Other features : Support Micro SD Card, RTC

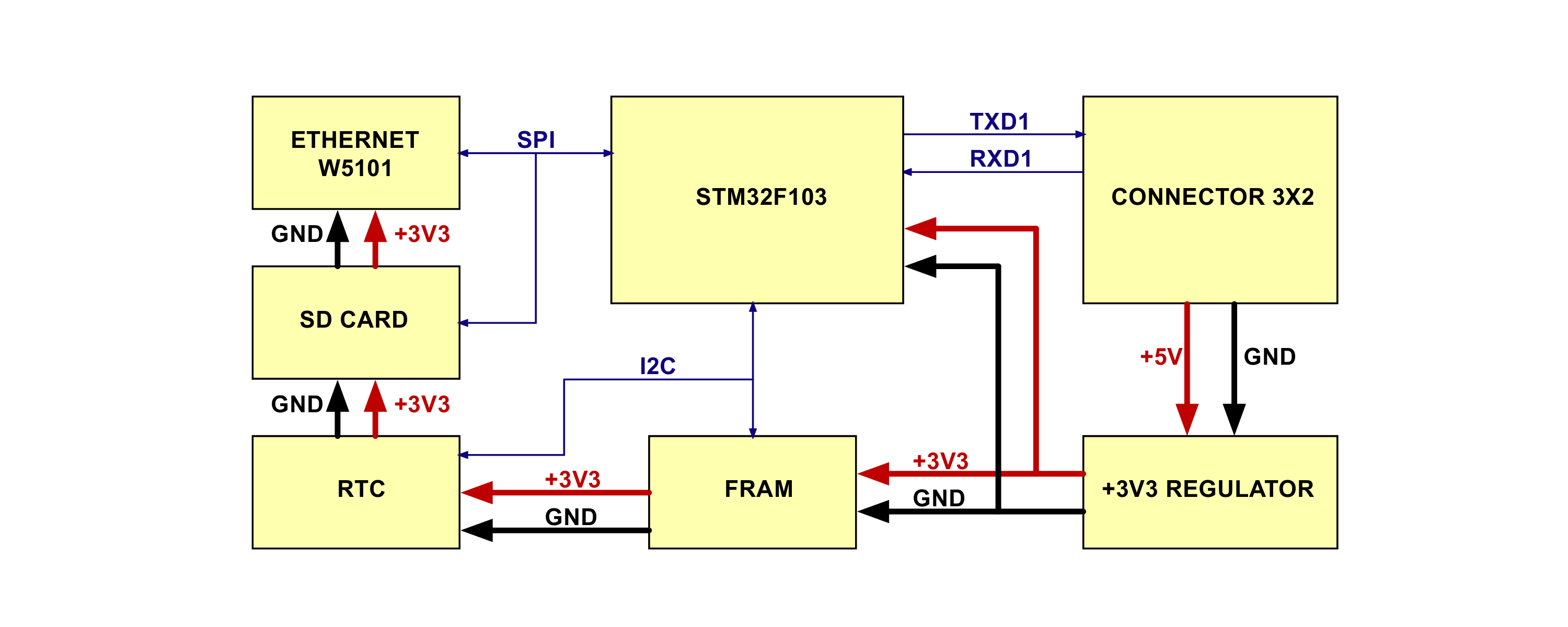

Block Diagram :

Datasheet : https://drive.google.com/file/d/15swKPYzjy3fa0dHsGIsfmeXwTIAd2h8P/view?usp=sharing
