WIRELESS nRF TO RS232/485

WIRELESS nRF TO RS232/485

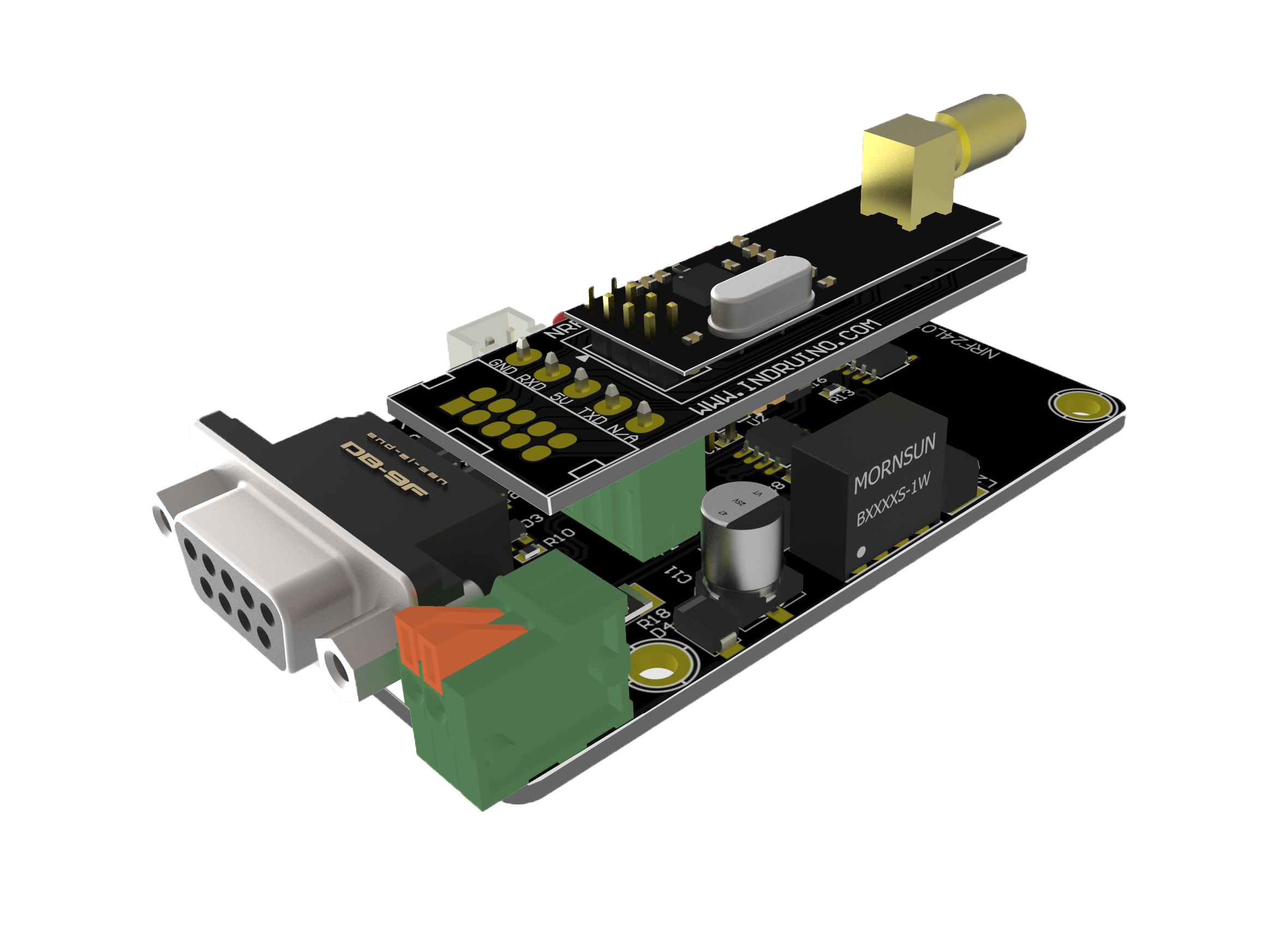

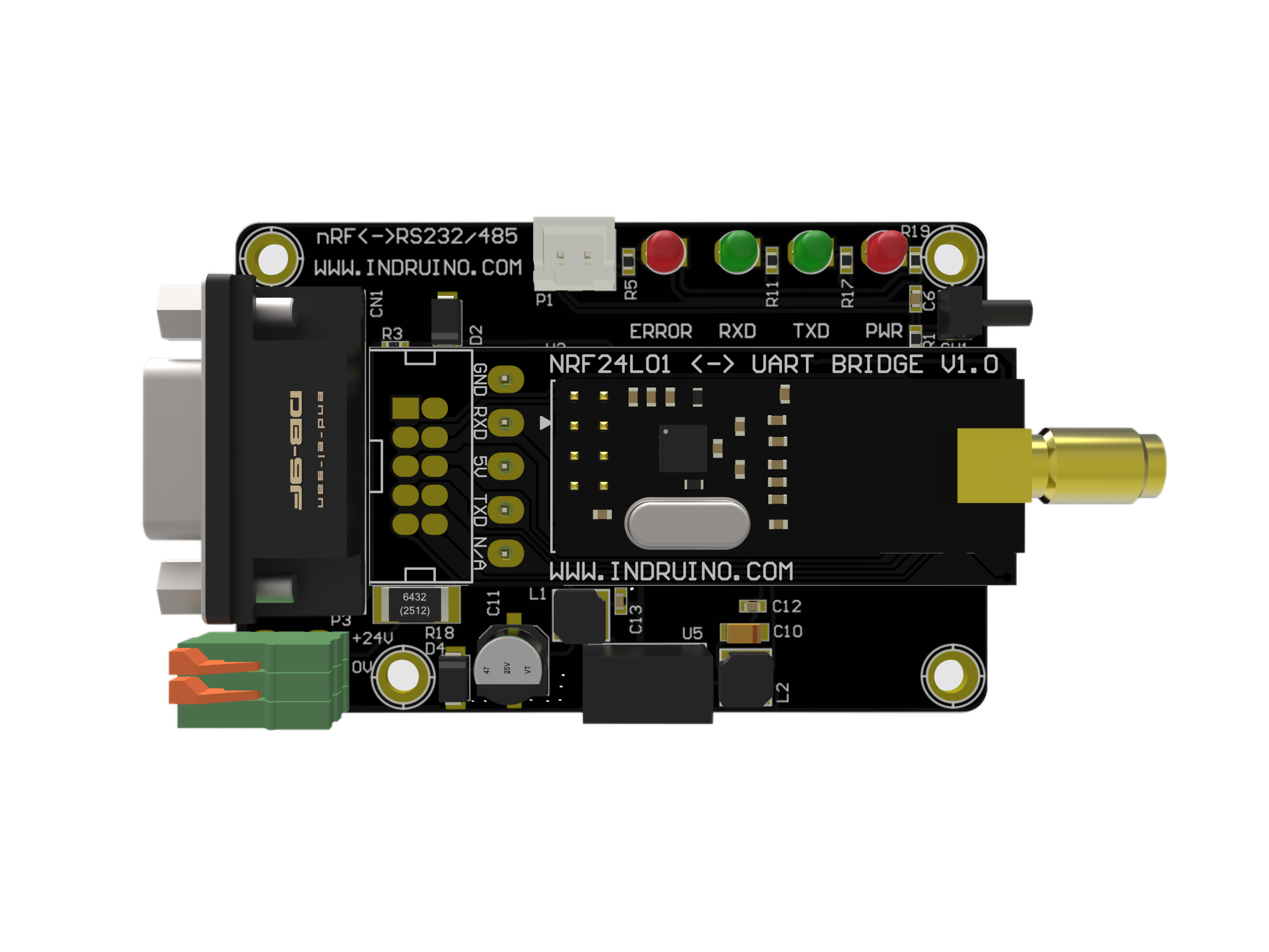

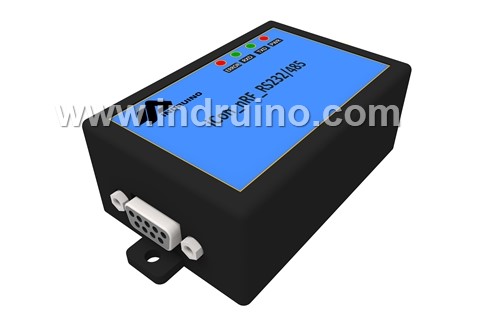

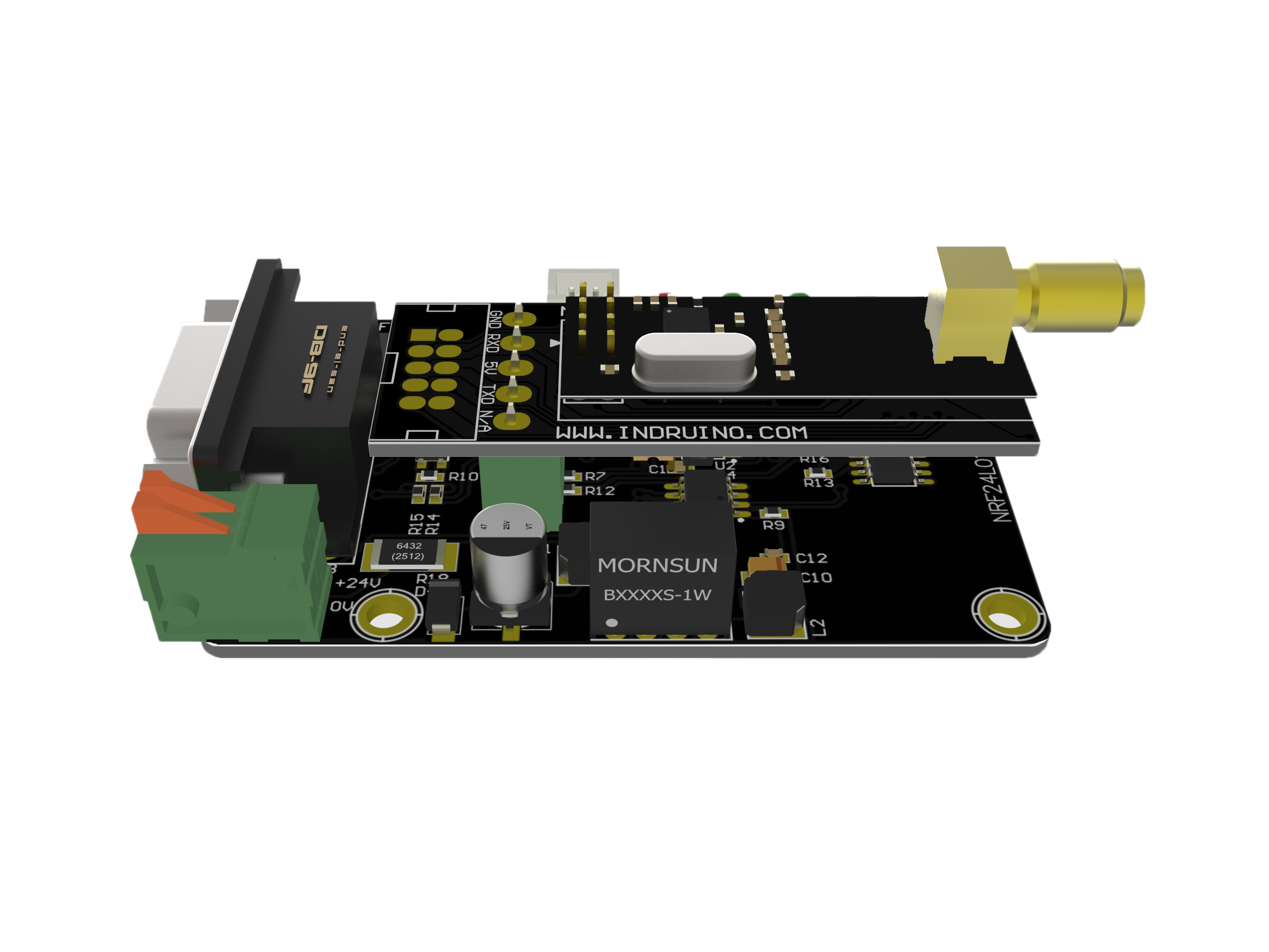

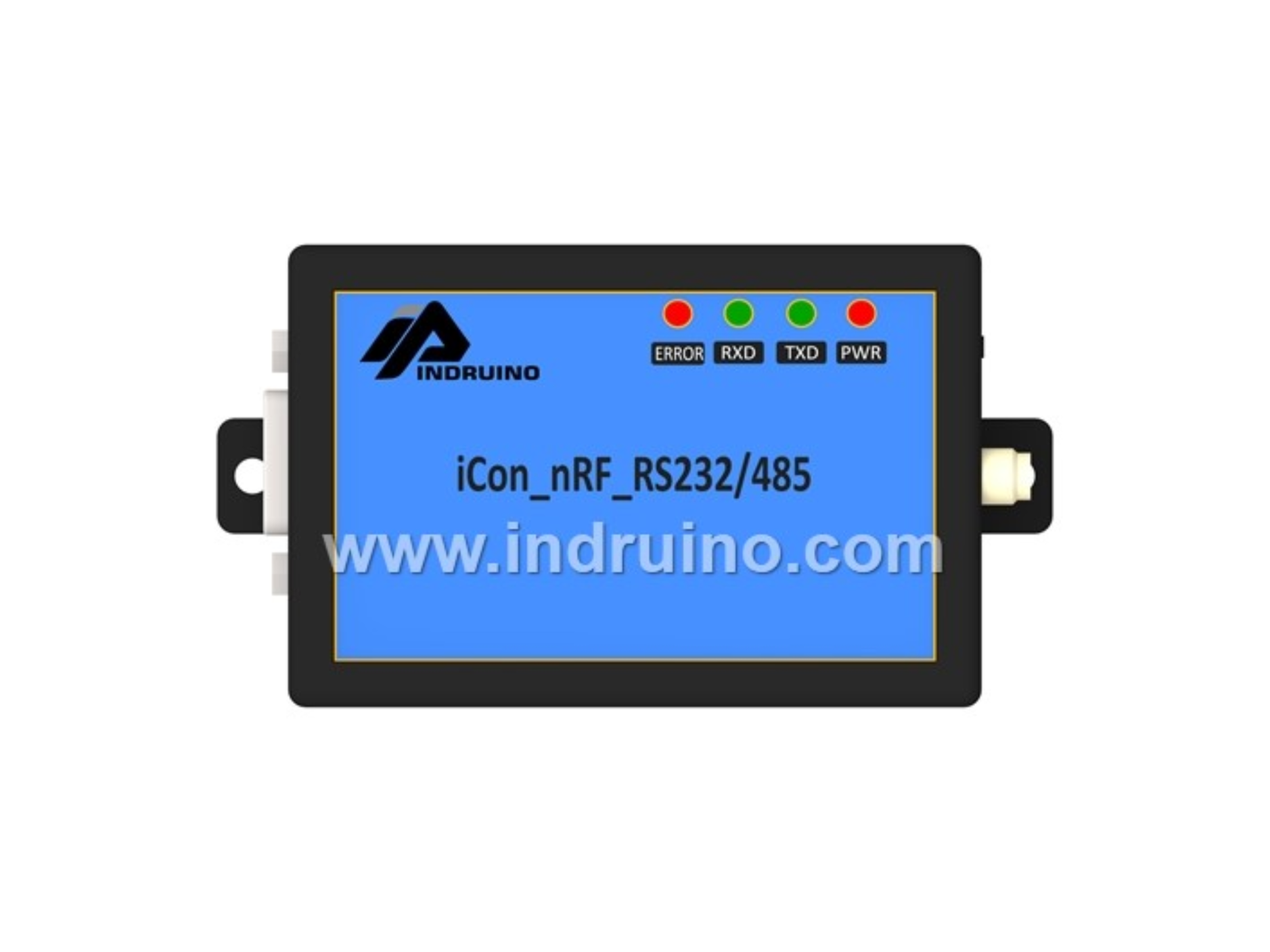

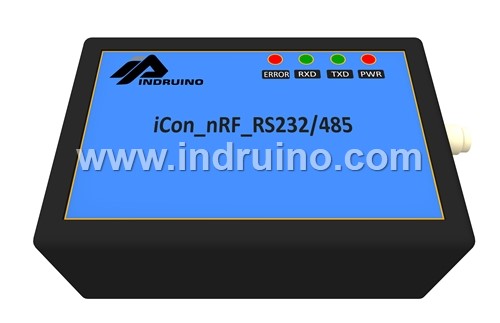

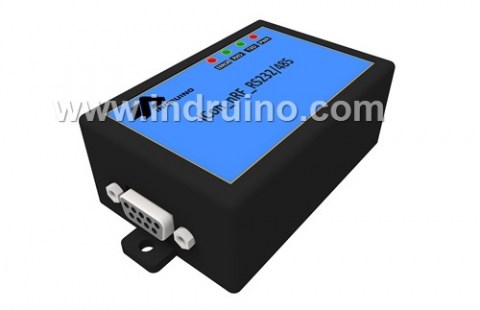

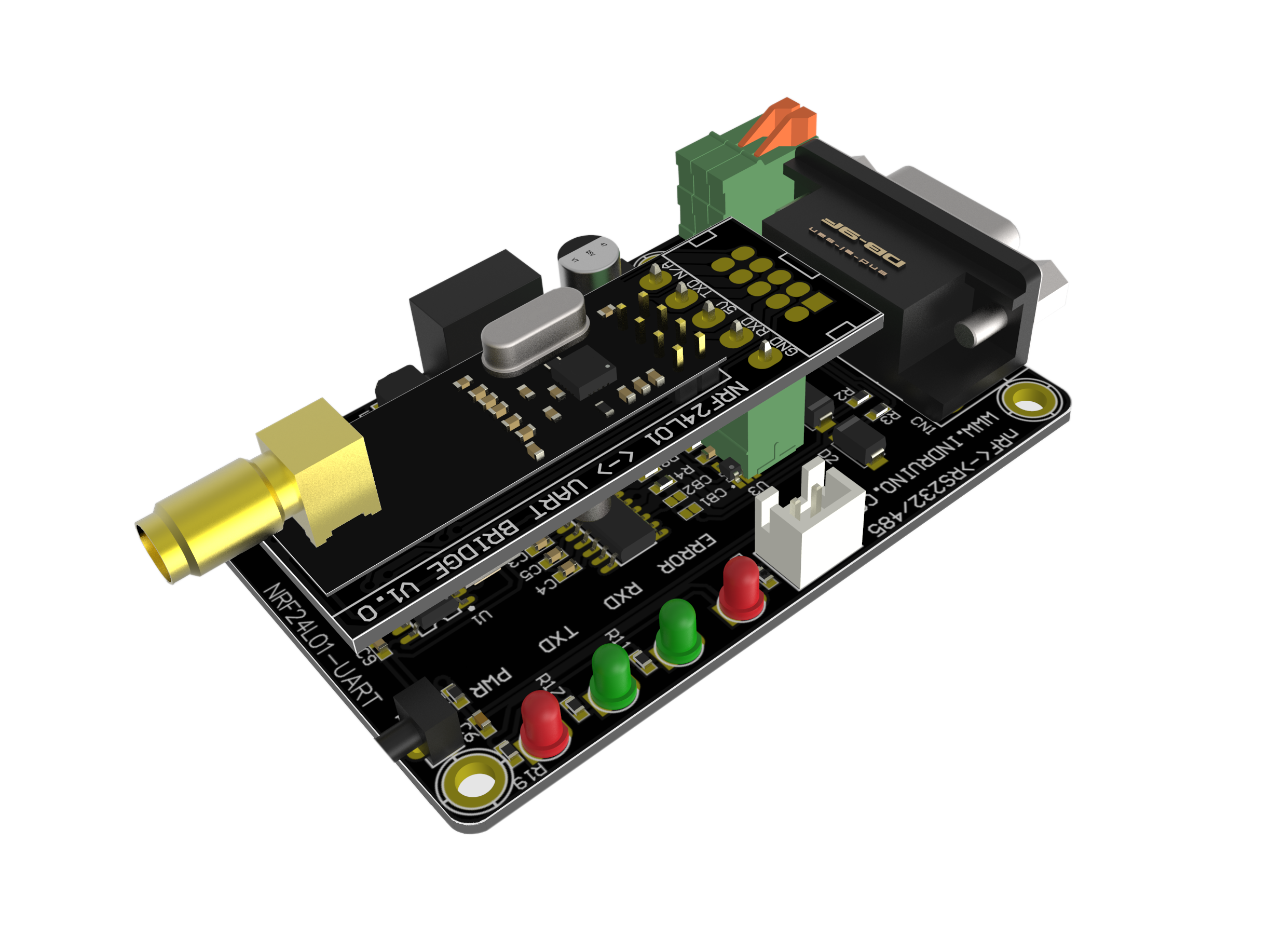

- This wireless tranceive module is special designed for wireless communication applications.

- The wireless protocol could be RF, Wifi, BLE, Lora, etc.

- The output data will be converted to RS232/RS485 to communicate with the other industrial devices. It also has the LED indicators to show error, transmit and receive data status.

TECHNICAL SPECIFICATIONS

- Supply voltage    : 24 VDC

- Max current        : 200 mA

- Max power         : 1 W

- Frequency range : 2.4 Ghz

- Wireless protocol : RF, Wifi, Lora, BLE...

- Max distance       : 1 km

- Interface             : RS232/ RS485

- Others features    :

                         + Settings params via serial command

                         + Reset to default settings

                         + LED indicator

- Dimensions (LxWxH) : 80x50x30 mm
