iADC-2CI-ISOLATION MODULE

Description

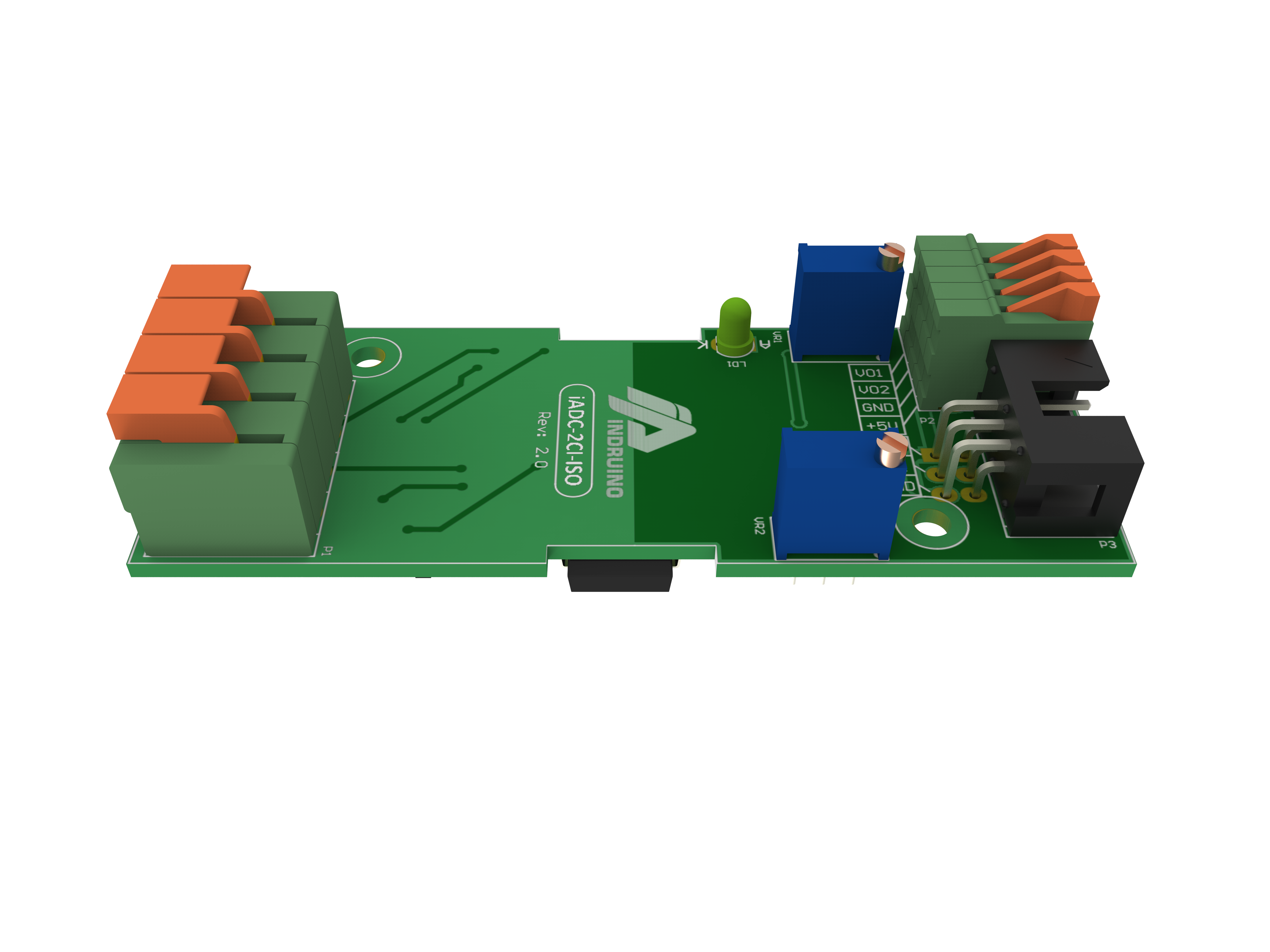

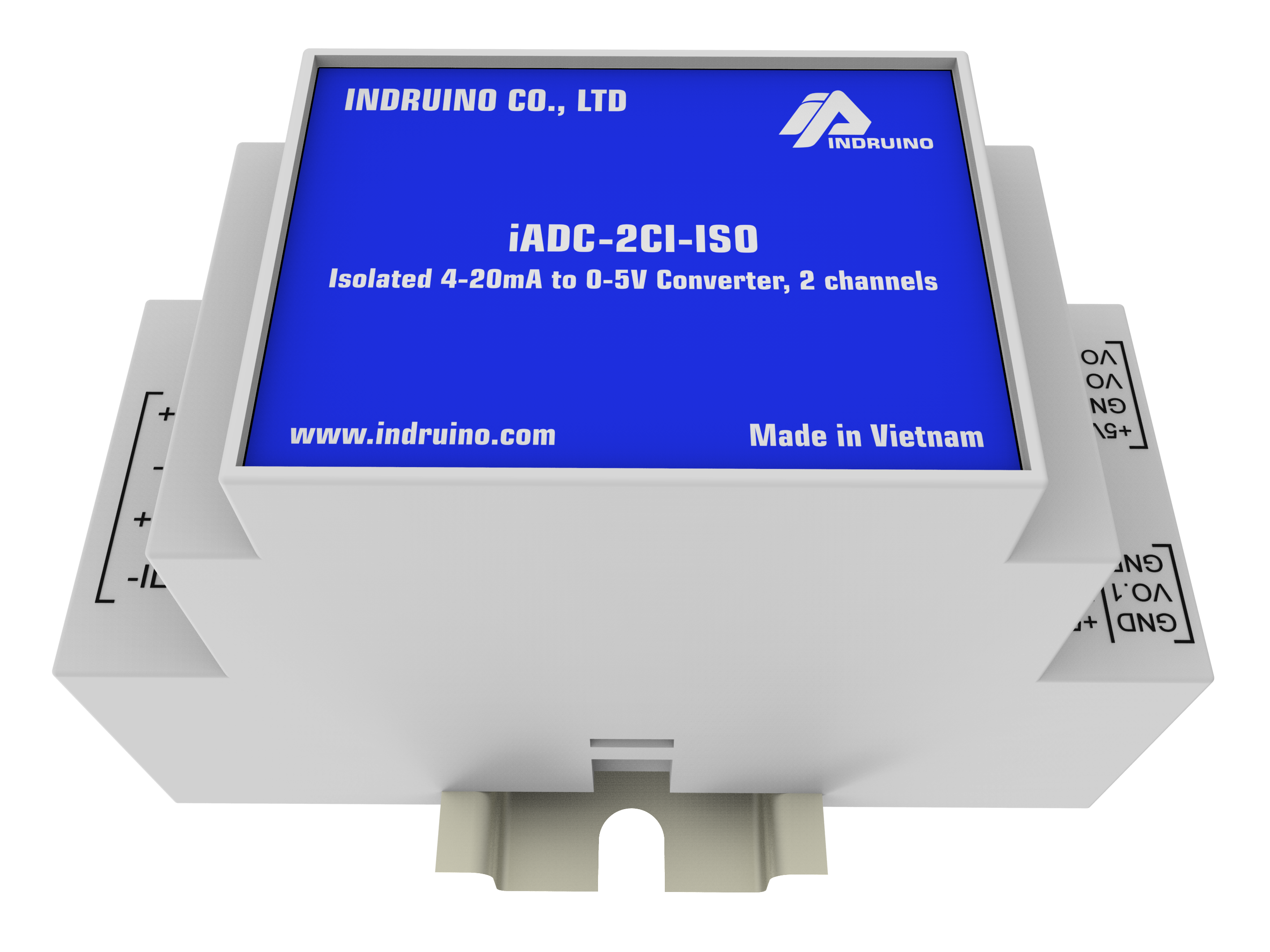

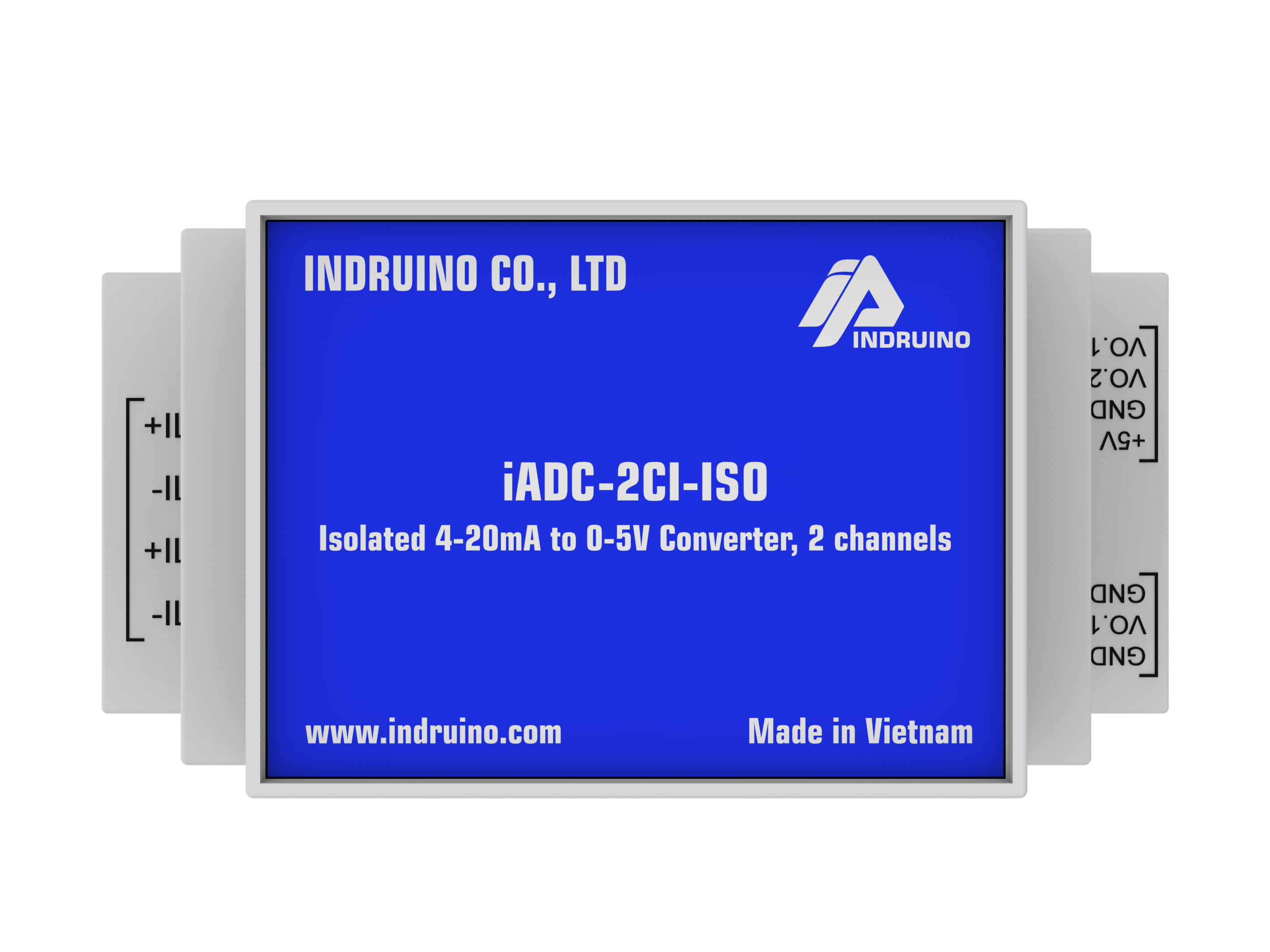

iADC-2CI-ISOLATION MODULE

This product is used for converting the industrial current signal range from 4-20mA to 0-5V analog signal range which is compatible with almost MCUs.

Key features :

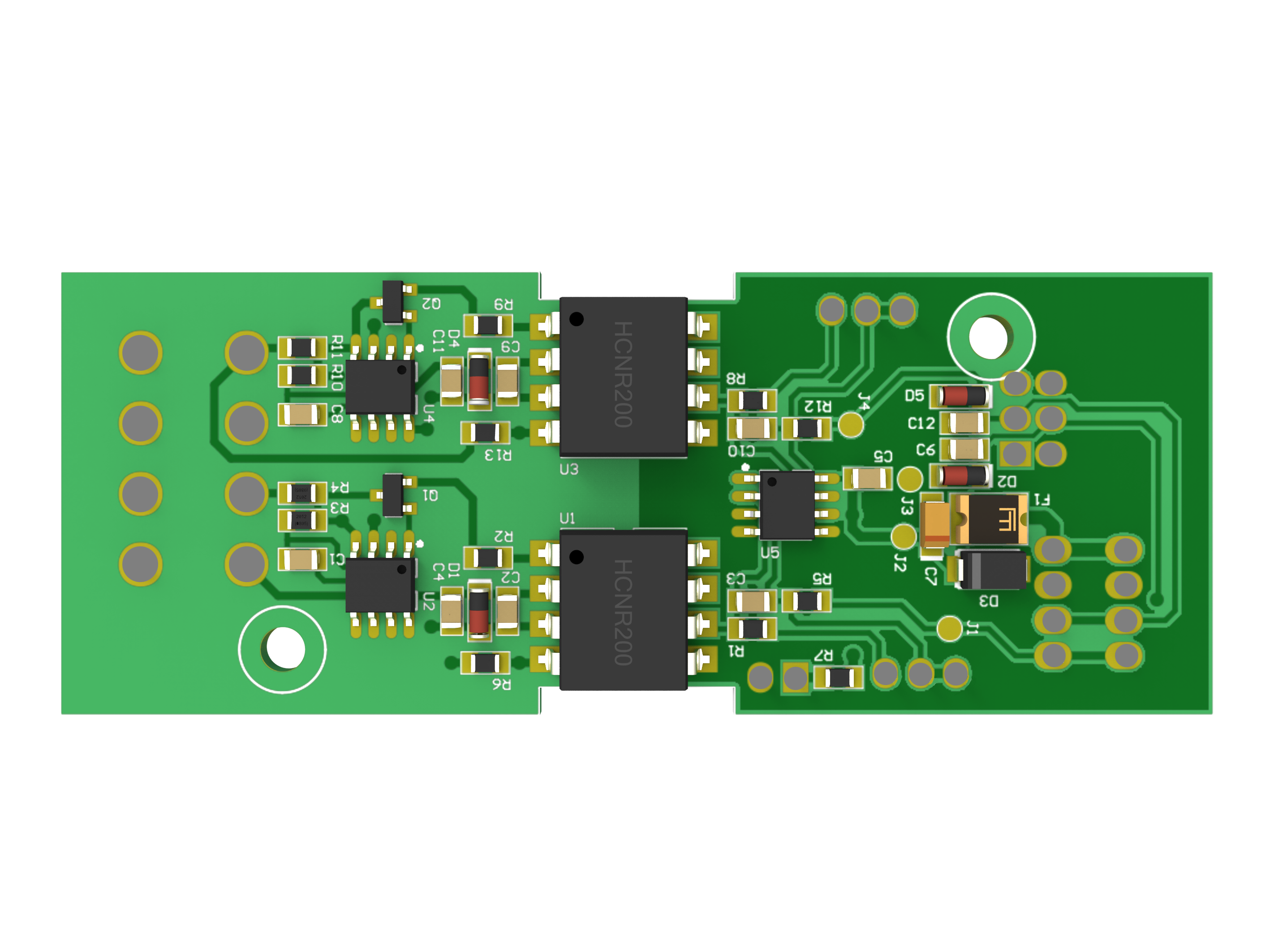

- Industrial standard design, using the high quality analog optocoupler, reduces noise from outside environment.

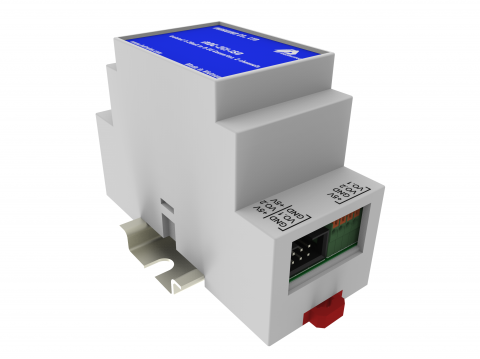

- Using the spring contact connector and IDC 3x2 connector, easy to assemly, replace or maintain.

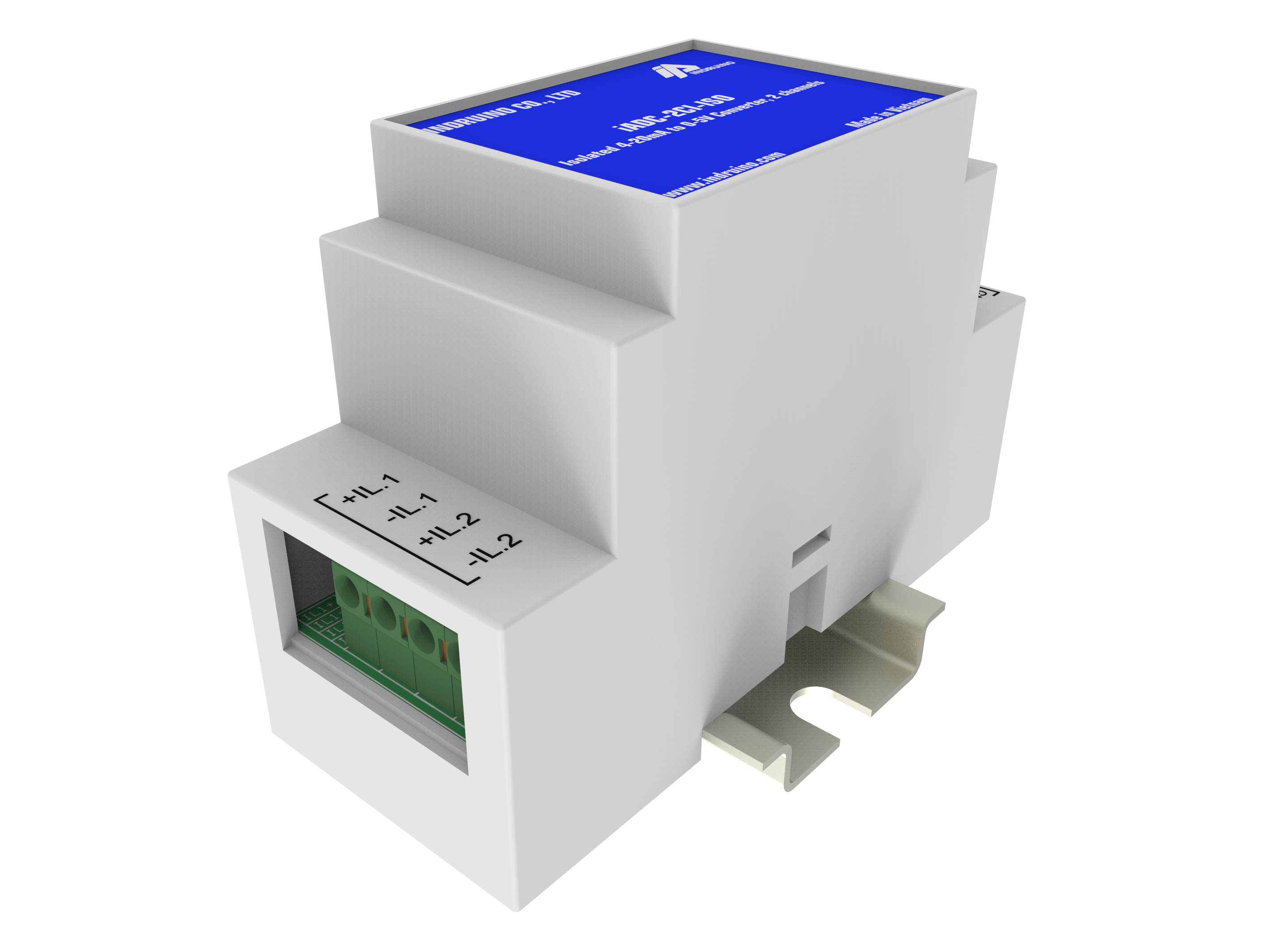

- Small size, compatible with dinrail standard.

Technical Specification :

- Power supply : 5V

- Num of channels : 2

- Input current : 4 ÷ 20 mA

- Output voltage : 0 ÷ 5V

- Isolation voltage : 5000Vrms

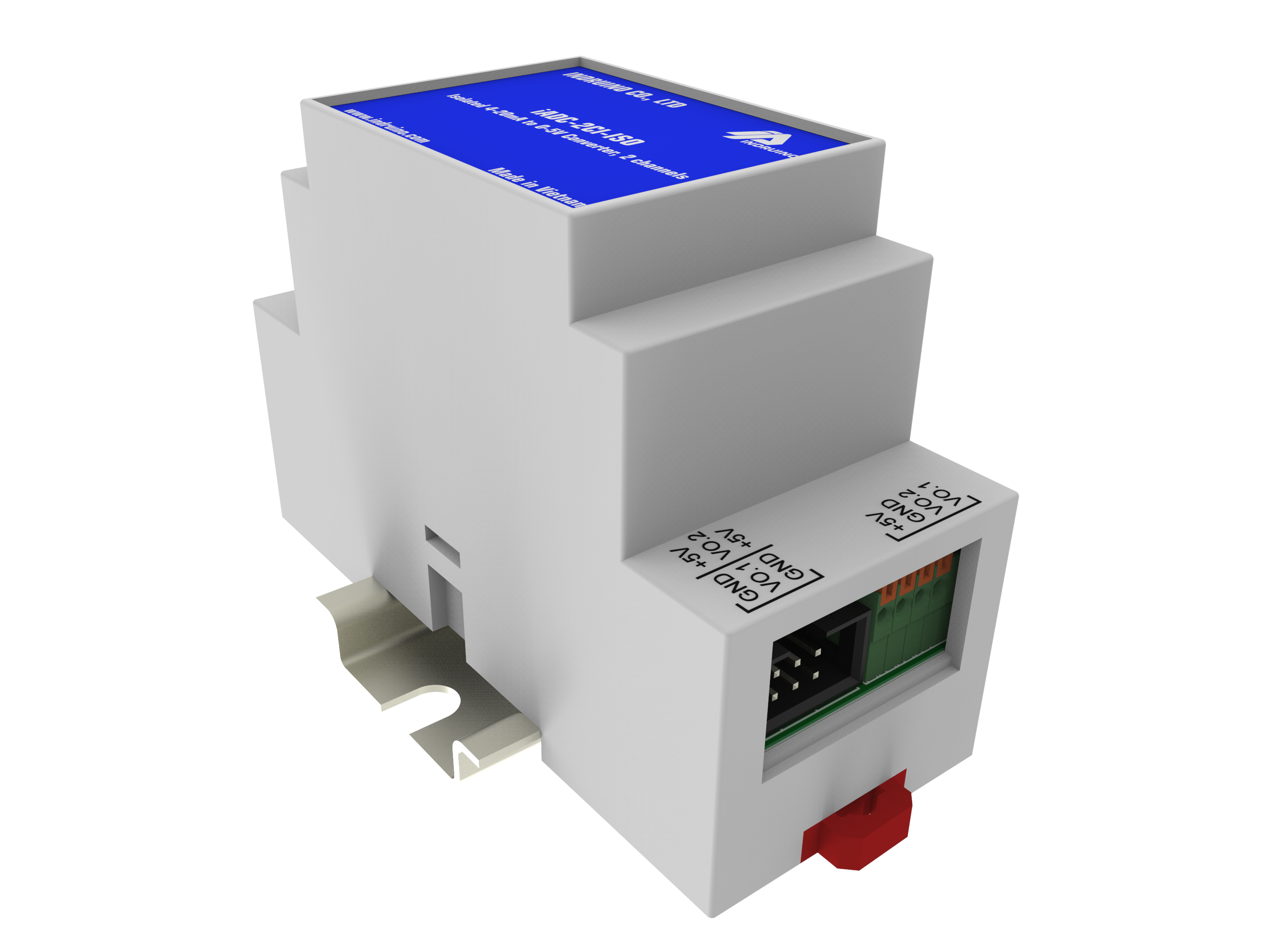

- Assembly method : Dinrail

- Dimensions (LxWxH) : 72 x 42 x 19 mm

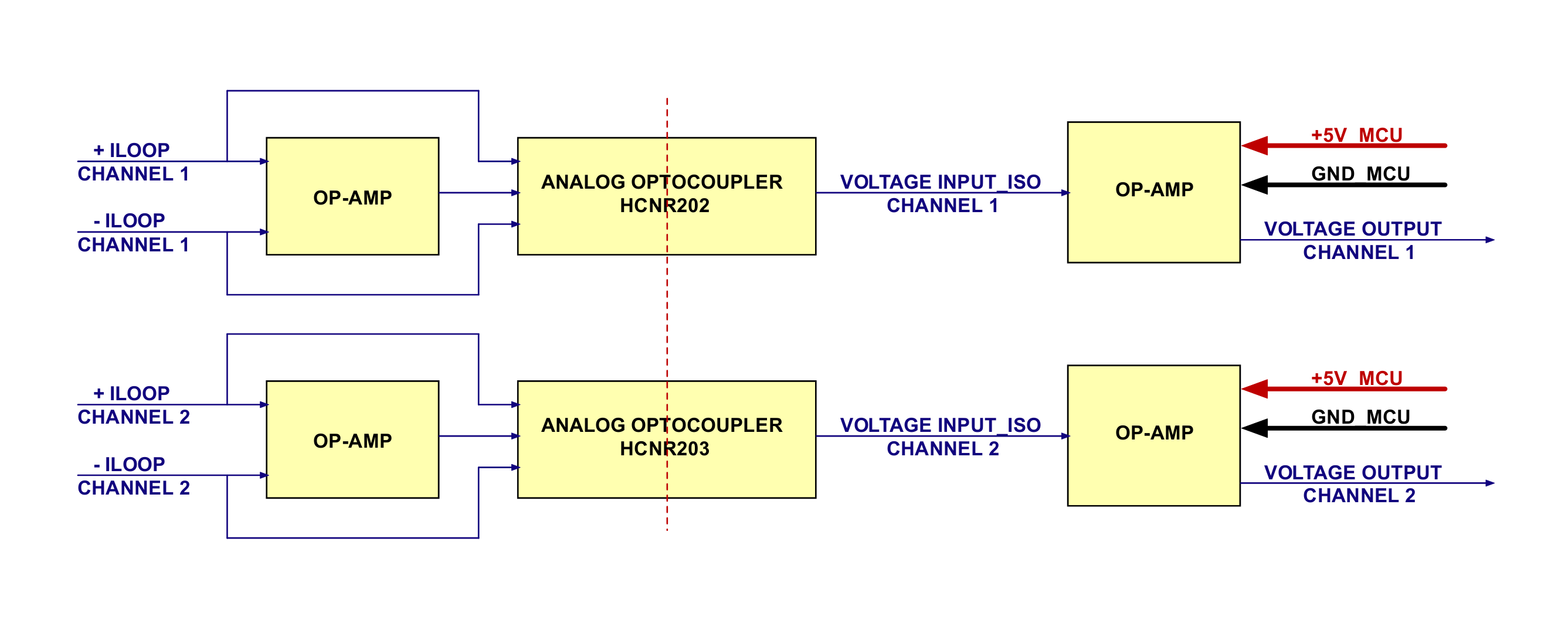

Block Diagram :

Download : https://drive.google.com/file/d/1S2R4xQrF6mc9LJ4T11wIrEY_Xf6aVmx1/view?usp=sharing
