MEGA2560 PRO EMBED

Description

MEGA2560 PRO EMBED

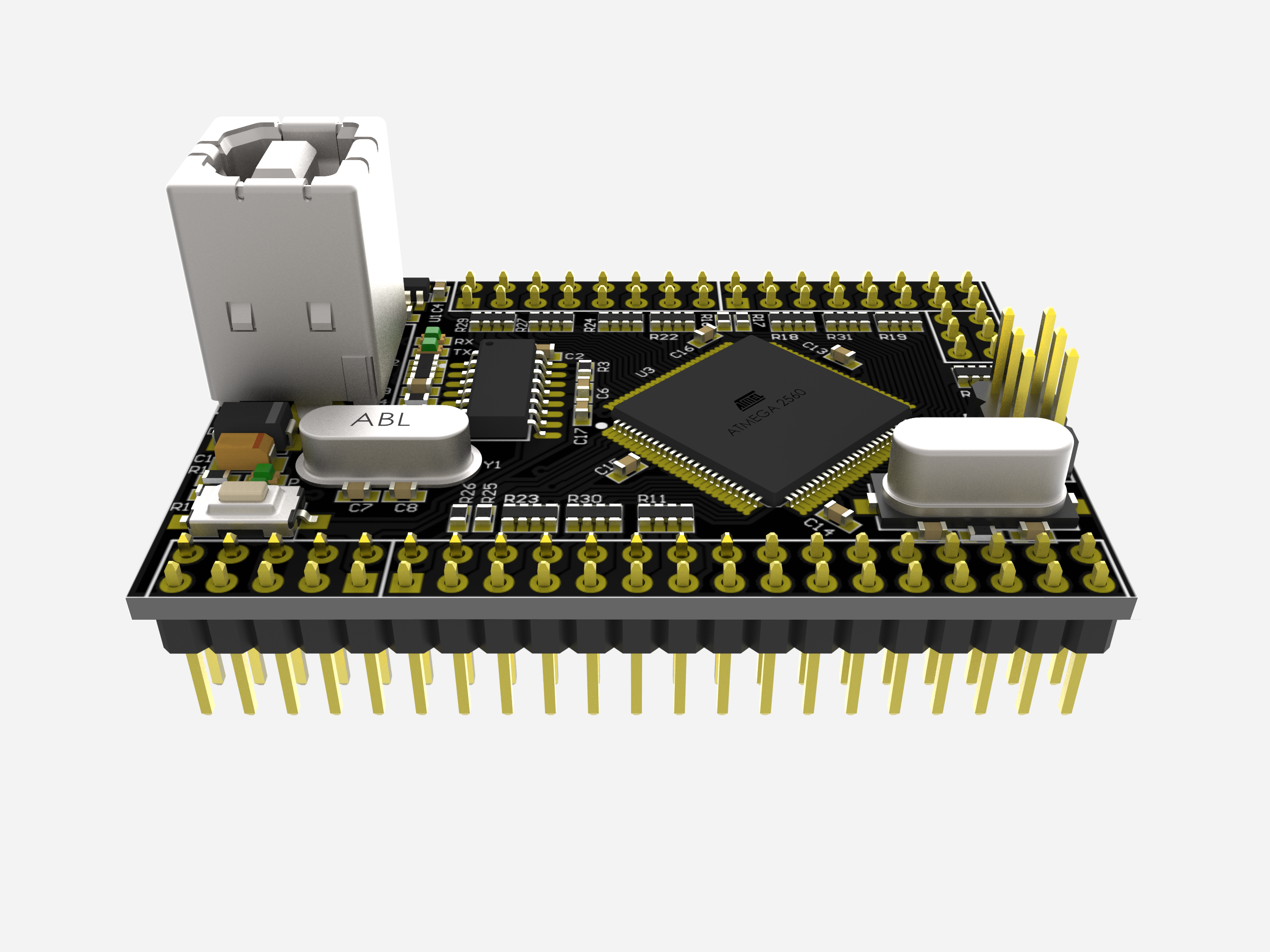

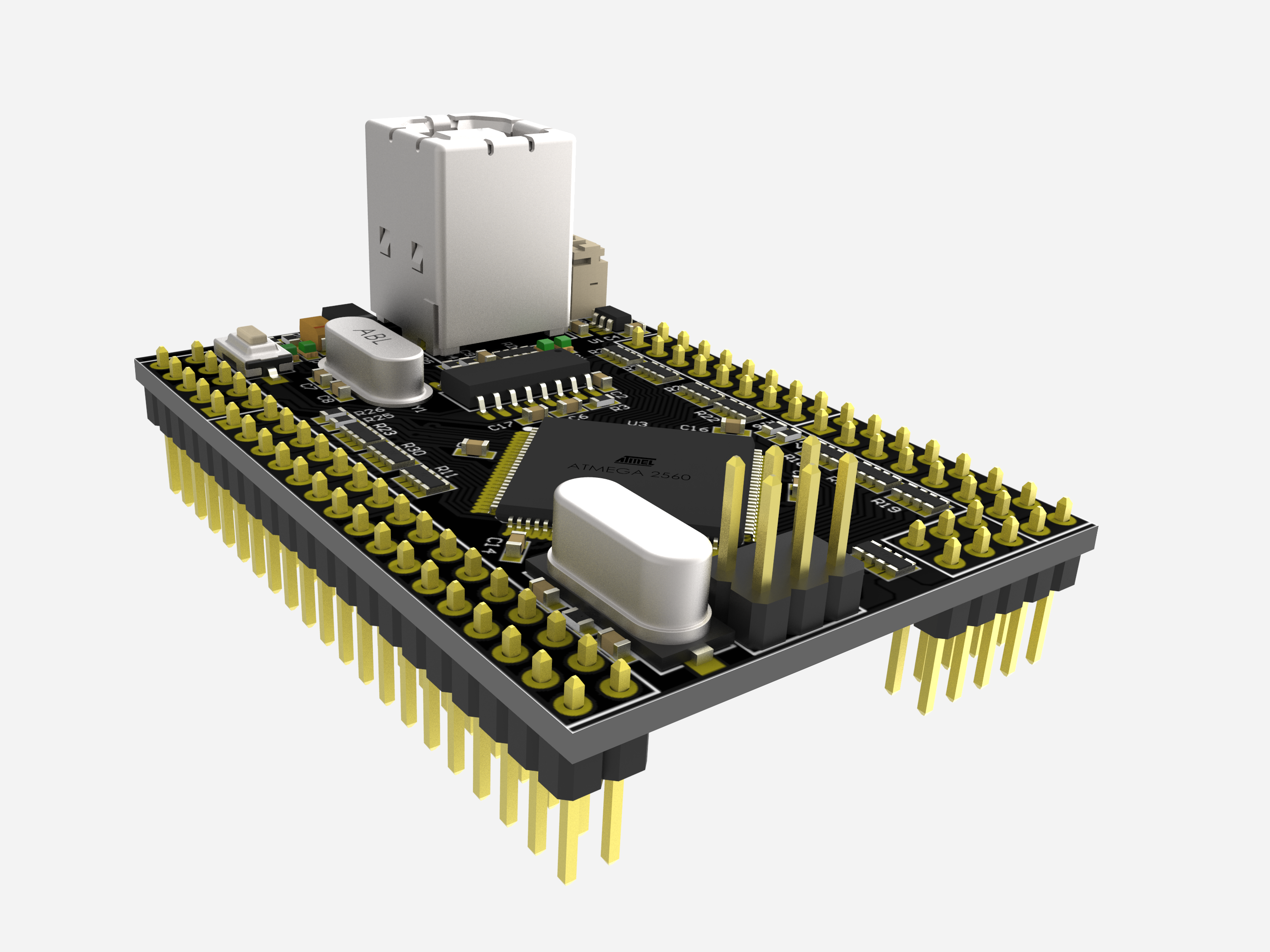

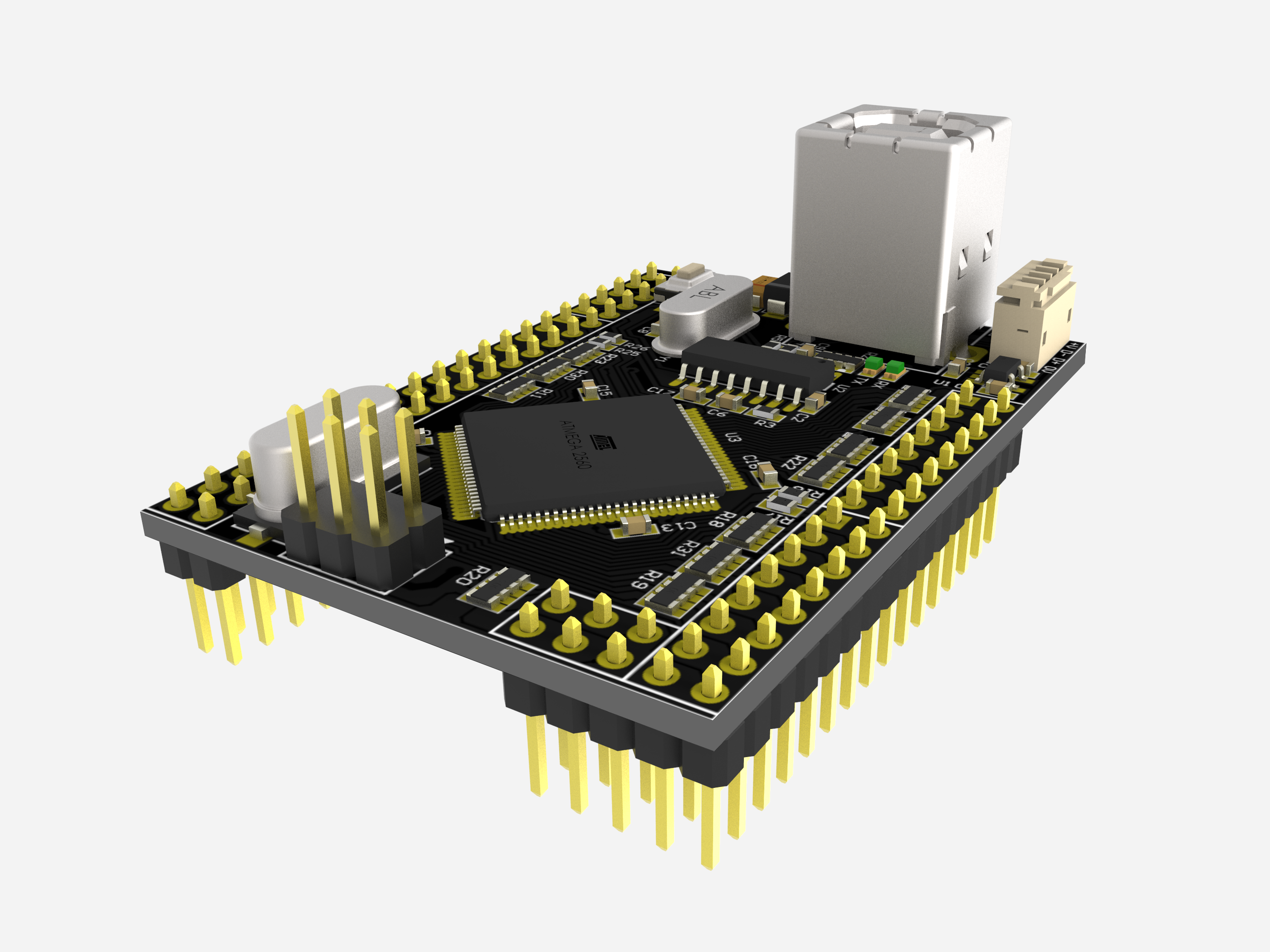

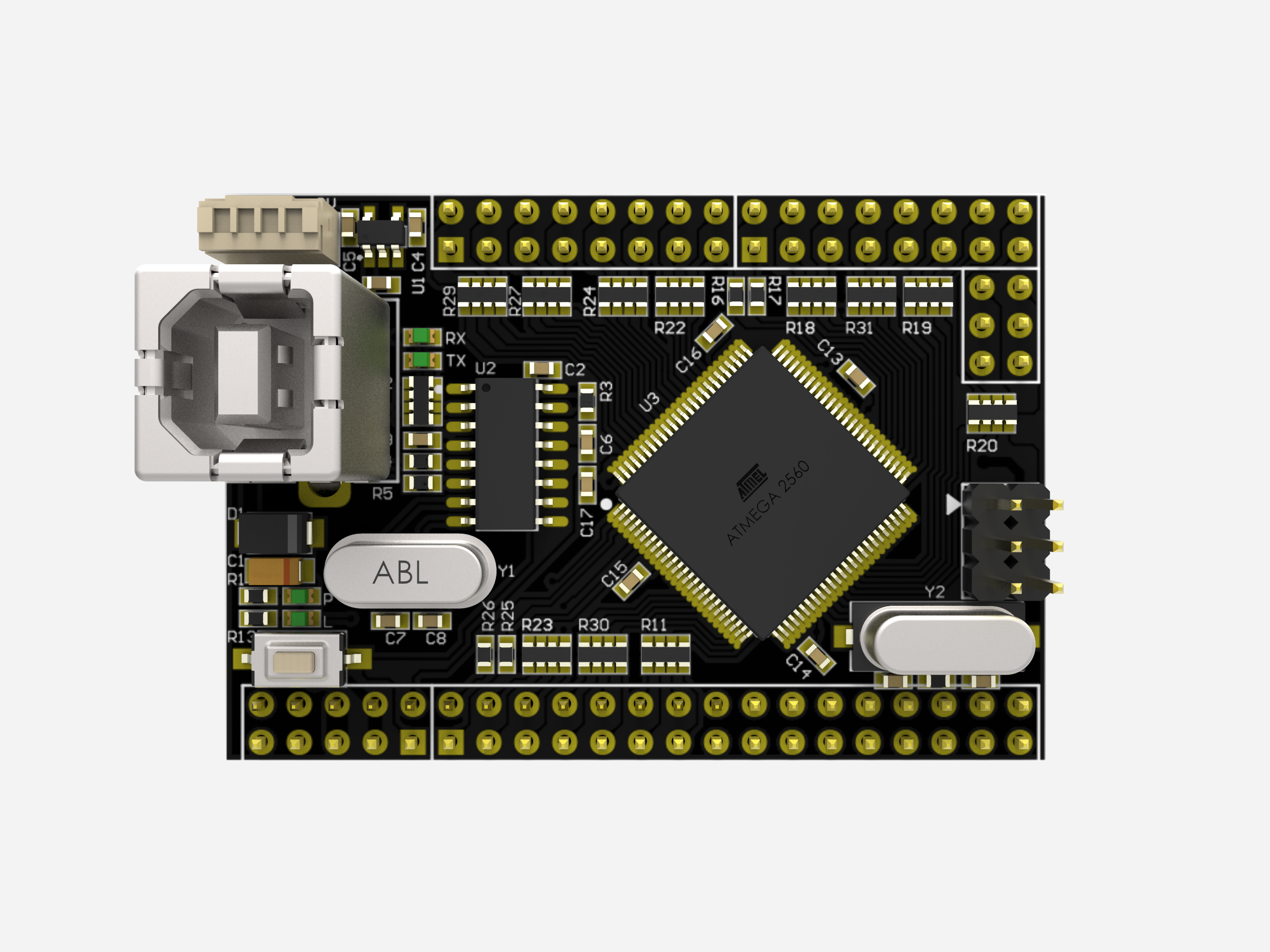

- The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The board is compatible with Arduino Mega 2560.

- All IO pins are ESD protected.

- The board has a compact form factor of 38X55mm and is an excellent solution for developing projects based on ATmega2560.

- The Mega Pro Embed functionalities are identical to the Arduino Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board.

- The board has a USB Type B connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340 (A driver installation may be required). Download drivers: Windows, Linux, Mac, Android.

- The board can be powered directly through the USB connector, or via the corresponding contact on the board (Vin). The used voltage regulator operates in a range of 6 to 9V DC.

- The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.

Technical Specifications :

- Microcontroller:  ATmega2560

- USB-TTL converter:  CH340

- Power Out:  5V-800mA

- Power IN:  5V

- Power Consumption: 5V 220mA

- Logic Level: 5V

- USB:  USB Type B

- Clock Frequency: 16MHz

- Operating Supply Voltage:  5V

- Digital I/O:  54

- Analog I/O:  16

- Memory Size:  256kb

- Data RAM Type/Size:  8Kb

- Data ROM Type/Size:  4Kb

- Interface Type:  ISP

- Operating temperature:  −40С°/+85С°

- Size : 55×38mm

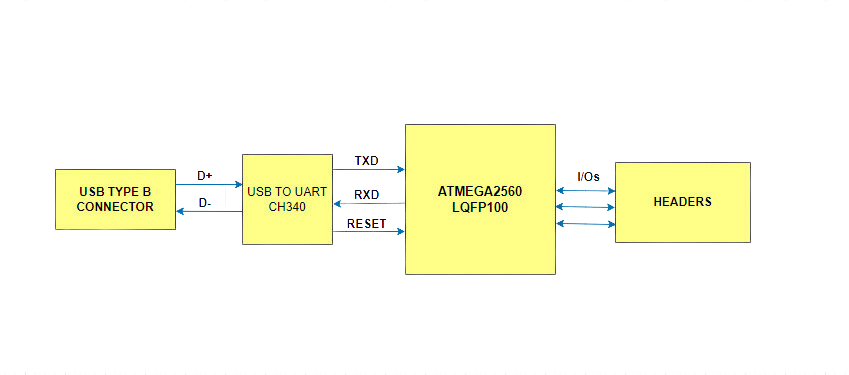

Block Diagram :



Download: https://drive.google.com/file/d/1iVE-_mwAi2_5ypcF4pQXcaGE0uo8eX3W/view?usp=sharing
