iCB-BASIC-02

Description

iCB-BASIC-02

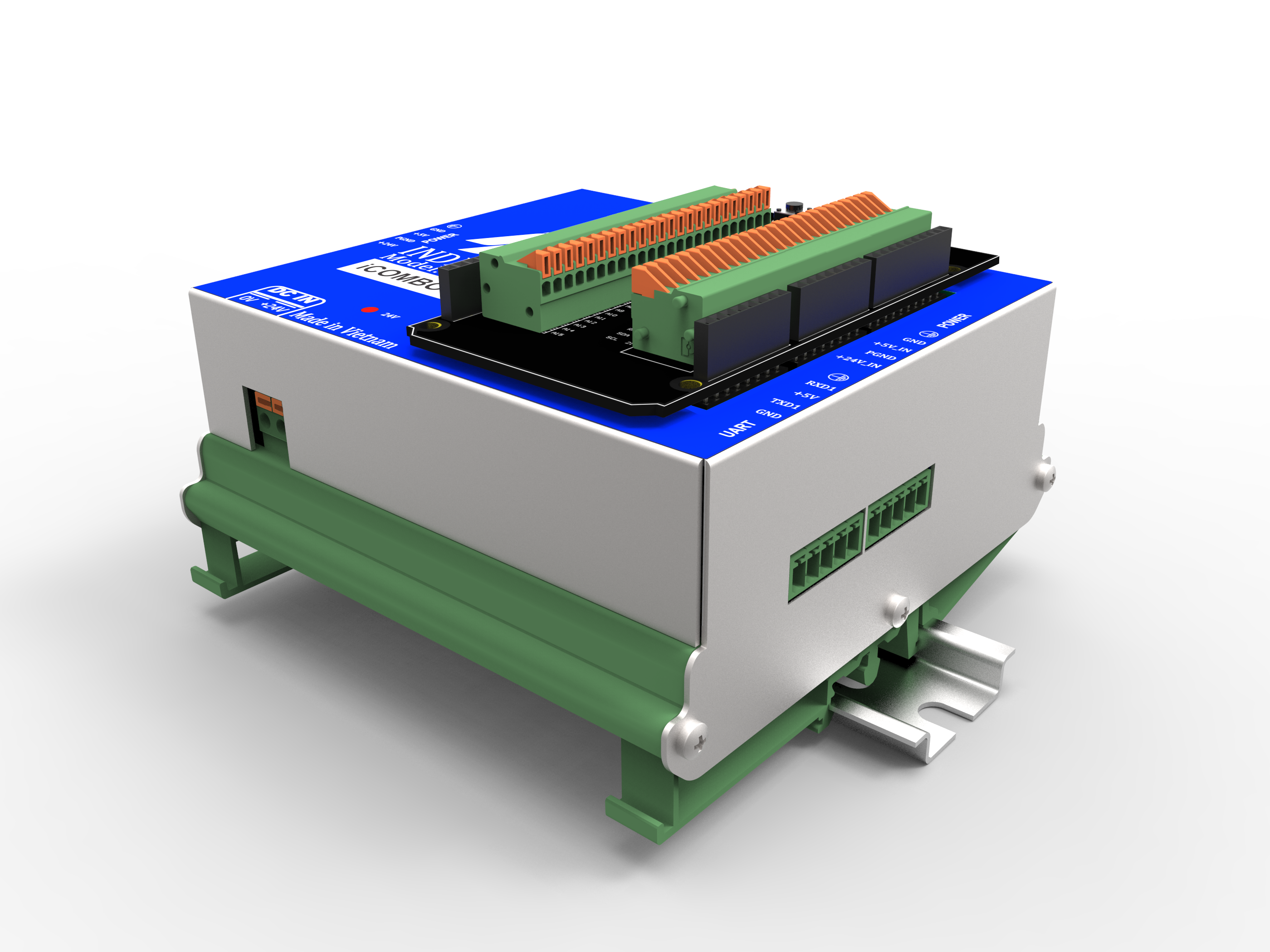

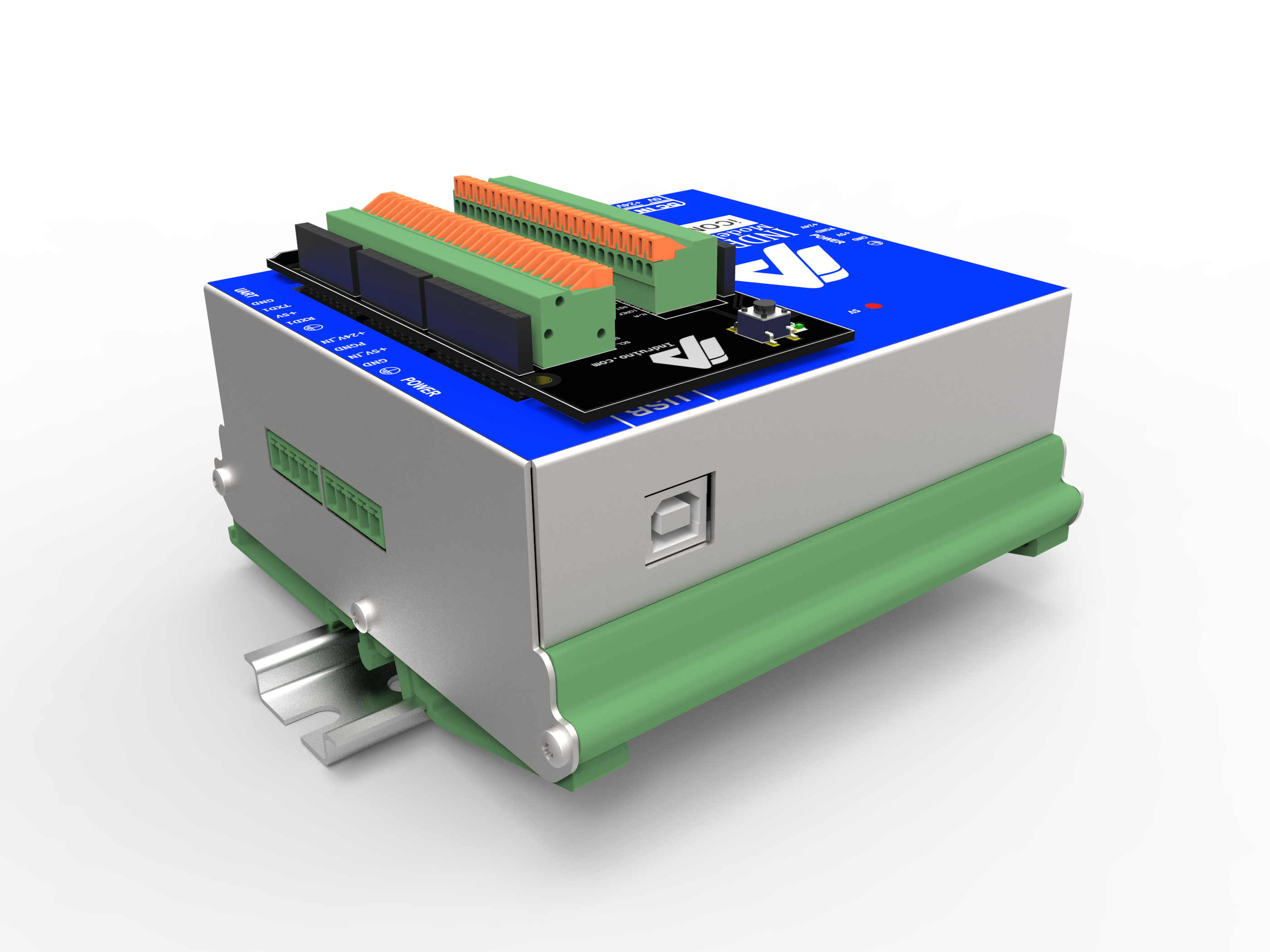

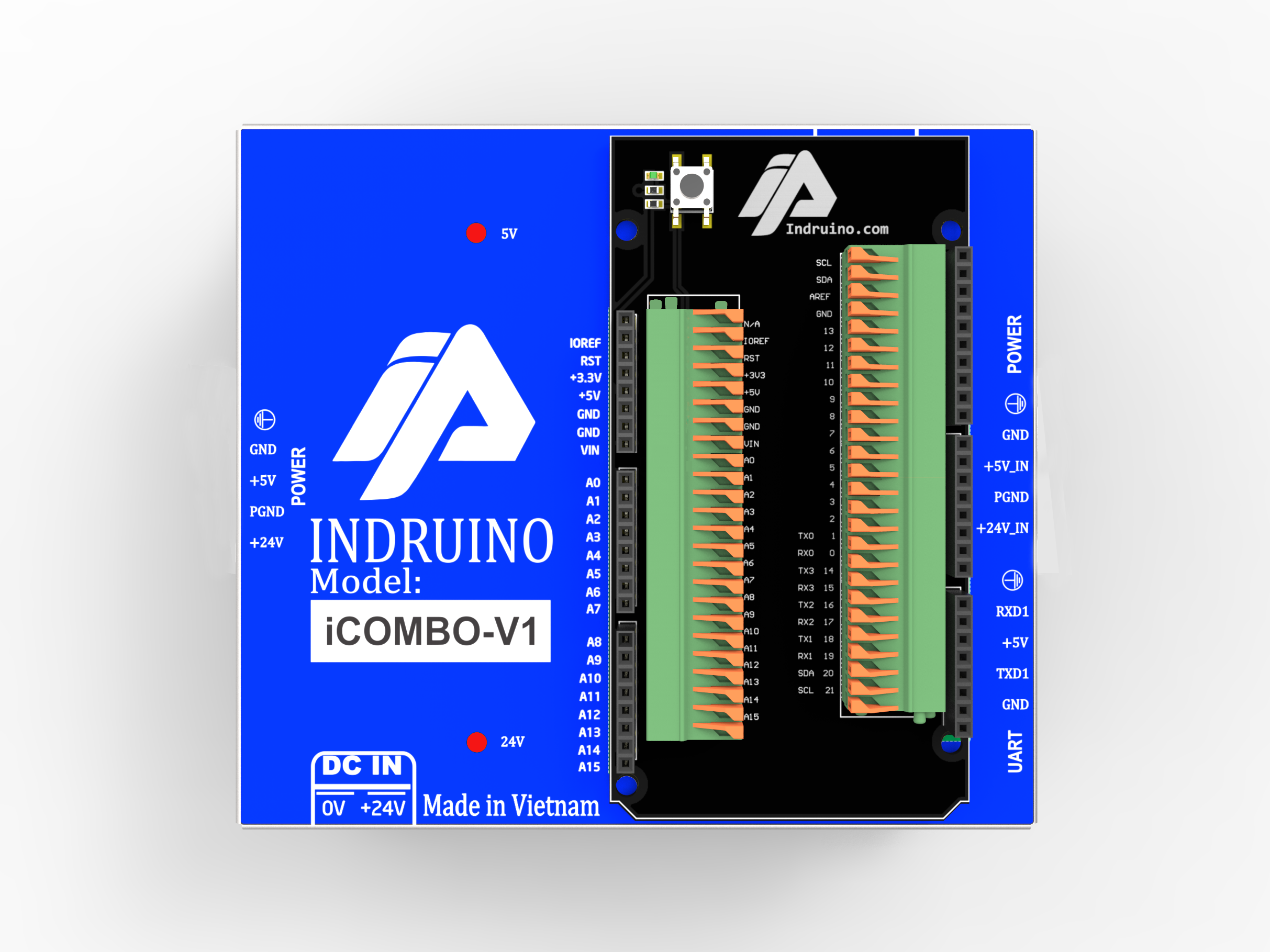

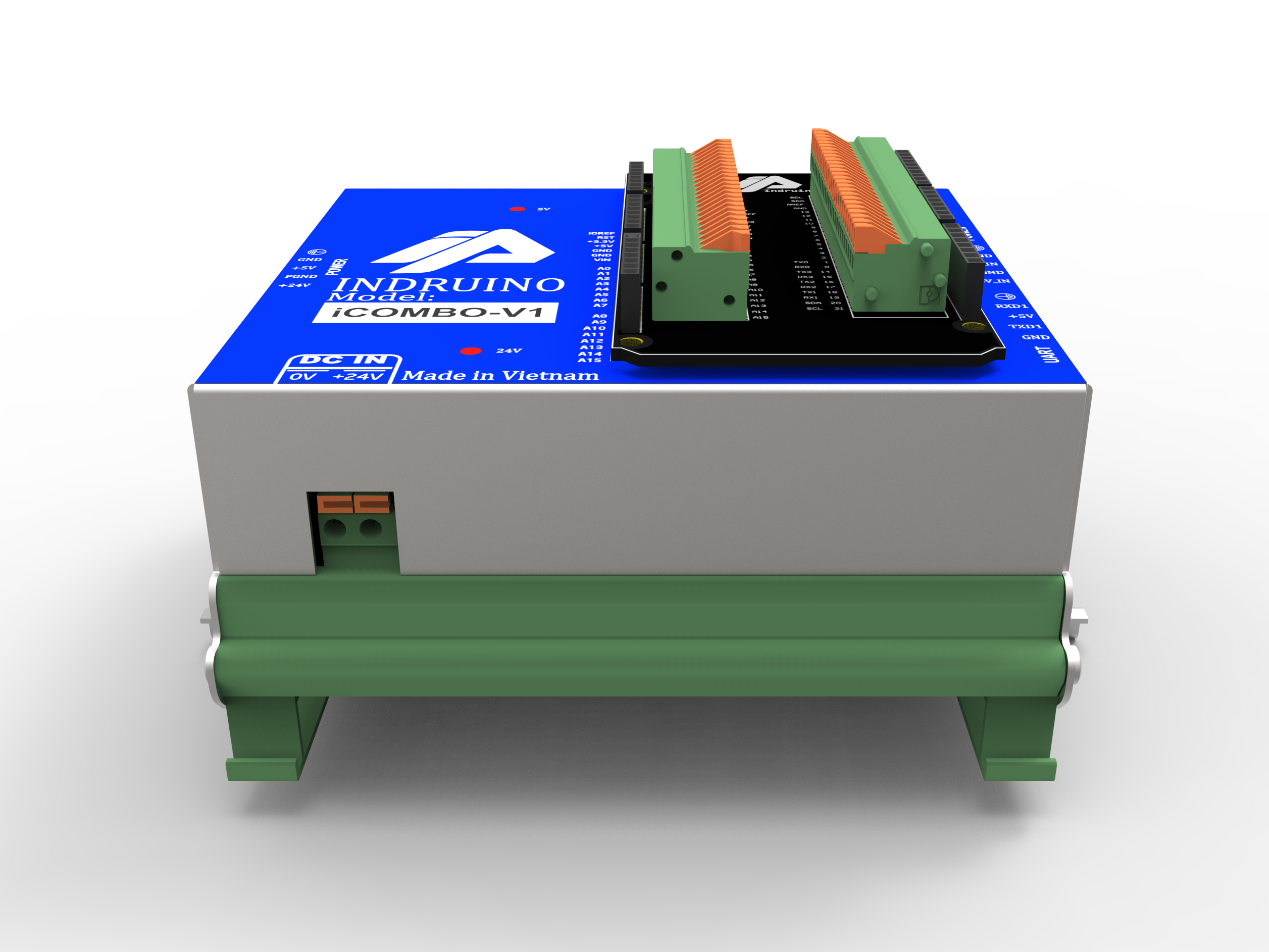

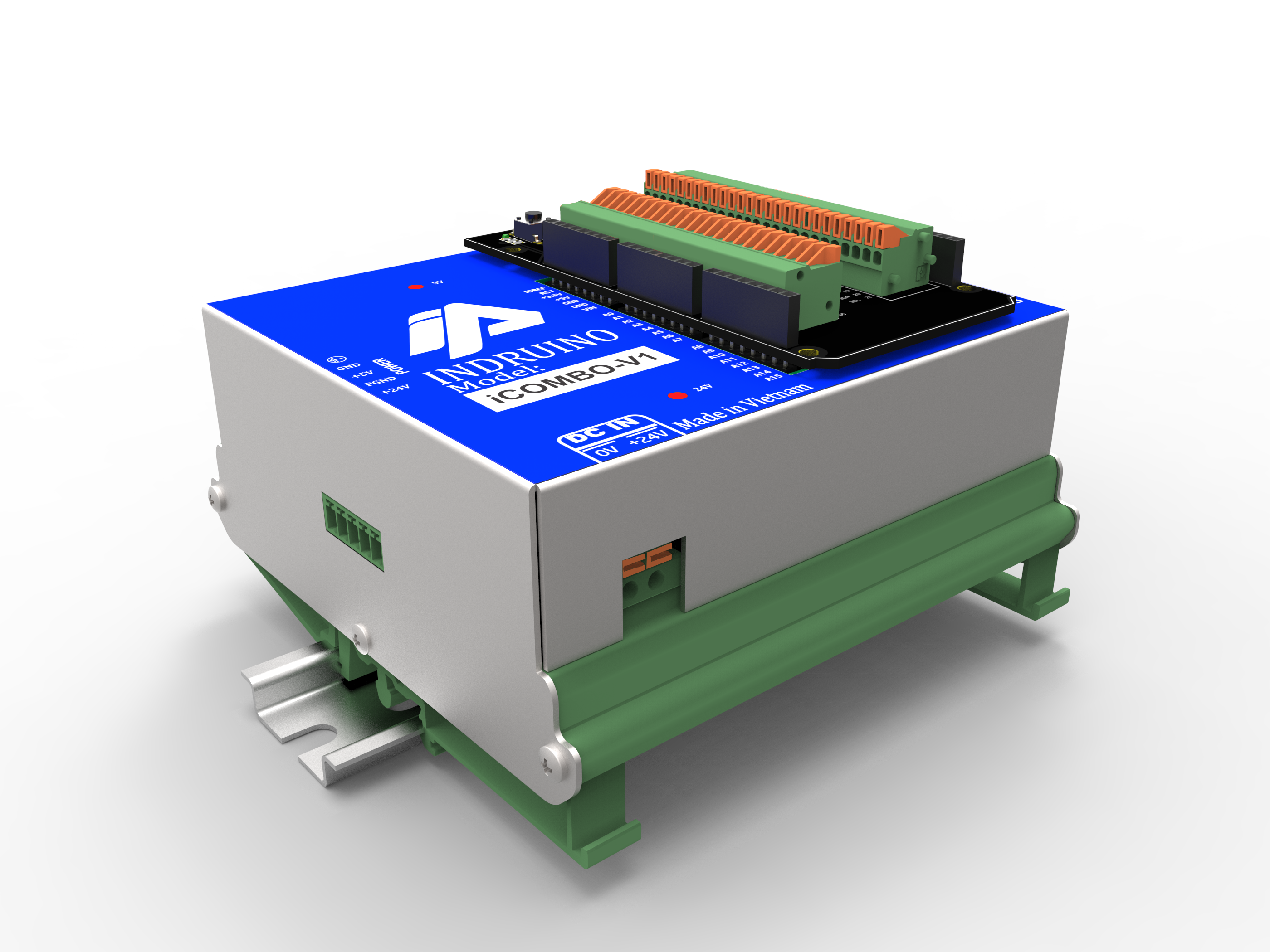

Indruino Combo Basic 02 is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Indruino standard Baseboard & Adapter, stainless steel cover box and spring terminal and IDC socket to connect with other devices. Packaged with the industry standard Dinrail stand, the box to form a complete, ready-to-use solution in systems that require high stability, dust resistance.

Technical Specifications :

- Power supply : 24V

- Output voltage : 5V/2A

- Assembly method : Dinrail

- Dimensions (LxWxH) : 123 x 124 x 90 mm

- Other features : Integrated inlet & outlet power port.

- Integrated UART port for extensioning I/Os.

- Supports Arduino pinout , spring terminal and IDC socket to connect with other devices.

- Includes:

+ iPower-ISO 5V/2A

+ CPU iMega2560-ISO

+ Connector shield

+ Adapter board

+ Base board

+ Stainless steel protection cover

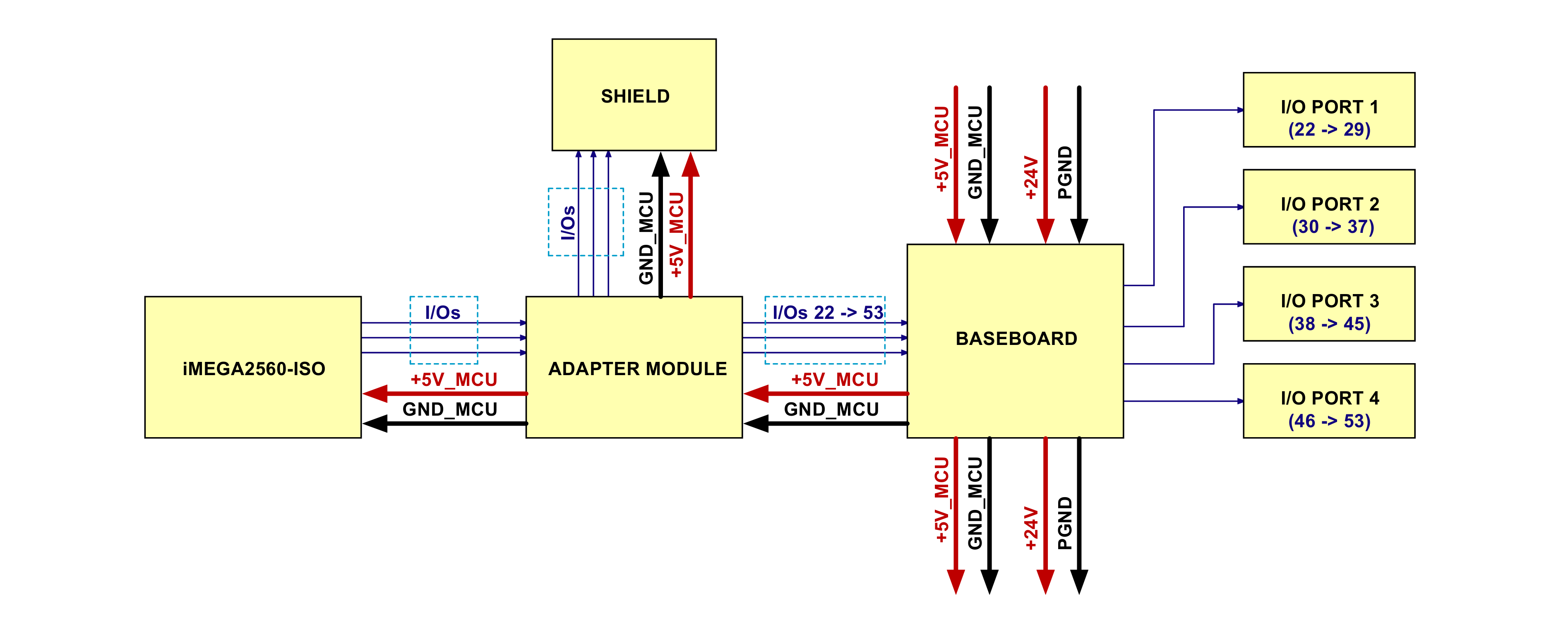

Block Diagram :

Download : https://drive.google.com/file/d/1C4jUWgR3SGEI3lDYOM62XXtZDn0_QEv8/view?usp=sharing
