iCB-BASIC-06

Description

iCB-BASIC-05

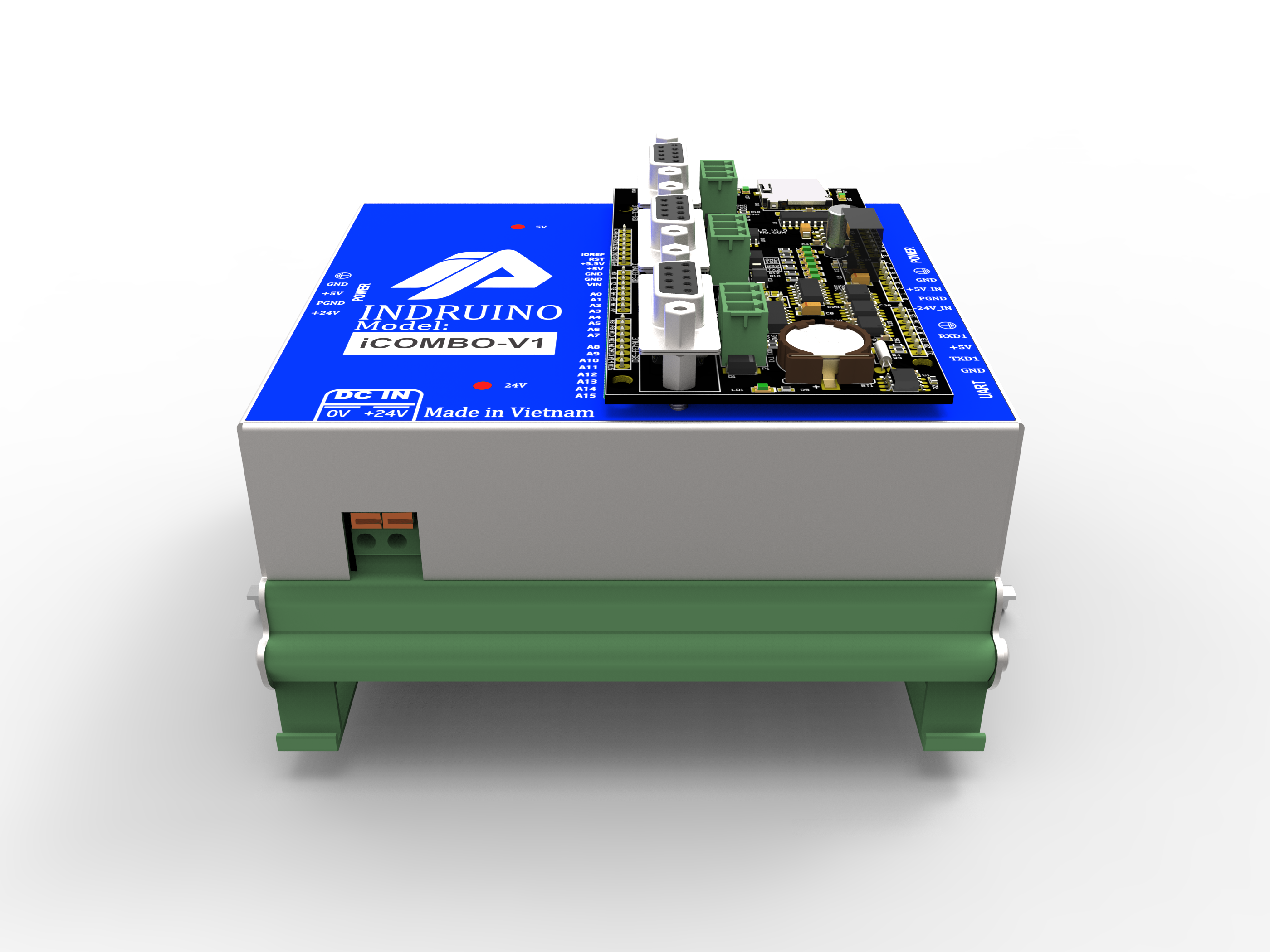

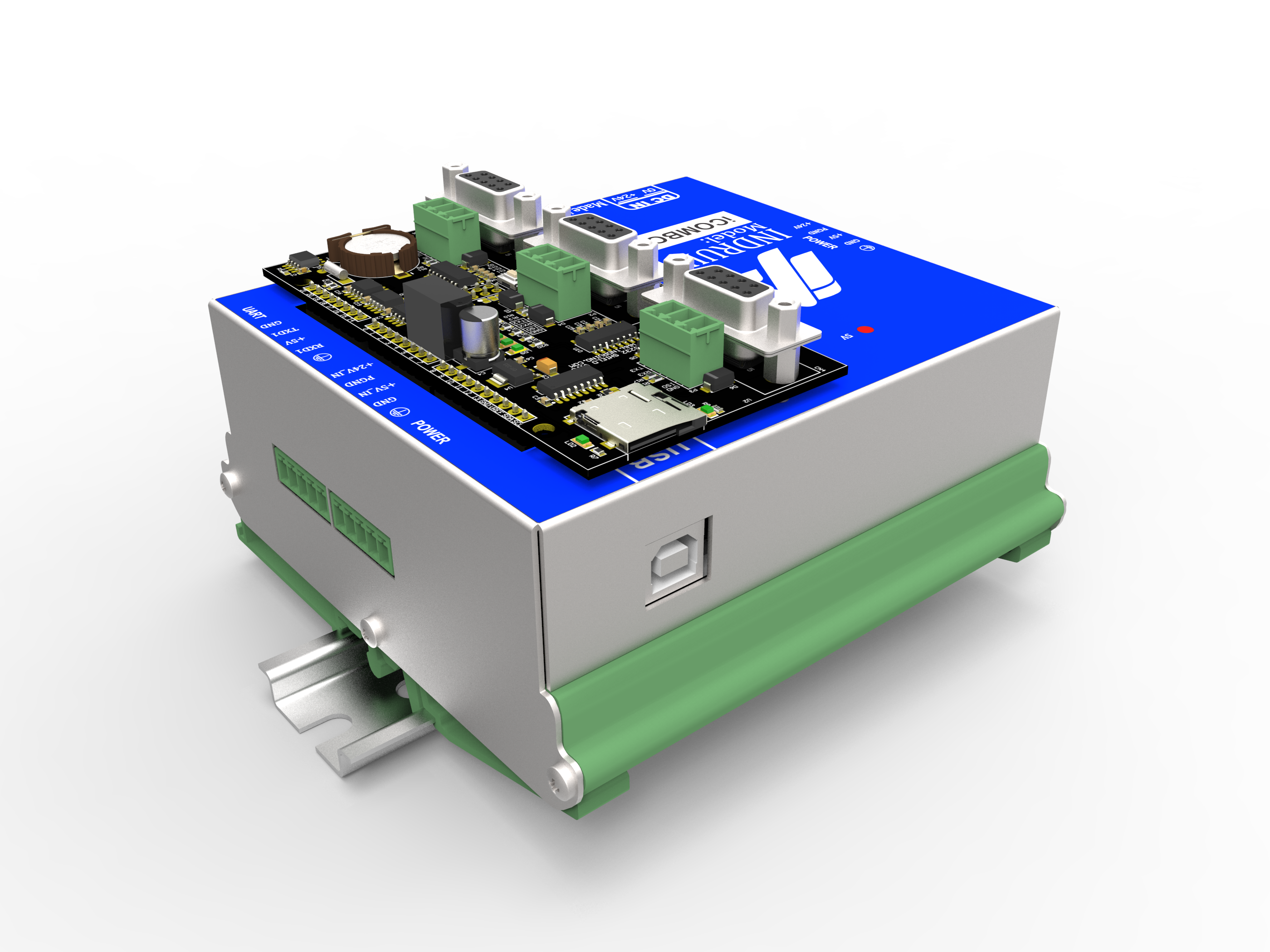

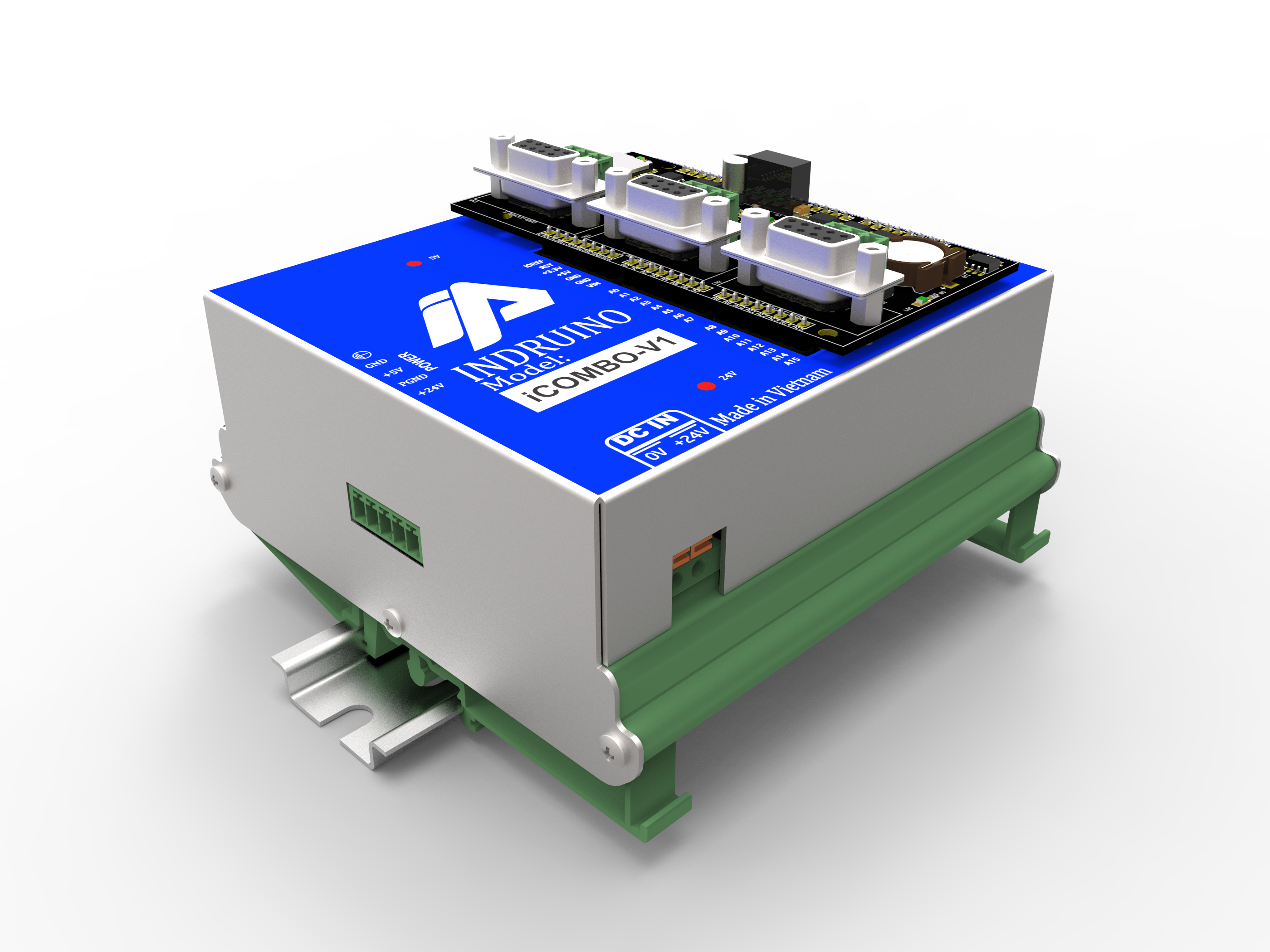

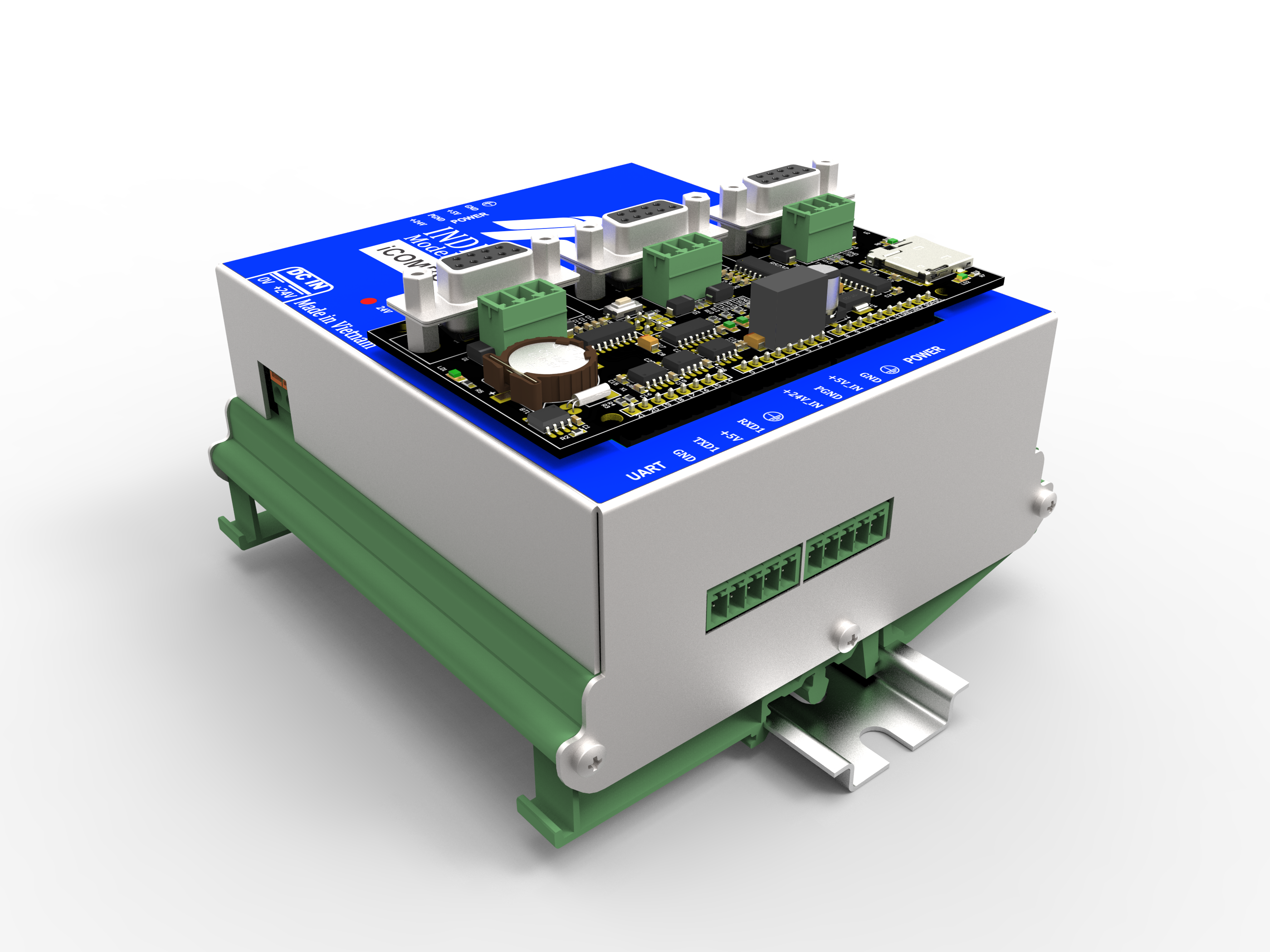

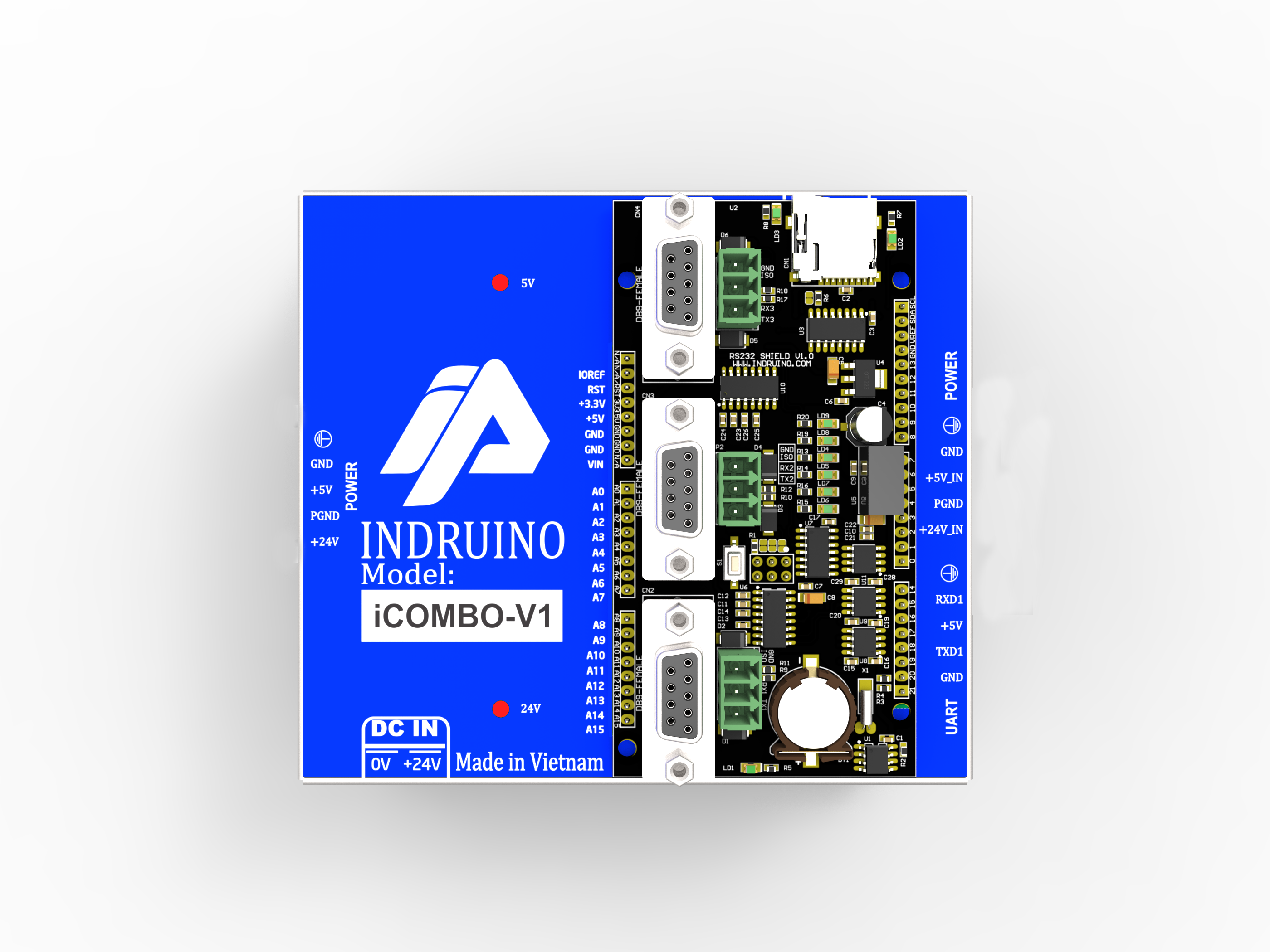

Indruino Combo Basic 06 is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Indruino standard Baseboard & Adapter, stainless steel cover box and RS232 isolation 3 channels, RTC, micro SD card shield. Packaged with the industry standard Dinrail stand, the box to form a complete, ready-to-use solution in systems that require high stability, dust resistance.

Technical Specifications :

- Power supply: 24V
- Output voltage: 5V/2A
- Assembly method: Dinrail

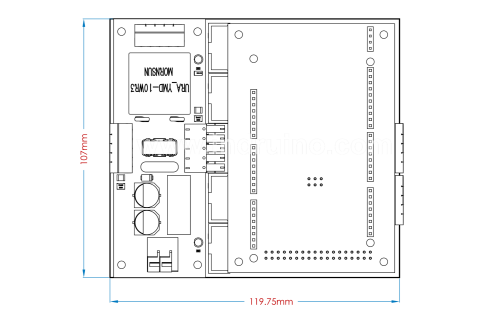

- Dimensions (LxWxH) : 123 x 124 x 100 mm
- Other features : Integrated inlet & outlet power port.
- Integrated UART port for extensioning I/Os.
- Includes:
    + iPower-ISO 5V/2A
    + CPU iMega2560-ISO
    + Isolated RS232-RTC-Micro SD Card shield
    + Adapter board
    + Base board
    + Stainless steel protection cover

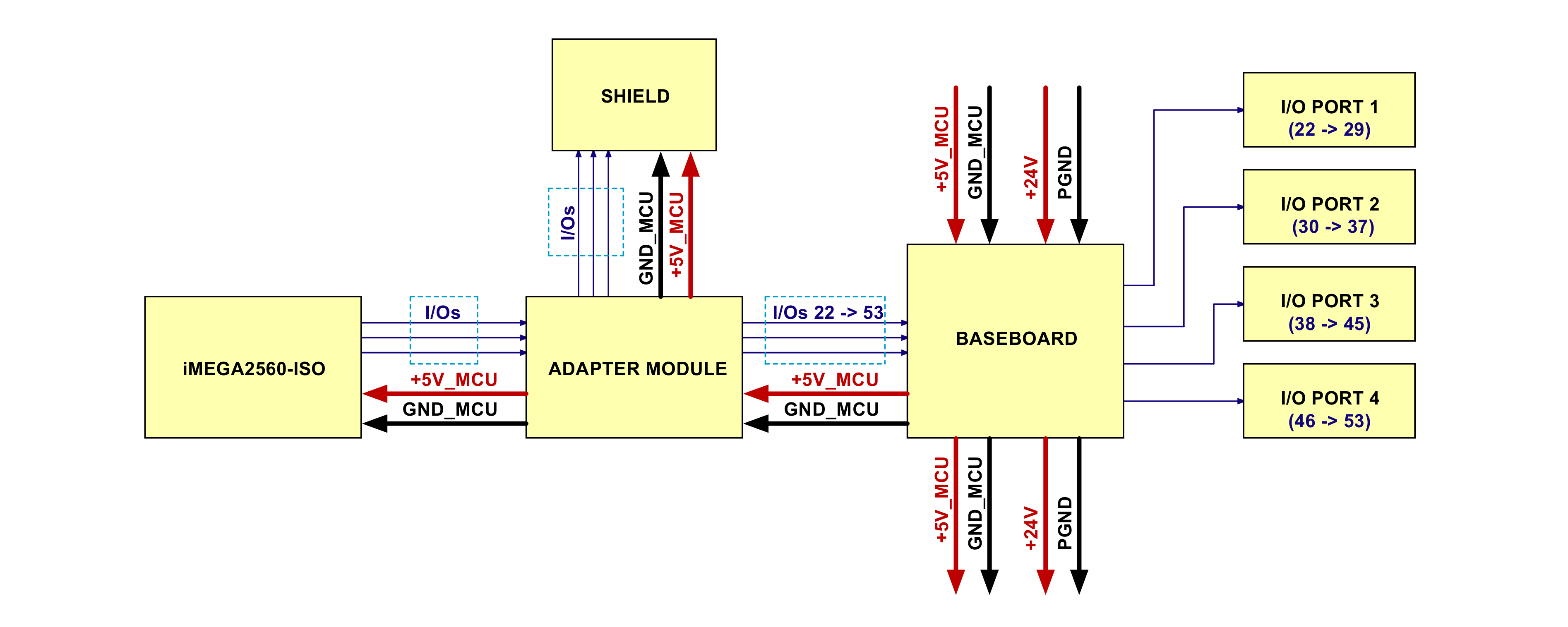

Block Diagram :

Download :  https://drive.google.com/file/d/1R-RmB3CUZLFtdpX3VJiJAJB8GRON3iCS/view?usp=sharing
