Description

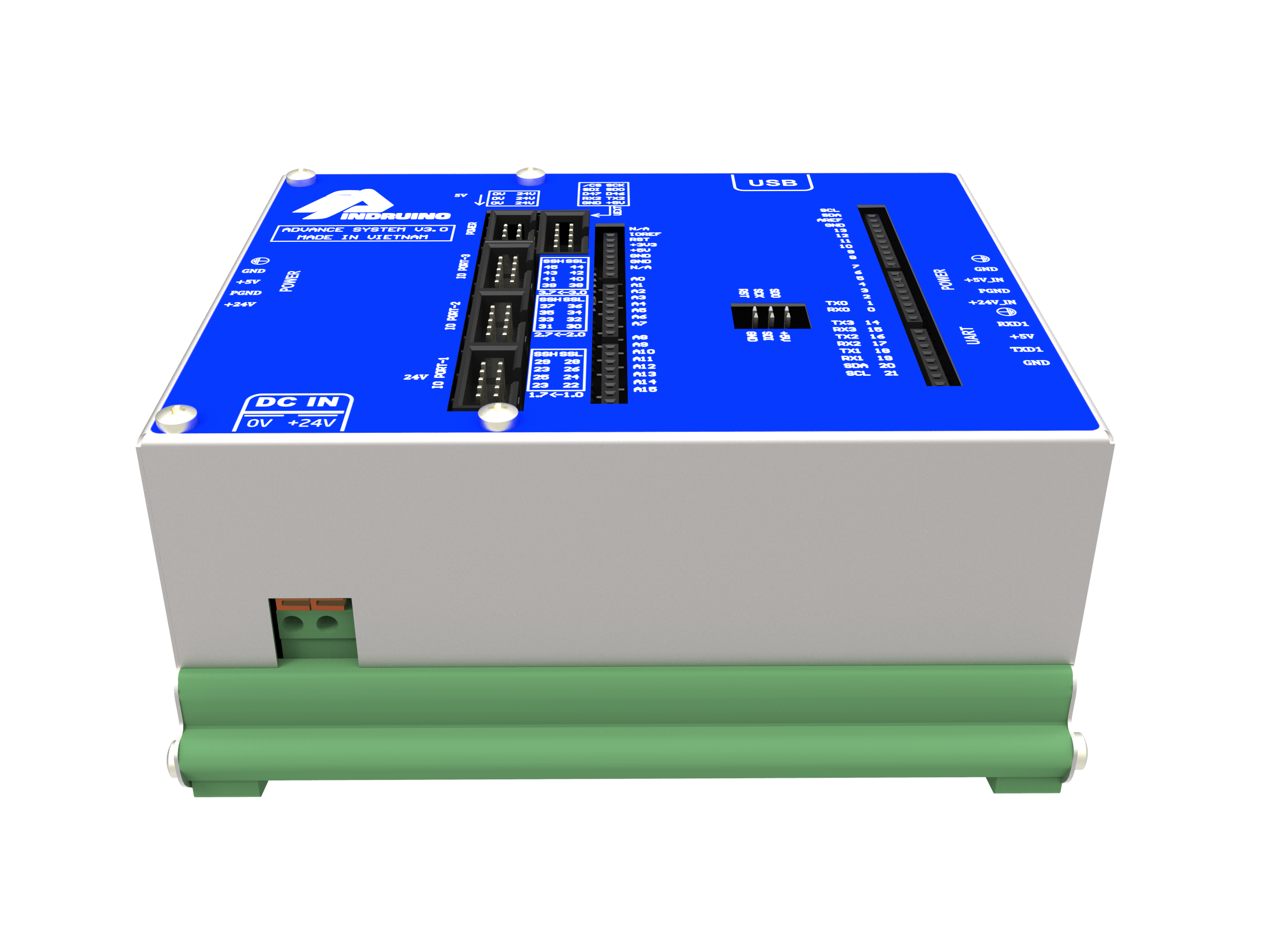

iCB-ADVANCE-01

- This is the perfect combination of: Power Supply DC / DC-24V / 5V-ISO, iMega2560-ISO controller combined with Baseboard & Adapter and Connector shield acThis is the perfect combination of:

1. Power Supply DC / DC-24V / 5V-ISO: iPower-ISO 5V/2A

2. CPU iMega2560-ISO

3. Adapter board

4.  Base board

5. Module input 8ch mini (option) or

+ Module output 8ch mini (option) or

+ Module relay (option)

- Packed with industry-standard Dinrai, ready to use in systems requiring high stability and dust resistance.

Technical Specifications :

- Power supply : 24V

- Output voltage : 5V/2A

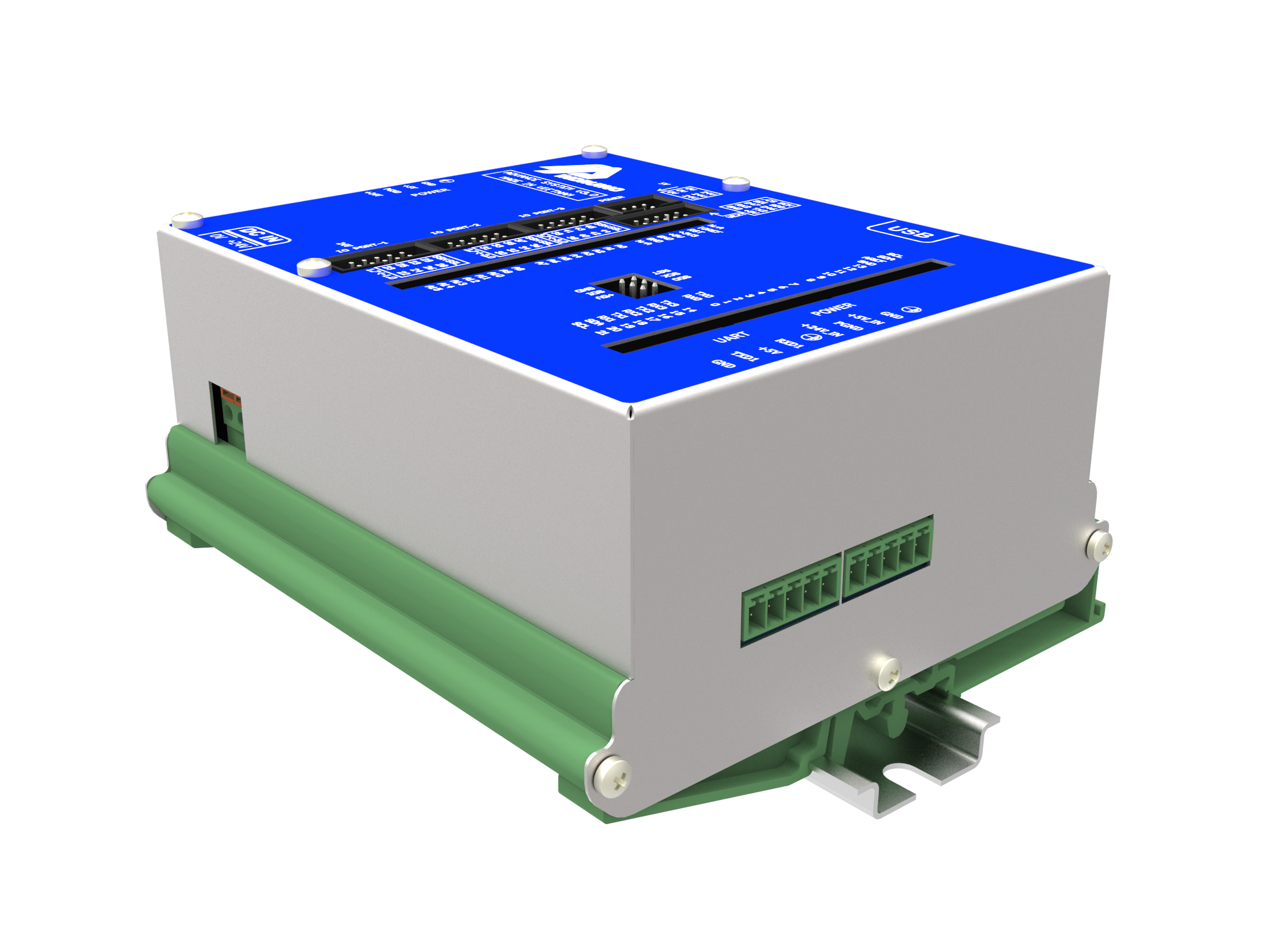

- Assembly method : Dinrail

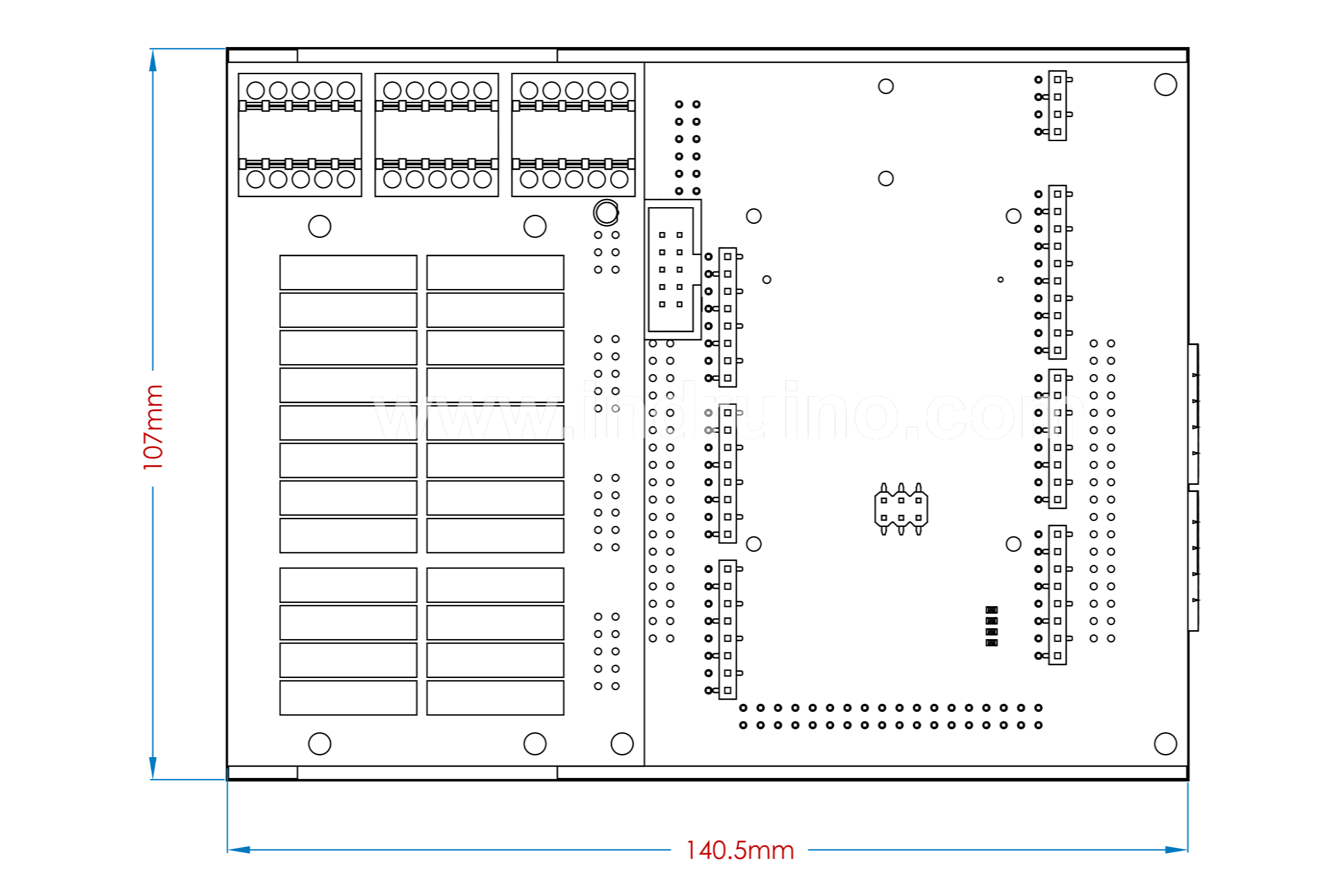

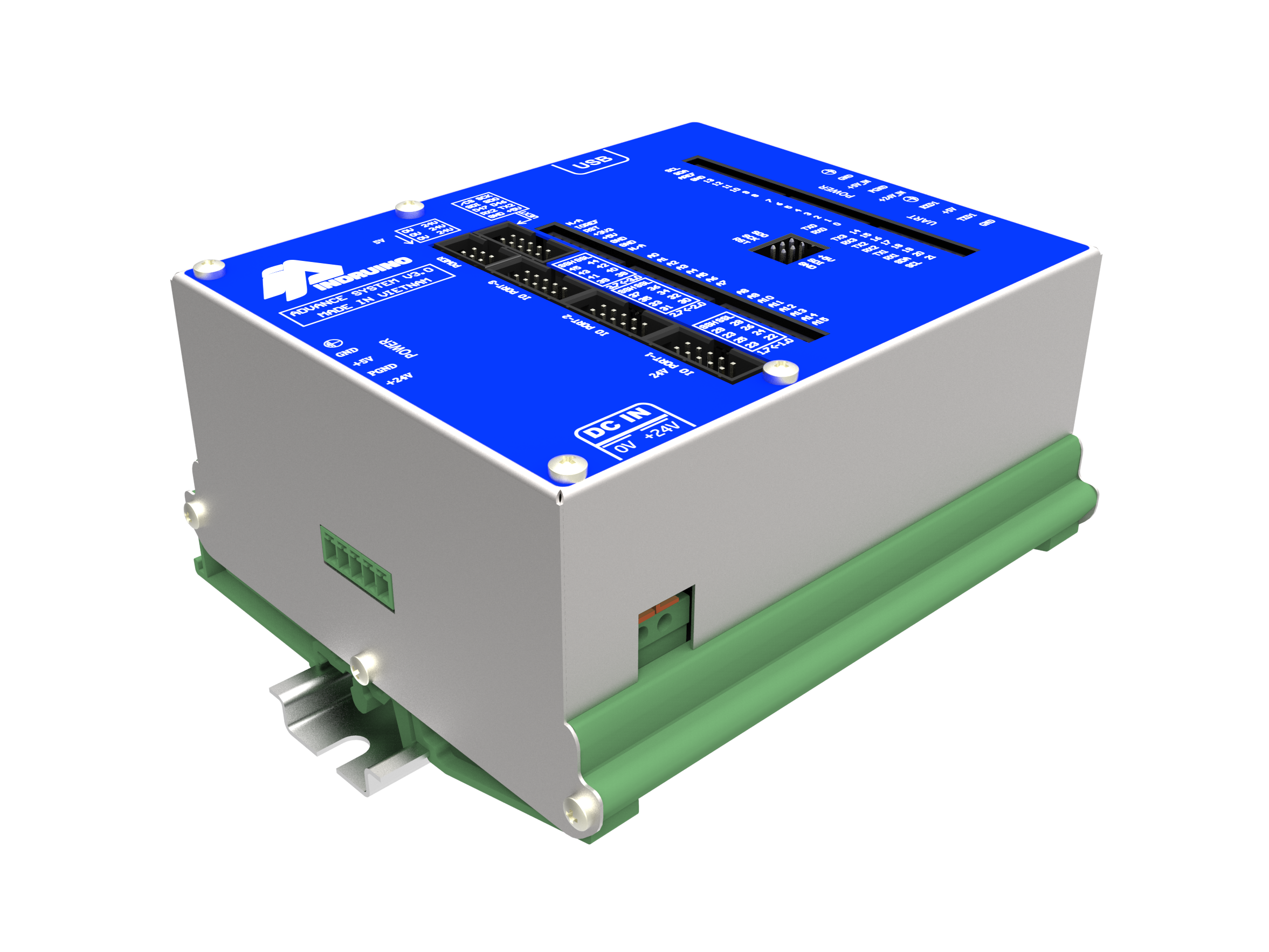

- Dimensions (LxWxH) : 140.5 x 107 x 60 mm

- Other features : Integrated inlet & outlet power port.

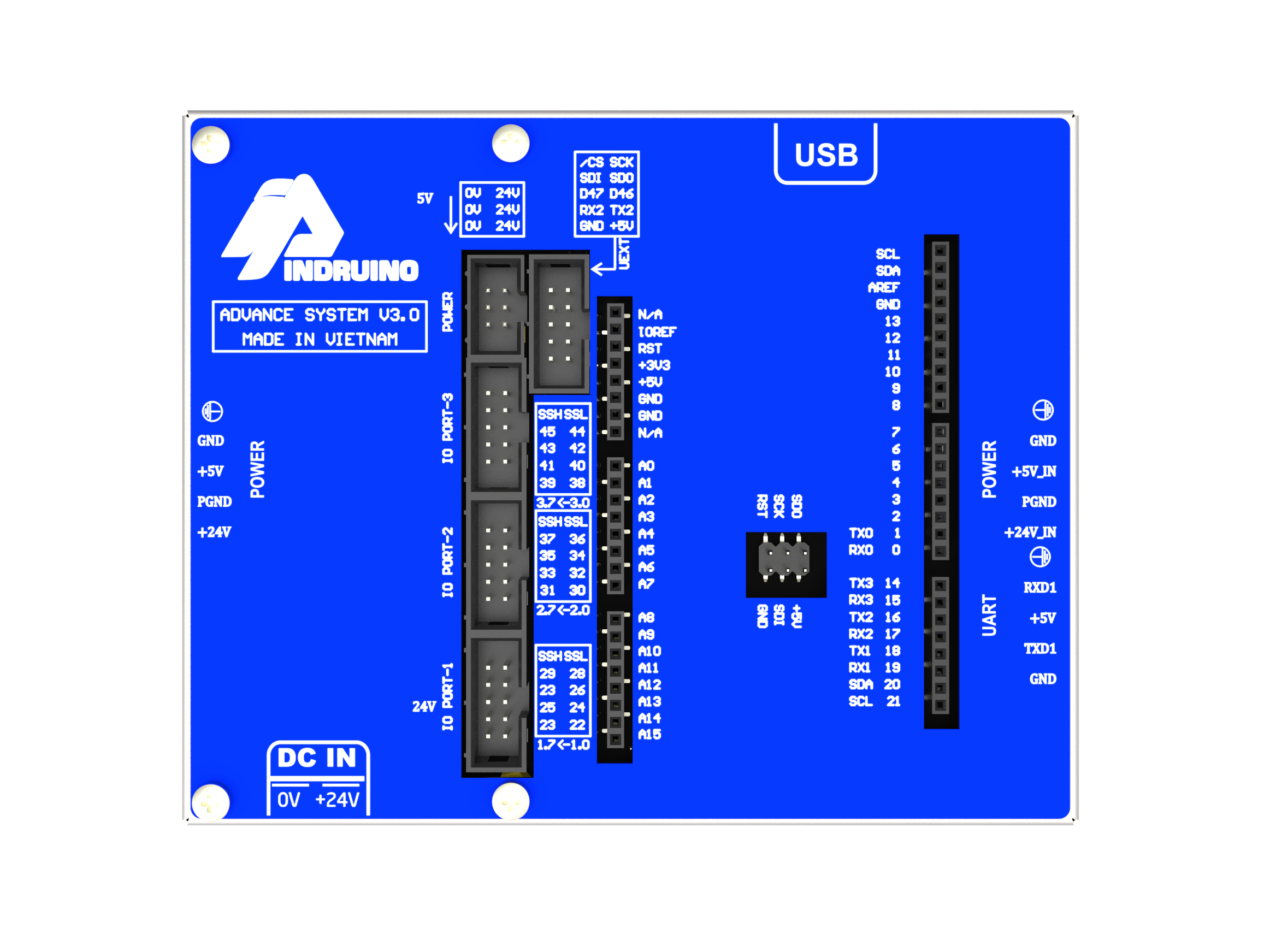

- Integrated UART port for extensioning I/Os.

- Supports Arduino pinout , spring terminal and IDC socket to connect with other devices.

+ Power Supply DC / DC-24V / 5V-ISO: iPower-ISO 5V/2A

+ CPU iMega2560-ISO

+ Adapter board

+  Base board

+ Module input 8ch mini (option) or

+ Module output 8ch mini (option) or

+ Module relay (option)

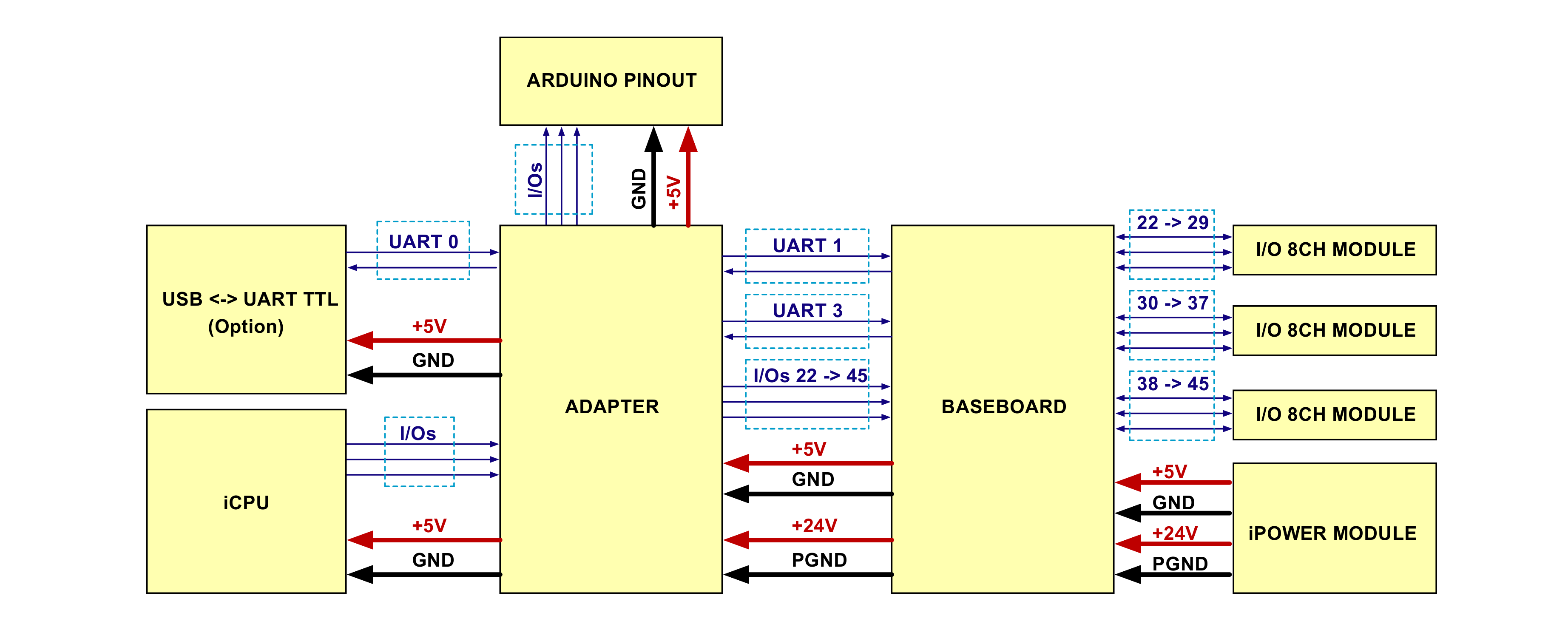

Block Diagram :

Download : https://drive.google.com/file/d/11MFyI1CwfkfsrSeFEfvdn0yYVYZF8PUB/view?usp=sharing
