USB TO UART CONVERTER ISOLATED MODULE

USB TO UART CONVERTER ISOLATED MODULE

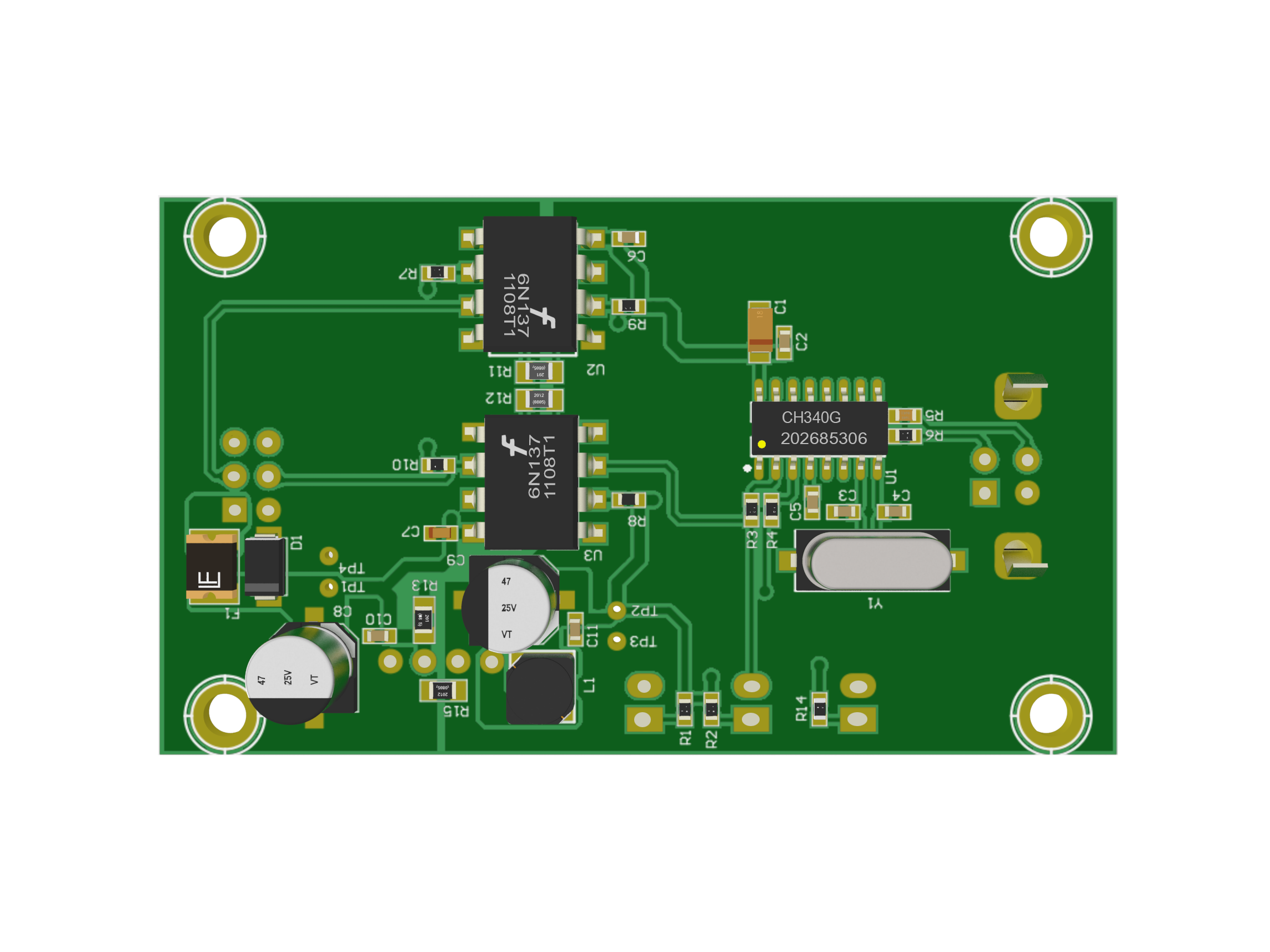

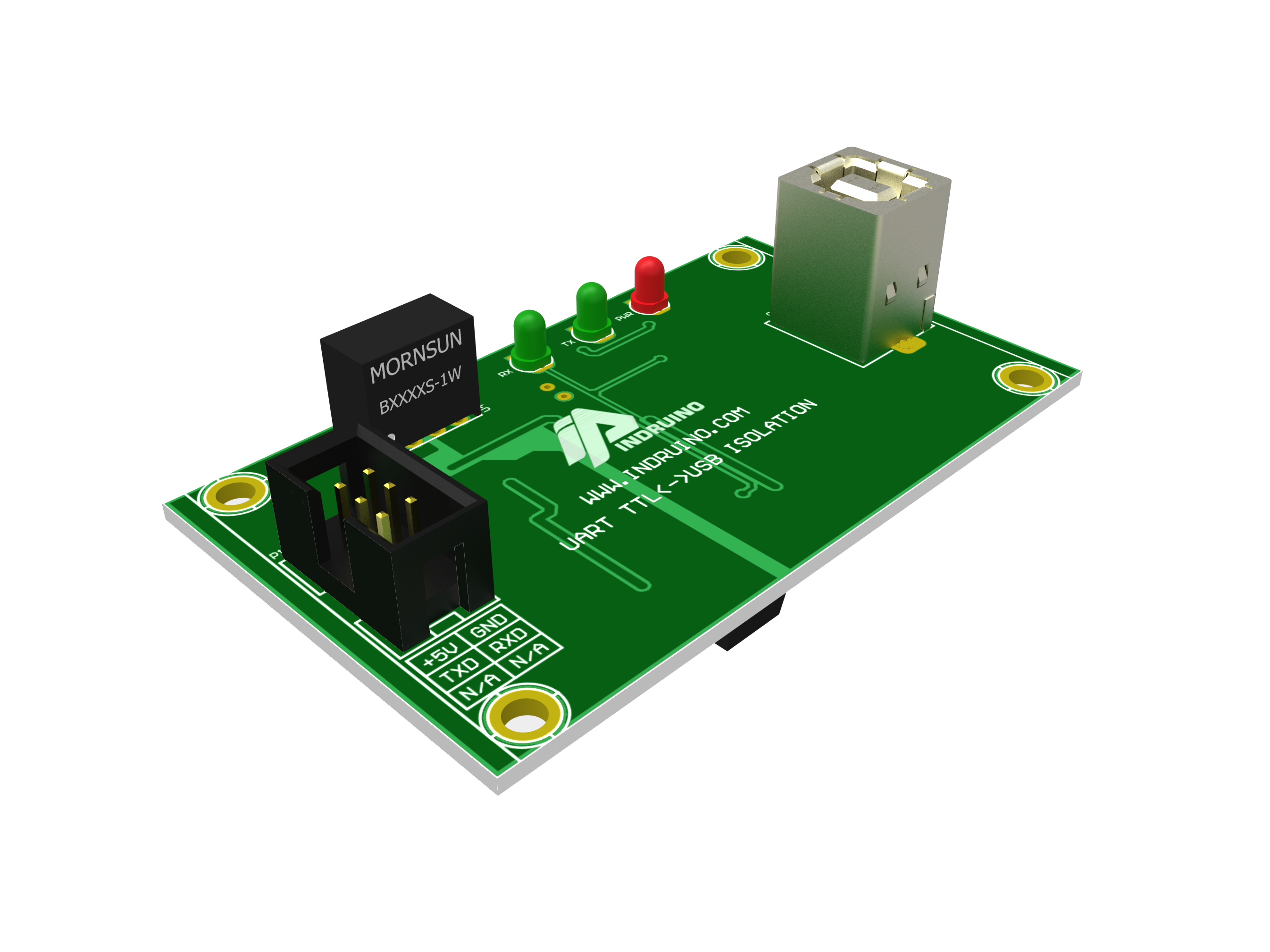

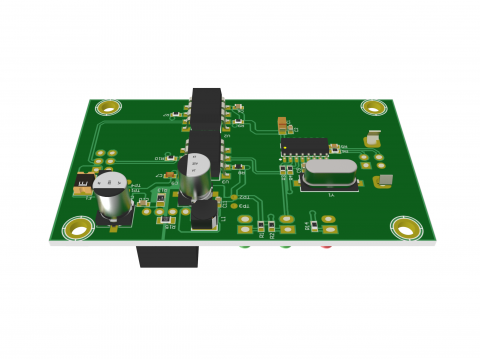

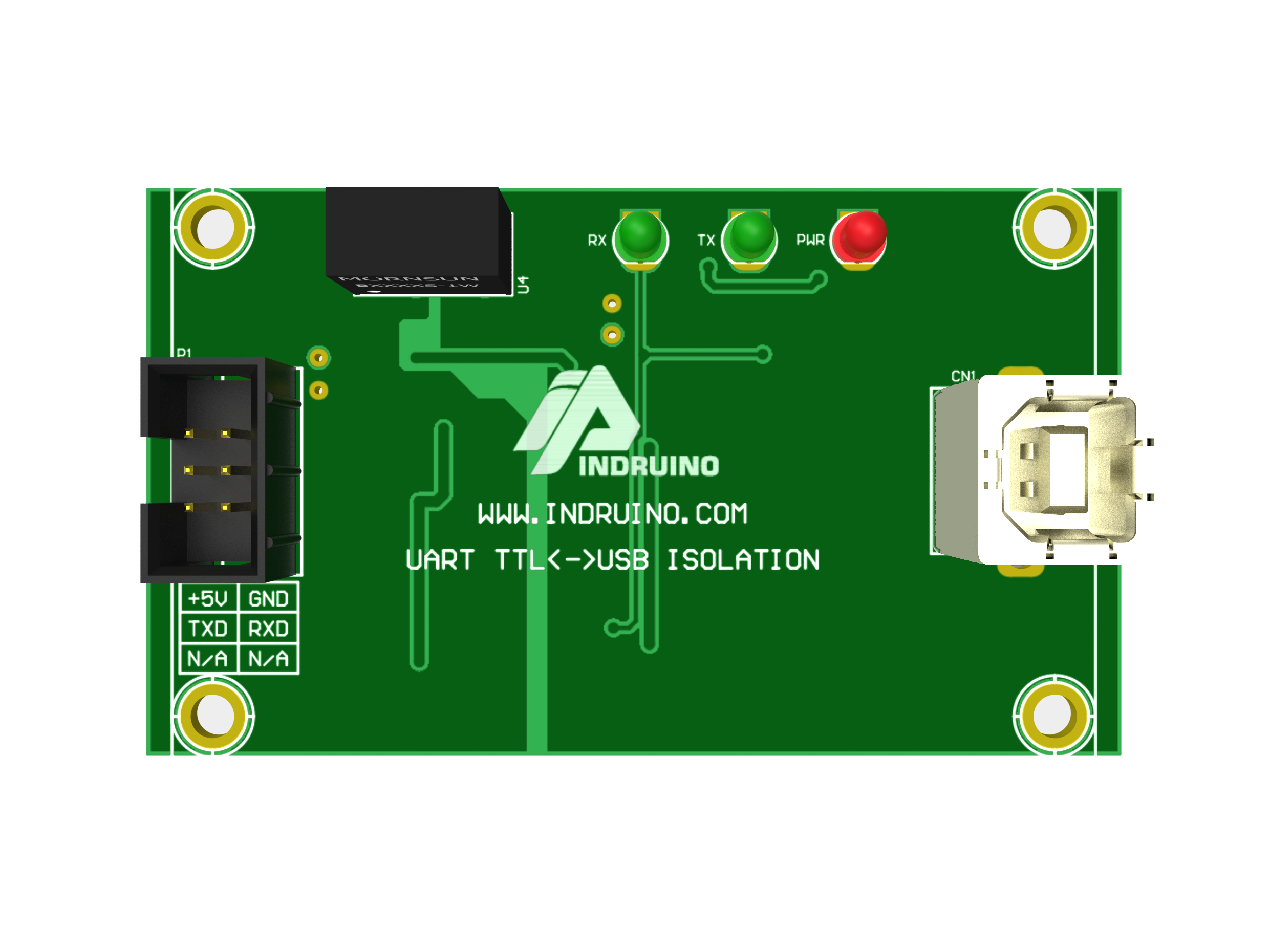

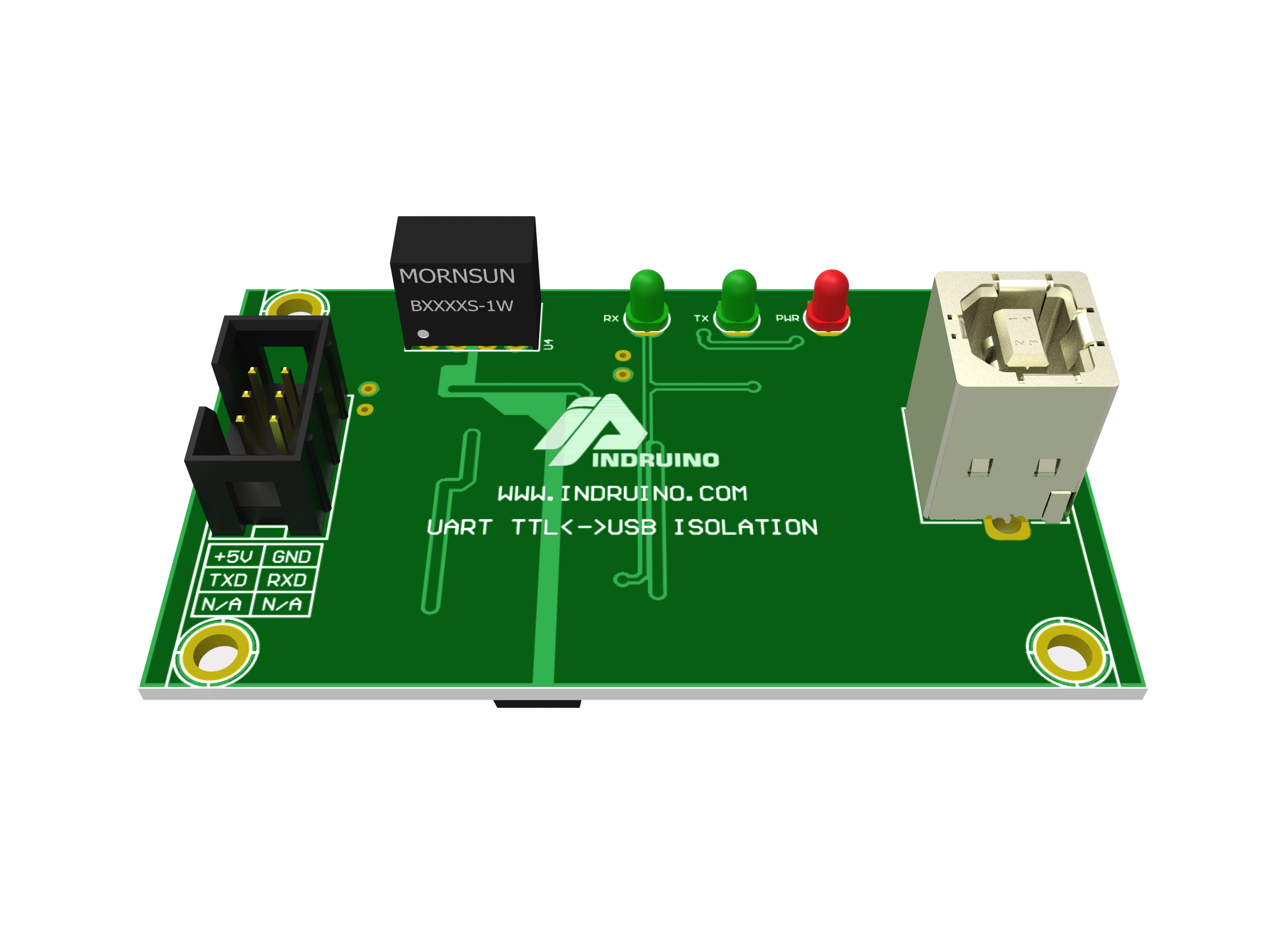

This is a isolated serial TTL to USB module, converting USB data to serial UART.

Key features:

- Converting USB to UART and vice versa.

- Opto isolation and DC/DC isolation.

- ESD protection.

- DB9 connector and IDC 3x2

- Status led indicators.

- Small size, easy to intergrated into the system.

Technical Specifications :

- Power supply: 5 VDC

- Max current: 500 mA

- Interface: USB 2.0, UART

- Max baudrate: 115200 bps

- Duplex: Full

- Isolation voltage : 1500Vrms

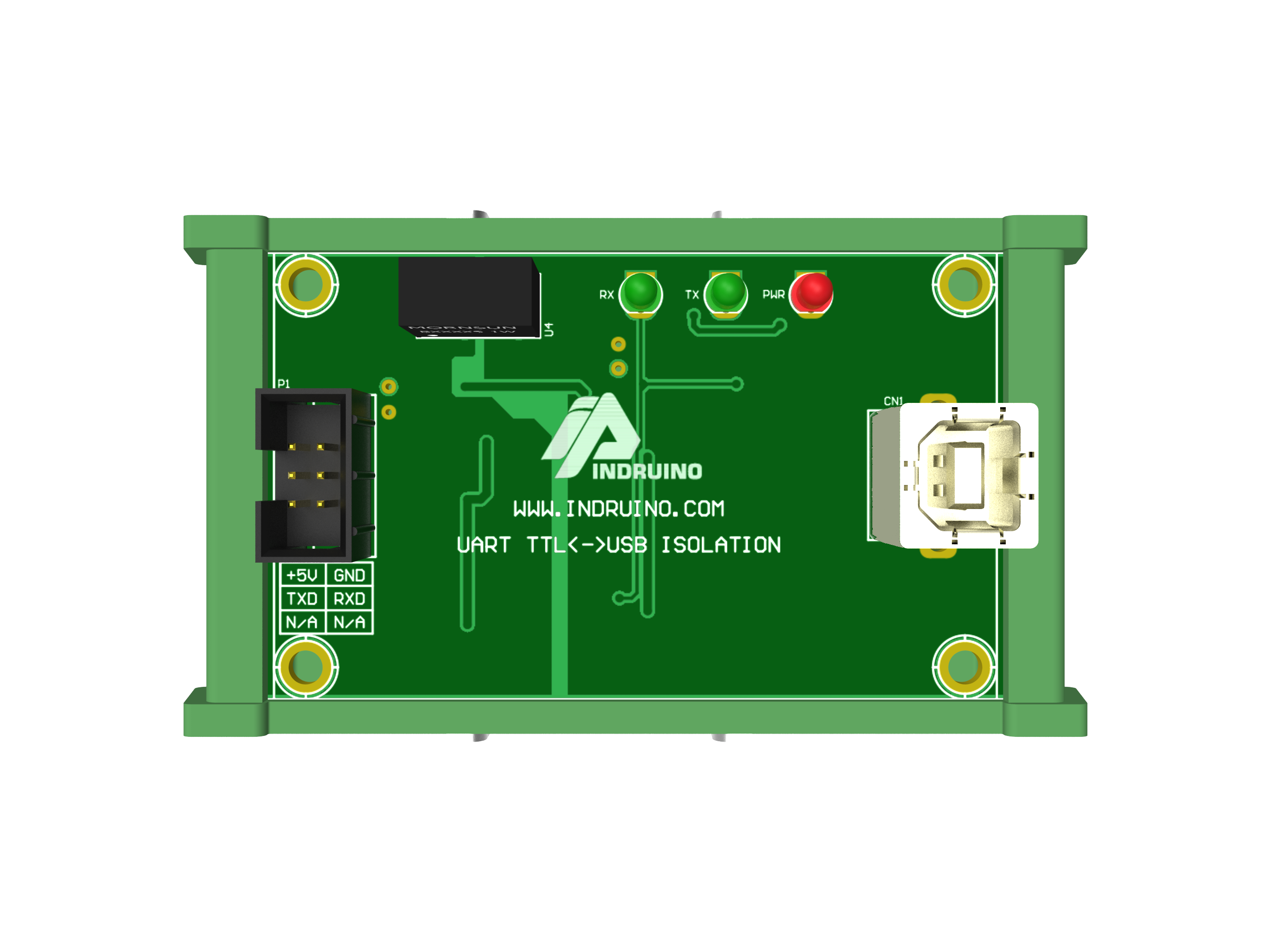

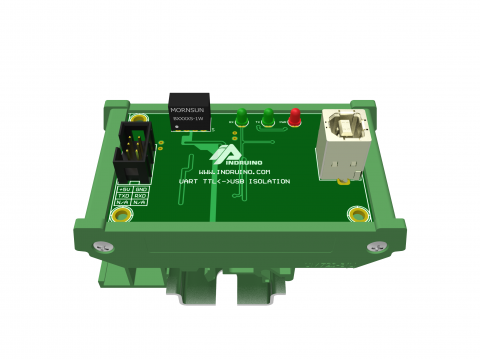

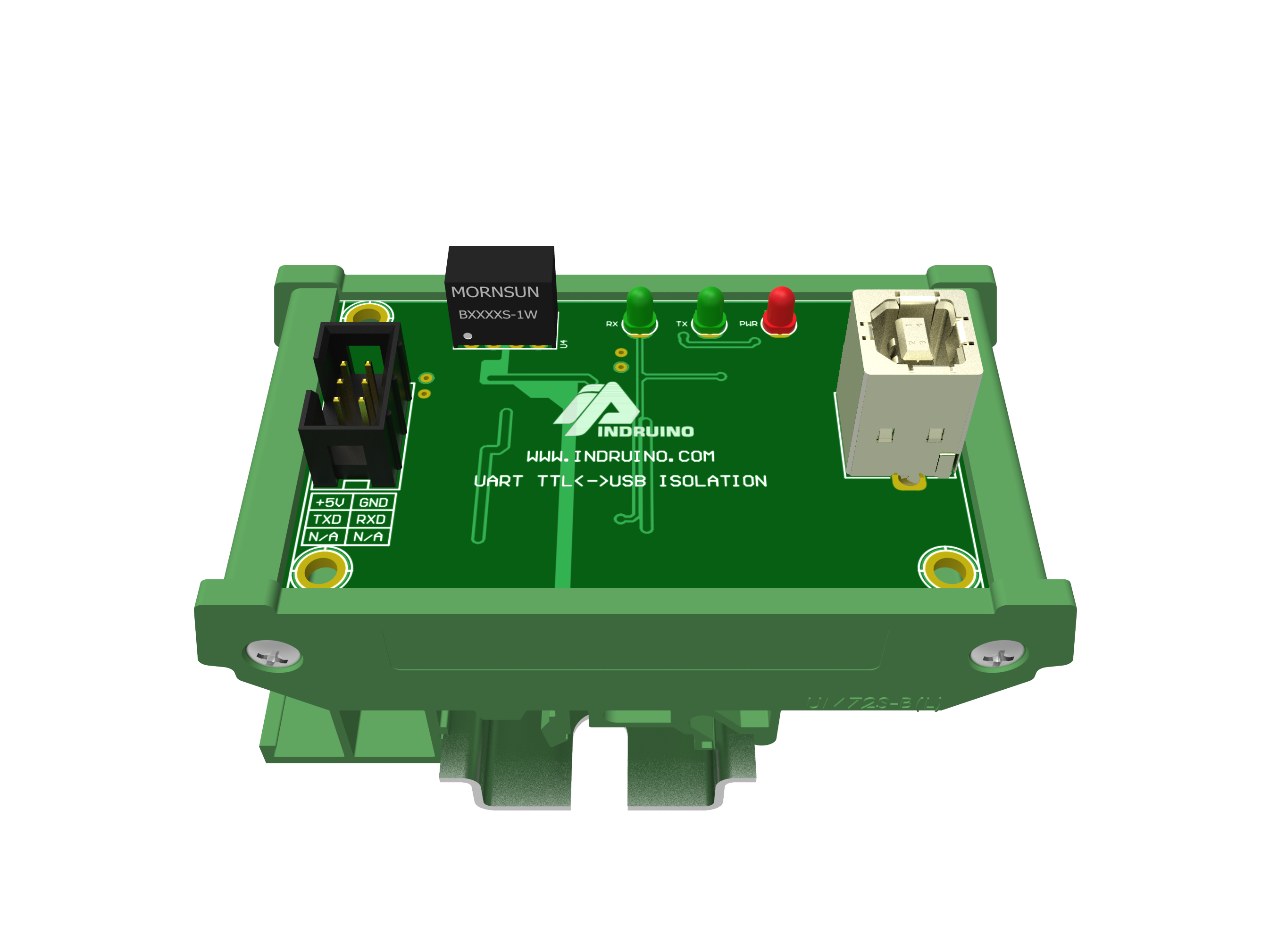

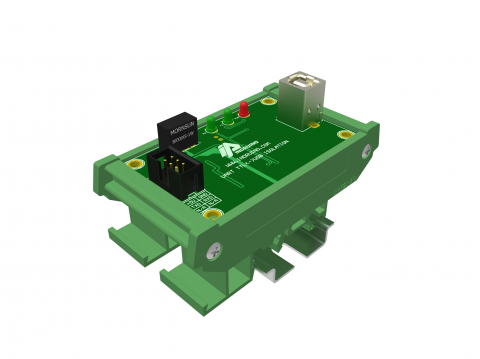

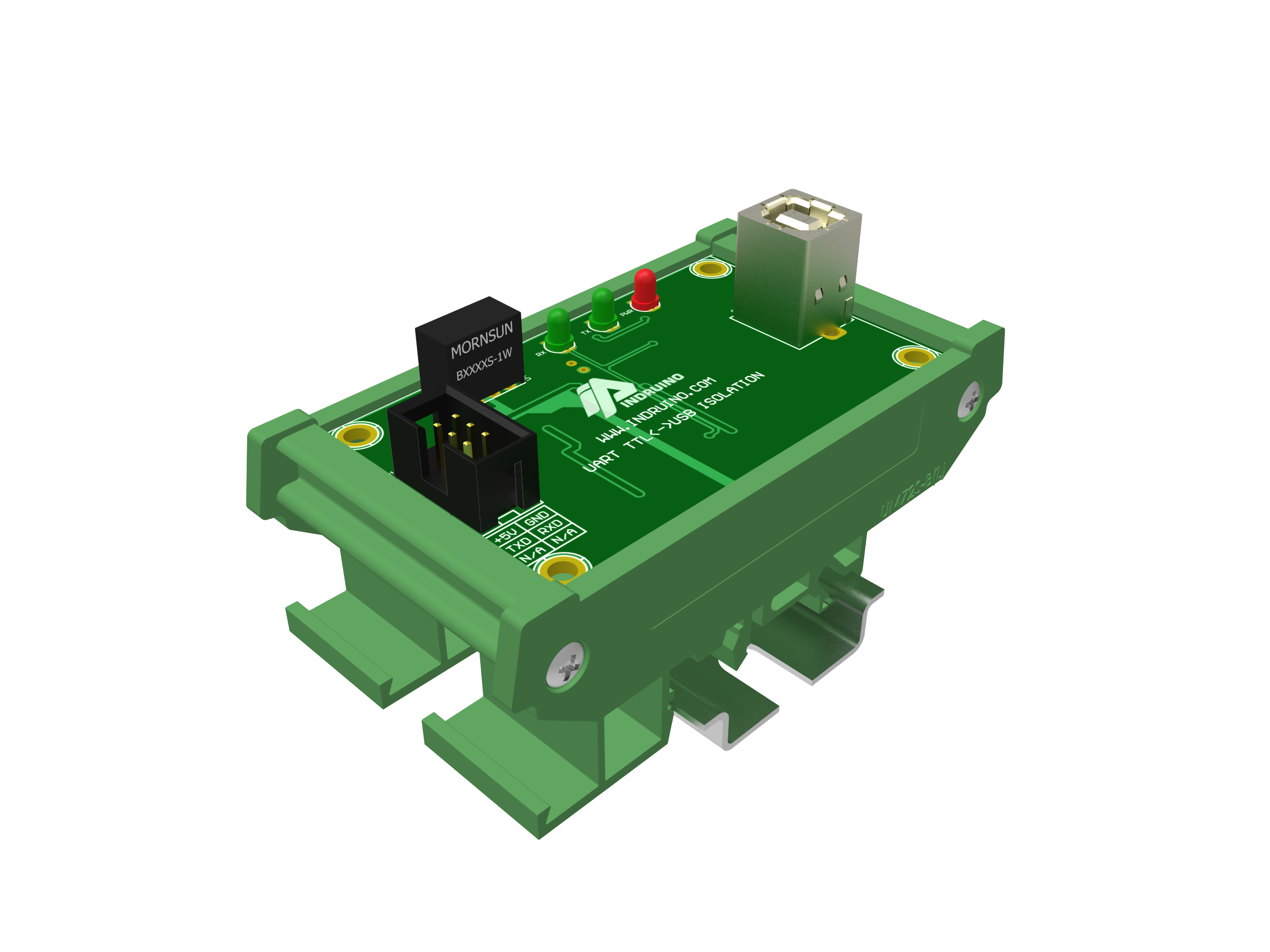

- Assembly method : Dinrail

- Dimension: 72x42x20 mm

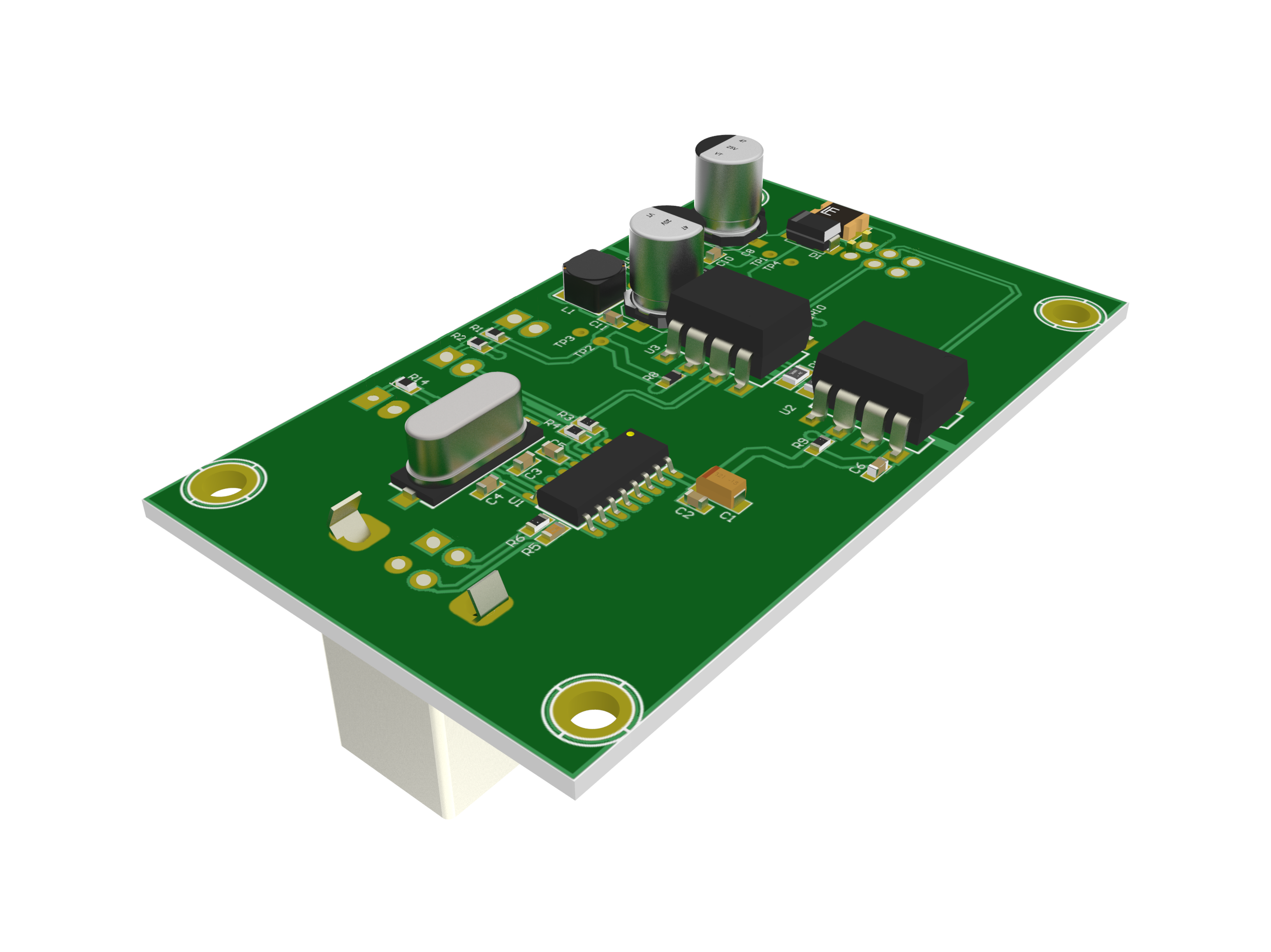

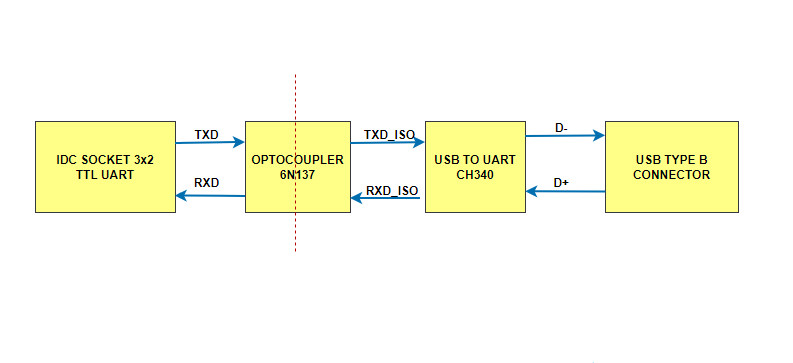

Block Diagram:

Download: https://drive.google.com/file/d/1UYELNGxnjVUVOBxcW2OLCwEA-kgVHL_f/view?usp=sharing
