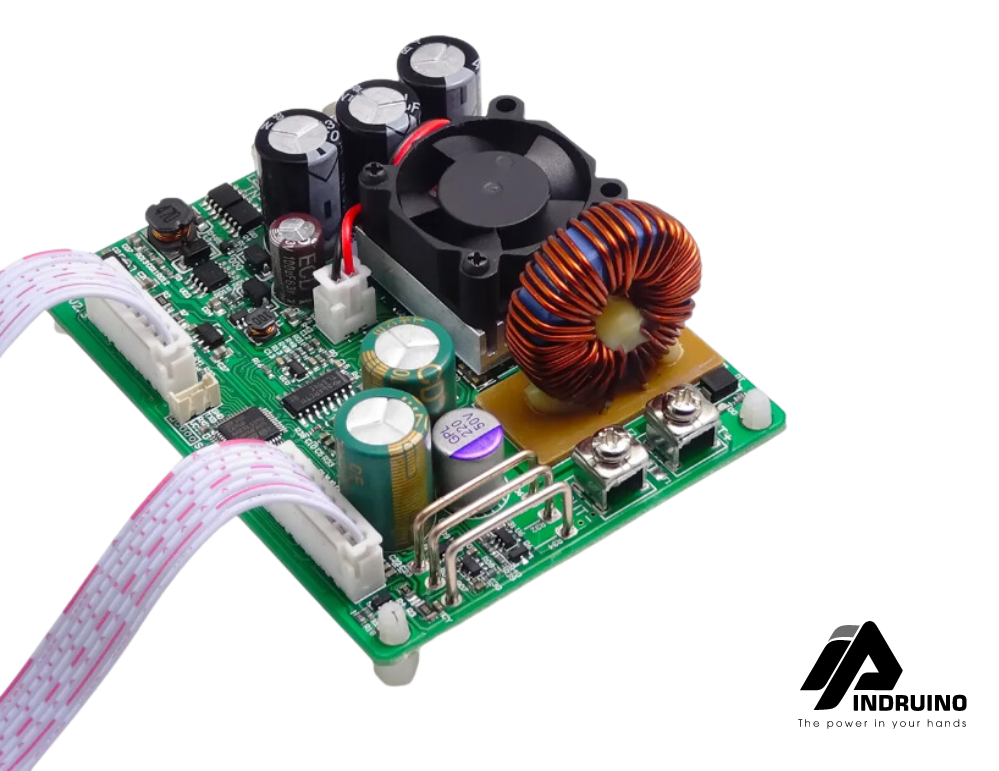

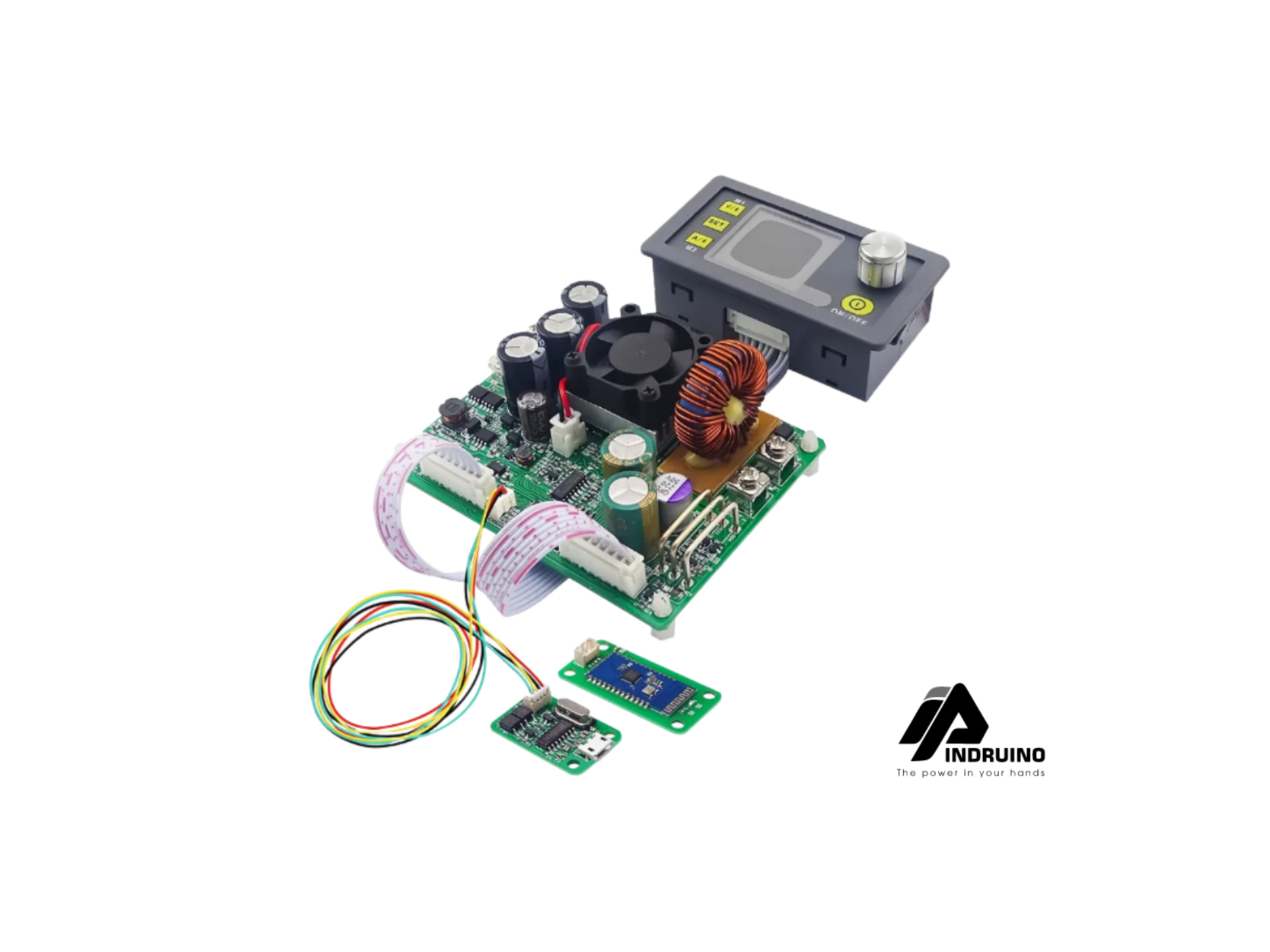

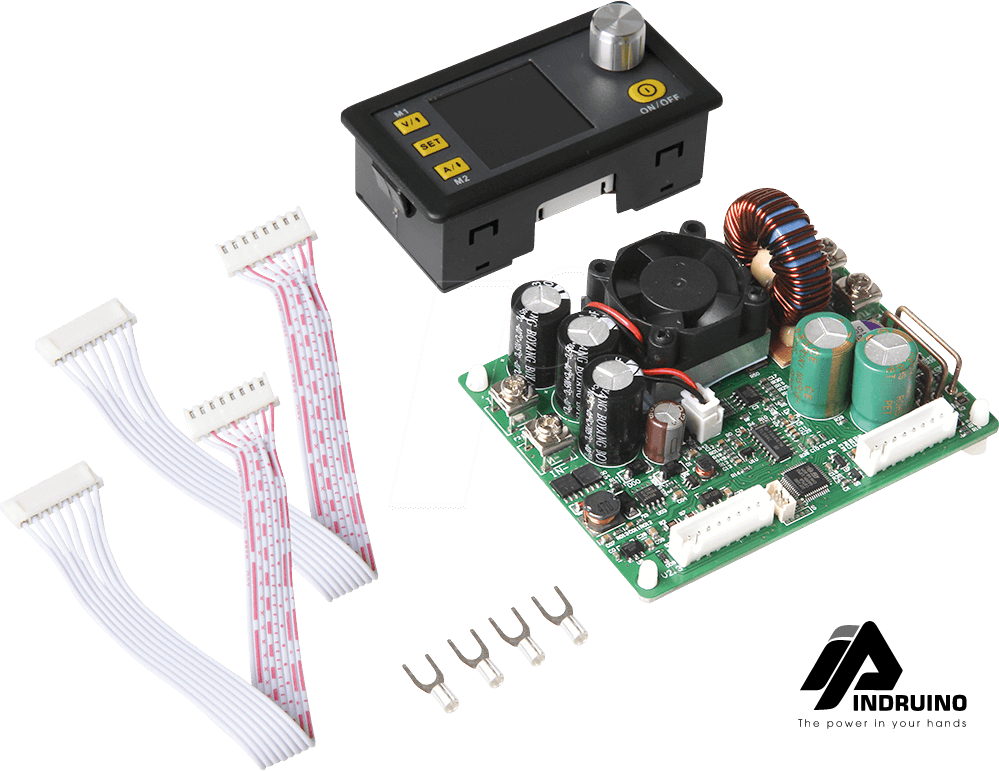

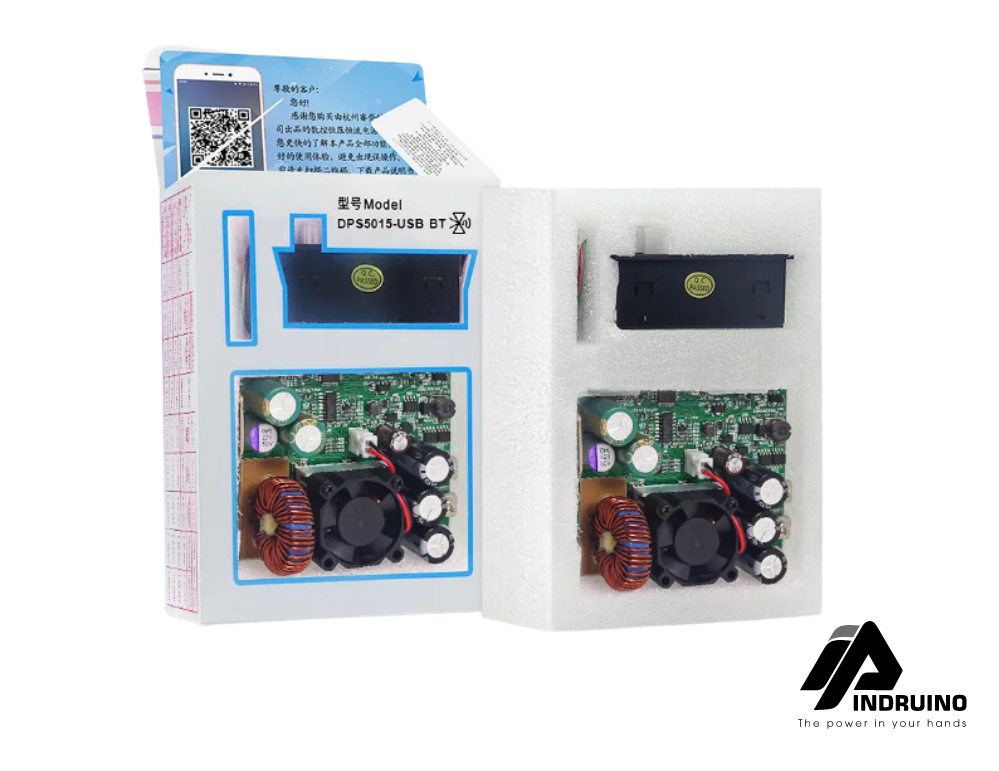

DPS5015 - USB - DIGITAL CONTROL CONSTANT VOLTAGE CONSTANT CURRENT POWER SUPPLY

Description

- This product can be used independently, is convenient and fast, with no pressure. It can also be embedded in the device and assembled with the outer casing, which is more convenient to use.

- Four-digit display, high precision, high resolution, 1.44-inch high-definition color LCD display, and digital display are clearer.

- The product has a voltage and current meter function.

- This constant voltage and constant current programmable control power supply module combines analog integration and digital control functions into one.

- The Constant Voltage Current Step-Down Programmable module has an Intelligent fan that has super heat dissipation and can better control the temperature.

- Supports Lock function prevents misoperation and makes measurement easier.

- The LCD Power Supply Voltage Converter module supports overvoltage protection, overcurrent protection, overpower protection, and reverse connection protection.

Techical Specification :

- Input voltage: 6-60V

- Output voltage: 0-50V

- Output current: 0-15A

- Output power: 0-750W

- Working temperature: -10 °C ~ 60°C

  • Made in China
  • Distributed by Indruino Technology Solutions Co., Ltd
